ZigBee 8-channel Isolated Digital Input and 8-channel Digital Output Module. Supports wireless pair-connection. The inputs on it can trigger outputs on one or multiple ZT-2042. Supports both Dry Contact and Wet Contact Input Types. Supports Open Collector Output Type. Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications.Surge and ESD Protection. Communicates over Modbus RTU. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F)

ZT-2055-IOP

ZigBee 8-channel Isolated Digital Input and 8-channel Digital Output Module. Supports wireless pair-connection. The inputs on it can trigger outputs on one or multiple ZT-2042. Supports both Dry Contact and Wet Contact Input Types. Supports Open Collector Output Type. Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications.Surge and ESD Protection. Communicates over Modbus RTU. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F)

  Price:  $369.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

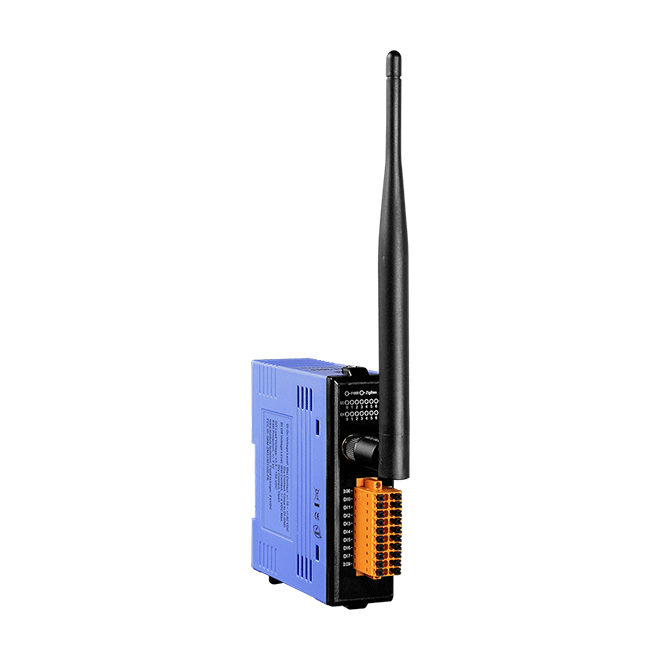

ZT-2055-OP applicationThe ZT-2055-IOP module is a ZigBee coordinator that offers 8 isolated channels for digital input and 8 isolated channels for digital output. An embedded I/O channel binding function means that there is no need to use an external controller.

The status of each channel is bound to a remote channel of the ZT-2055. The ZT-2055-IOP continually updates the status of the DO channel of the remote ZT-2055 based on its own DI channels. It also reads the status of the DI channel of the remote ZT-2055 to synchronize its own DO channels. The ZT-2055-IOP also provides external DIP switches for easy configuration, which can be used to synchronize the digital signals in any difficult wiring environment.

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m
  • 8 Channels Pair-connection of the Digital Input and Digital Output
  • Surge and ESD Protection
  • DIN-Rail Mountable

Specifications

Communication Interface
Wireless Standards
ZigBee 2007 Pro
Transmission Power
11dBm (FCC Certificated) (Max 19dBm)
2.4 GHz Antenna
5 dBi Omni directional
Transmission Range (LoS)
700 m (Typical)
Certification
Yes
Max. Slaves in ZigBee Network
255
Protocols
Supports DCON and Modbus RTU Protocols
How Swap
Rotary and DIP switch
LED Indicators
Power
1 Red LED, ZigBee Device Power Indicator
ZigBee Communications
1 Green LED, ZigBee Communication Indicator
Digital Input and Output
8 Green LEDs for Digital Input
8 Red LEDs for Digital Output
Isolation
Intra-module Isolated, Field-to-Logic
2500 VDC
EMS Protection
ESD (IEC 61000-4-2)
4 kV Contact for Power Line, Communication Line
and each Channel, 8 kV Air for Random Point
EFT (IEC 61000-4-4) 4 kV for Power
Surge
3 kV for Power Line
Power
Input Voltage Range +10VDC ~ +30 VDC
Power Consumption 2.5 W Max
Mechanical
Flammability Fire Retardant materials (UL94-V0 Level)
Dimensions L x W x H) 96 mm x 33 mm x 110 mm
Installation
DIN-Rail
Environment
Operating Temperature
-25°C ~ +75°C (-13°F ~ +167°F)
Storage Temperature
-30°C ~ +80°C (-22°F ~ +176°F)
Relativel Humidity
10 ~ 90% RH, Non-condensing

I/O Specifications

Digital Input/Counter
Input Channels
8
Input Types
Dry Contact
Source
Wet Contact Sink/Source
Wet Contact
On Voltage Level
+10 VDC ~ +50 VDC
Off Voltage Level
+4 VDC Max.
Dry Contact On Voltage Level
Closed to GND
Off Voltage Level Open
Effective Distance for Dry Contact 500 meters Max.
Impedence 10KΩ
Overvoltage Protection ±70 VDC
Digital Input/Output
Output Channels 8
Output Types Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ 50 VDC
Max. Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A (with short-circuit protection)
