ZT-2551

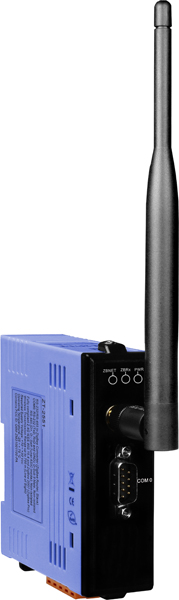

RS-485/RS-232 to ZigBee Slave Converter (ZigBee Router) Supports operating temperatures from -25 ~ +75°C (-13°F ~ +167°F), communication distance up to 700 meters (2297 feet).
Features
The ZT-2551 ZigBee wireless module is a compact ZigBee slave converter that allows RS-232 and RS-485 interfaces to be converted to a personal area ZigBee wireless network. The communication distance of this ZigBee slave converter is 700 meters, with a 2.405 GHz ~ 2.48 GHz transmission frequency range, separated into 5 MHz sectors, 16 channels and 16384 PAN IDs. The ZT-2551 ZigBee slave converter also works as a ZigBee router to extend the transmission range and improve the ZigBee wireless signal. The ZigBee slave converter is designed for high level communication protocols using small, low-power digital radio modules. The only host allowed in a ZigBee network is called “ZigBee Coordinator” like ZT-2550. A ZigBee network is able to manage 255 ZigBee routers or ZigBee slave converters like ZT-2551.
A Windows compatible GUI configuration utility is provided with ZT-2551 ZigBee slave converter. The easy-to-use utility allows users to set different configurations and ZigBee variables such as Pan ID.
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G (IEEE802.15.4/ZigBee Specifi cations)
- Fully Compliant with ZigBee Pro (ZigBee 2007)
- Wireless Transmission Range up to 700 meters
- GUI Configuration Software (Windows Version)
- RS-232/RS-485 Interface Supported
- DIN-Rail Mountable
Specifications
Models | ZT-2550 (Zigbee Coordinator) | ZT-2551 (Zigbee Router) | |
Hardware | |||
MCU Module | 8-bit microprocessor | ||
Temporary Buffer Size | 400 Bytes | ||
LED Indicators | Zigbee Net | Green | |
ZigBee RxD | Yellow | ||
Power | Red | ||
Communication Interface | |||
COM 0 | RS-232 | RS-232 (TxD, RxD and GND); | |
D-Sub 9 Female, Non-isolated | D-Sub 9 Male, Non-isolated | ||
RS-485 | RS-485 (DATA+, DATA-; internal ASIC self-tuner); Non-isolated | ||
Data Format | N81/O71/E71/N82/O81/E81 | ||
Power | |||
Protection | Power reverse polarity protection | ||
EMS Protection | ESD, Surge, EFT | ||
Required Supply Voltage | +10 VDC ~ +30 VDC | ||
Power Consumption | 1 W | ||
Mechanical | |||
Casing | Plastic | ||
Flammability | UL 94V-0 fi re-retardant materials | ||
Dimensions (W x L x H) | 33 mm x 78 mm x 107 mm | ||
Installation | DIN-Rail | ||
Environment | |||
Operating Temperature | -25 ~ +75°C | ||
Storage Temperature | -40 ~ +80°C | ||
Relative Humidity | 5 ~ 95% RH, Non-condensing | ||
Wireless | |||
RF Channel | 16 |
||
RF Transmit Power | 11 dBm | ||
Antenna (2.4 GHz) | 5 dBi Omni-Directional antenna | ||
Transmit Range (LOS) | 700 m (Typical) | ||
Max. Slaves Supported | 255 |
||
EMI Certification | CE/FCC, FCC ID |
