Wireless 8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module.
Supports DCON and Modbus RTU Protocols

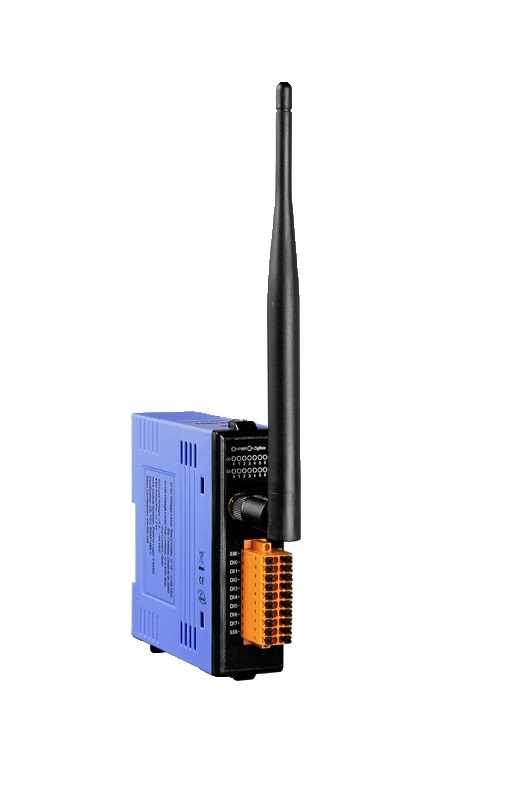

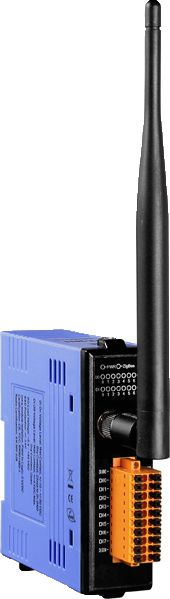

ZT-2055

Wireless 8-channel Isolated Digital Input and 8-channel Isolated Digital Output Module. Supports DCON and Modbus RTU Protocols

  Price:  $349.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

ZT-2055 applicationThe ZT-2055 offers 8 isolated channels for digital input and 8 isolated channels for digital output. Either sink-type or source-type digital input can be selected via wire connections. All digital input channels are also able to be used as 16-bit counters. The ZT-2055 supports source-type output with short circuit protection. There are options to enable both power-on and safe values. The ZT-2055 has 16 LED indicators to display the channel status, and has 4 kV ESD protection and 2500 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches.


  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
  • Wireless Transmission Range up to 700 m
  • GUI Configuration Software (Windows Version)
  • 8 Digital Input Channels and 8 Digital Output Channels
  • All Digital Input Channels can be used as 16-bit Counters
  • Sink-type Digital Output Channels with Overload Protection
  • Surge and ESD Protection
  • Configurable Power-on Value Settings
  • Configurable Safe Value Settingsv
  • DIN-Rail Mountable

Specifications

Communication Interface
Wireless Standards
ZigBee 2007 Pro
Transmission Power
11dBm (FCC Certificated) (Max 19dBm)
2.4 GHz Antenna
5 dBi Omni directional
Transmission Range (LoS)
700 m (Typical)
Certification
Yes
Max. Slaves in ZigBee Network
255
Protocols
Supports DCON and Modbus RTU Protocols
How Swap
Rotary and DIP switch
LED Indicators
Power
1 LED, Red
ZigBee Communications
1 LED, Green
Digital Input and Output
8 Green LEDs for Digital Input
8 Red LEDs for Digital Output
Isolation
Intra-module Isolated, Field-to-Logic
2500 VDC
EMS Protection
ESD (IEC 61000-4-2)
4 kV Contact for Power Line, Communication Line and each Channel, 8 kV Air for Random Point
EFT (IEC 61000-4-4)
4 kV for Power
Power
Input Voltage Range +10VDC ~ +30 VDC
Power Consumption 2.5 W Max
Surge
3kV for Power
Mechanical
Flammability Fire Retardant materials (UL94-V0 Level)
Dimensions (W x L x H) 33 mm x 96 mm x 110 mm
Installation
DIN-Rail
Environment
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Relativel Humidity
10 ~ 90% RH, Non-condensing

I/O Specifications

Digital Input/Counter
Input Channels
8
Input Types
Dry Contact
Source
Wet Contact Sink/Source
Wet Contact
On Voltage Level
+10 VDC ~ +50 VDC
Off Voltage Level
+4 VDC Max.
Dry Contact On Voltage Level
Closed to GND
Off Voltage Level Open
Effective Distance for Dry Contact 500 meters Max.
Counter
Max Count
16-bit (65535)
Max. Input Frequency 100 Hz
Min. Pulse Width 5 ms
Impedence 10KΩ
Overvoltage Protection ±70 VDC
Digital Input/Output
Output Channels 8
Output Types Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +3.5 ~ 50 VDC
Max. Load Current 650 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A (with short-circuit protection)
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
