PoE Ethernet Modbus TCP I/O Modules

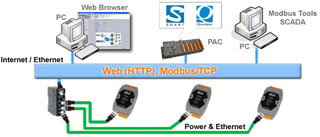

PET-7000 Series Modbus TCP modules can be Powered over Ethernet (PoE) and are configurable and accessible over a web browser. The PET-7000 series modules can be powered by an IEEE802.3af compliant PoE switch. Both Ethernet and power can be carried by an Ethernet cable eliminating the need for additional wiring and power supply. They come with our FREE EZ Data Logger Software for data collection and monitoring applications.
Show
items per page
Sort by
Displaying 1 - 48 of 48
Compare 🢓
0
PET-7002
Modbus TCP based Ethernet I/O module with Power-over-Ethernet function, 3-channel Analog Inputs, 6-channel Digital Inputs/Counter and 3-channel Relay Outputs, Supports Current Input and Voltage Input types: +/- 150 mV,+/- 500 mV, +/- 1V, +/- 5 V, +/-10 V + 0 mA ~ + 20 mA, +/- 20 mA, 4 ~ 20 mA (jumper selectable). Communicable over Modbus TCP and Modbus UDP. Supports operating temperatures between -25°C to +75°C (-13°F ~ 167°F) and has a din rail mount. More....
PET-7005
Modbus TCP based Ethernet I/O module with Power-over-Ethernet (PoE) function, 8-channel Thermistor Input and 4-channel Isolated Digital Output. Supports Thermistor sensor types of Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined. Communicates over Modbus TCP and Modbus UDP Protocol. Supports operating temperatures between -25°C to 75°C (-13°F ~ +167°F) and has a din rail mount. More....
PET-7017-10
10/20-channel Voltage Input, Current Input, & Analog Input Module with High Voltage Protection PoE Module, communicable over Modbus TCP and Modbus UDP. Has operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F). More....
PET-7018Z/S
10-channel Thermocouple Input, Voltage Input, Analog Input (Current Input) with High Voltage Protection and 6-channel Isolated Digital Output PoE Data Acquisition Module, communicable and Powered over Ethernet and Modbus TCP Protocol. Has operating temperatures range -25°C ~ +75°C (-13°F ~ +167°F) More....
PET-7018Z/S2
10-channel Thermocouple Input, Voltage Input, Analog Input (Current Input) with High Voltage Protection and 6-channel Isolated Digital Output PoE Data Acquisition Module, communicable and Powered over Ethernet and Modbus TCP Protocol. Has operating temperatures range -25°C ~ +75°C (-13°F ~ +167°F) More....
PET-7019Z/S
10-channel Thermocouple Input Module, Current Input and Voltage Input with High Voltage Protection and 6-channel Isolated Digital Output PoE Data Acquisition Module with Surge Protection. Communicable over Ethernet and Modbus TCP Protocol. Includes a DB-1820 Daughter Board. More....
PET-7019Z/S2
PoE Ethernet I/O Module with 10-ch universal AI, 6-ch DO with DN-1822 Daughter Board and a 1.8 m Cable with PoE (RoHS). Communicable over Ethernet and Modbus TCP Protocol More....
PET-7026-48 (w/ 48 VDC Power Output)
6-channel Data Acquisition Voltage Input, Current Input, Analog Input, 2-channel Analog Output, 2-channel Digital Input (32-bit Counters) And 2-channel Digital Output PoE Current Module, communicable and Powered over Ethernet and Modbus TCP Protocol. More....
PET-7051-48V
16-channel Isolation Digital Input (32-bit Counter) Power Over Ethernet I/O Data Acquisition module, communicable and Powered over Ethernet and Modbus TCP Protocol. More....
PET-7202
Modbus TCP based PoE Ethernet I/O module with 2 Ethernet ports, 3-channel Analog Input, 6-channel Digital Input/Counter, and 3-channel Relay Output. Supports Current Input and Voltage Input types: +/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V +0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA (jumper selectable). Supports Modbus TCP and Modbus UDP Protocols. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F). Can be daisy-chained and din rail mounted. More....
PET-7217-10
Modbus TCP Based Ethernet I/O Module with 2 Ethernet ports for daisy-chain networking, with 10/20-channel Analog Input (Current Input). Input Types are +/-150 mV, +/-500 mV, +/-1V, +/-5V, +/-10V, +/-20 mA ,0 ~ 20 mA, 4 ~ 20 mA(Jumper Selectable). Communicable over Modbus TCP and Modbus UDP, Supports operating temperatures of -25°C ~ +75°C (-13°F ~ 167°F) and has a din rail mount. More....
PET-7219Z/S
PoE Ethernet I/O Module with 2-port Ethernet Switch with 10-ch universal Analog Input, 5-ch Digital Output with DB-1820 Daughter Board. Support for both Modbus TCP and Modbus UDP Protocols. Built-in Web Server. Wide operating temperature range of -25°C ~ +75°C (-13°F ~ +167°F) More....
PET-7224
PoE Ethernet I/O Module with 2-port Ethernet Switch, with 4-channels Analog Output (Current Output), 5-channels Digital Input (32-bit Counter) and 5-channels Digital Output. Support for both Modbus TCP and Modbus UDP Protocols. Built-in Web Server. Wide Operating Temperature Range: -25°C ~ +75°C (-13°F ~ +167°F). More....
PET-7226
PoE Ethernet I/O Module with 2-port Ethernet Switch, with 6-ch Analog Input (Current Input), 2-ch Analog Output (Current Output), 2-ch Digital Input (32-bit Counter), 2-ch Digital Output. Support for both Modbus TCP and Modbus UDP Protocols. Built-in Web Server. Wide Operating Temperature Range: -25°C ~ +75°C (-13°F ~ +167°F) More....
PET-7228
PoE Ethernet I/O Module with 2-port Ethernet Switch and 8-channels Analog Outputs, Support for both Modbus TCP and Modbus UDP Protocols. Current and Voltage Output Types Include: +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA. Operating Temperatures of -25°C to 75°C (-13°F ~ +167°F). More....
