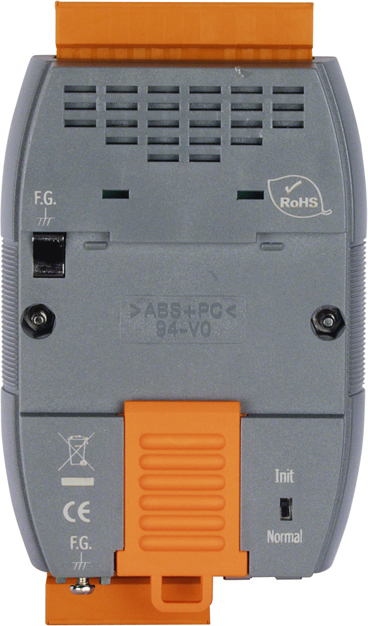

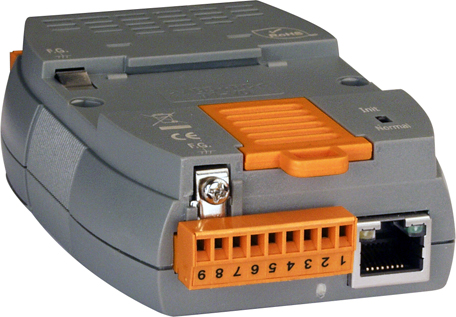

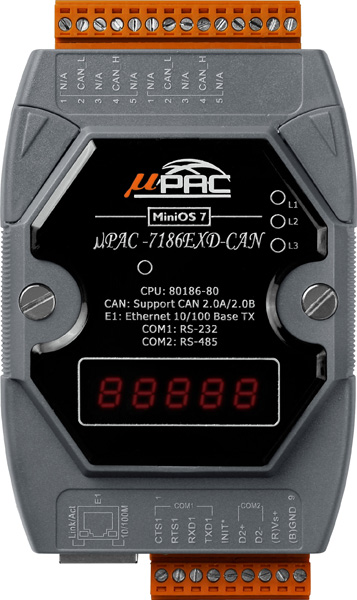

CAN bus Series Programmable Automation Controller with 80 Mhz CPU and MiniOS7 Operating System


CAN bus Series Programmable Automation Controller with 80 Mhz CPU and MiniOS7 Operating System

  Price:  $609.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.


Ethernet Protocol has become the de-facto standard for Local Area Networks. Via Internet, connectivity is occurring everywhere from home appliances to vending machines, to testing equipment to UPS. Using Ethernet for networks in industrial areas is appealing because the required cabling is already installed. The μPAC-7186EXD-CAN PACs (Programmable Automation Controller) are powered by 80188-80 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. All of them provide several communication interfaces to adapt to various applications through a CAN port, RS-232 port, RS-485 port and an Ethernet interface. Users can program their applications flexibly with C/C++ language utilizing the built-in MiniOS7 operation system. The μPAC-7186EXD-CAN series PACs have different I/O types so users can match their requirements. μPAC-7186EXD-CAN has no I/O channel. It is useful for transfering commands from differential communication interfaces. The μPAC-7186EXD-CAN series PACs are economic and convenient solutions for diversification CAN applications.

  • 1000 VDC voltage protection on CAN side.
  • Compatible with CAN specification 2.0 parts A and B.
  • Programmable Transfer Rate up to 1 Mbps.
  • Jumper select 120Ω Terminator Resistor for CAN Channel
  • Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, and ARP
  • 10/100BASE-T NE2000 Compatible Ethernet Controller
  • Upgradable OS image
  • Remote Configuration
  • 64-bit Hardware with a Unique Serial Number Inside
  • COM Driver Supports Interrupt & 1K QUEUE Input & Output Buffer
  • COM ports: COM1 & COM2
  • Built-in RTC, NVRAM, and EEPROM
  • Built-in Self-Tuner ASIC controller on RS-485 port
  • 7-segment LED display.
  • Built-in ICP DAS’s MiniOS7
  • Program download port: COM1 or Ethernet Port (Available soon)

  • Applications:
    • Process Monitoring and Control
    • I/O Monitoring
    • High Speed Data Acquisition Systems
    • Communication Switching
    • Factory Automation
    • Laboratory Automation
  • TCP/IP Library
    • The Software Library Provides TCP/IP Protocols & a Web Server.
    • Support the following protocols
      • TCP, Transmission Control Protocol: Transport layer with connections, flow control and error correction
      • UDP, User Datagram Protocol: Simple connectionless transport layer
      • IP, Internet Protocol: The Network Layer
      • ICMP, Internet Control Message Protocol: Part of IP for Practical Purposes
      • ARP, Address Resolution Protocol: Retrieves a Host Network Controller’s Hardware Address, given the Host’s Internet address
      • Reverse Address Resolution Protocol: Retrieves a Host’s Internet address, given the host’s network controller’s Address


CPU Am188TMES: 80M Hz or compatible
Flash   512K bytes, Erase unit is one sector (64K bytes); 100,000 erase/write cycles
SRAM    512K bytes
EERROM 16K bytes (64 blocks, each block has 256 bytes); Data retention > 100 years; 1,000,000 erase/write cycles.
NVSRAM 31 bytes, battery backup, data valid up to 10 years
Real Time Clock Year-2000 compliance; seconds, minutes, hours, date of the month, year, valid up from 1980 to 2079

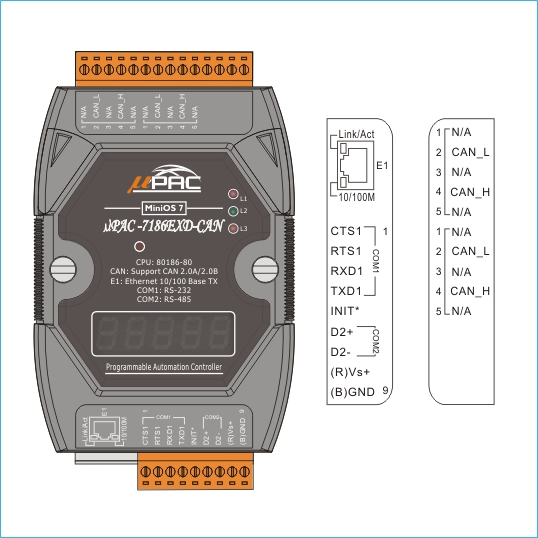

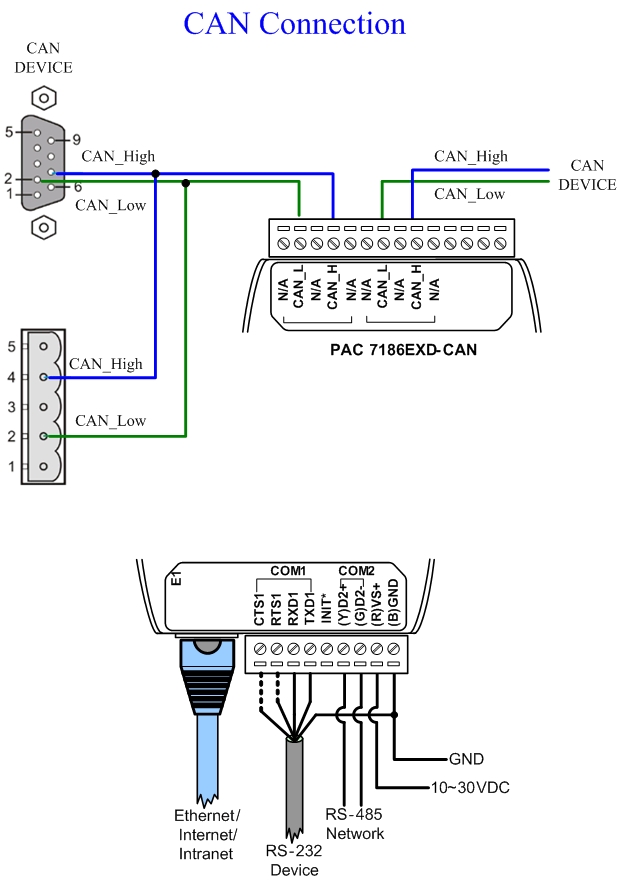

CAN Signal Support CAN_H, CAN_L
Connecter 5-Pin Screw Terminal Connecter
DI Level: Dry Contact Logical level 0: closed to GND / Logical level 1: open
DI Level: Wet Contact Logical level 0: +1V / Logical level 1: +3.5V to +30V
DO Level Open collector to 30V Max. / Output current: 100mA
Power Consumption 3W
COM1 RS-485: D1+, D1-, self-tuner ASIC inside
COM2 RS-485: D2+, D2-, Self-tuner inside
Communication Speed 115200 max
CAN Controller Phillip SJA1000T CAN Controller
CAN Transceiver Phillip 82C250 CAN Transceiver
LED Directors L1, L2, L3
Display 7-segment LED: 5digit
Clock Frequency 16MHz
Transmission Speed 1MBPS Max.
Voltage Protection 1000 Vdc on CAN side
Operating Temp -25°C to 75°C
Storage Temp -30°C to 85°C
Humidity 5 ~ 95%
Dimensions 123 mm x 72 mm x 35 mm
