Unmanaged 5-Port Industrial Ethernet Switch with Din Rail Mount. Each port supports 10/100 Mbps speed auto negotiation and plug-and-play. Durable for harsh industrial environments and compact for use in control panels. Supports operating temperature -40 ~ +75°C (-40F ~ 167F).

NS-205

Unmanaged 5-Port Industrial Ethernet Switch with Din Rail Mount. Each port supports 10/100 Mbps speed auto negotiation and plug-and-play. Durable for harsh industrial environments and compact for use in control panels. Supports operating temperature -40 ~ +75°C (-40F ~ 167F).

  Price:  $119.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

NS-205 size

NS-205 is light and compact, din rail mountable and can easily fit in tight spaces in control panels. With the width of 1.3 inch (33 mm), it can save users a lot of space.

The NS-205 is a compact, robust and durable 5-port industrial Ethernet switch. It has 5 Ethernet switching ports that support 10/100 Base-TX, with 10/100M auto-negotiation and an auto MDI/MDI-X function. It is very easy to use with plug-and-play. Through its 5 ports it can connect with 5 workstations and automatically switch the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LED indicators for each port, which makes it easy to trouble-shoot. Port connectors are shielded RJ-45. It contains "soft start" function with overload protection and high-low voltage protection.

Compact and Durable to Work in Harsh Industrial Environments

The din rail mount allows it to be mounted on a din rail in control panels. The NS-205 is designed to operate in a wide range of temperatures to work in harsh industrial environment.

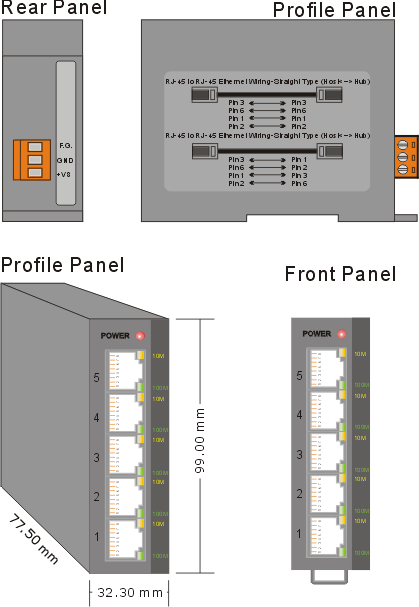

NS-205 Appearance

  • 5 Unmanaged 10/100Mbps Fast Ethernet Ports
  • EASY-TO-USE: Automatic MDI/MDI-X Crossover for Plug-and-Play
  • FAST SPEED: Each Port Supports 10/100 Mbps Speed Auto Negotiation
  • Store-and-Forward Architecture for Fast Processing
  • ROBUST AND DURABLE: Can Be Used in Extreme Industrial Environments.
  • Supports a Wide Range of Operating Temperatures from -40C ~ +75C (-40F ~ 167F).
  • EASY TO MOUNT: Din Rail Mountable - Can Easily Fit in Control Panels.
  • MORE PROTECTION: Reverse Polarity Protection, Frame Ground for EMS Protection
  • Full Duplex IEEE 802.3x and Half Duplex Back Pressure Flow Control
  • Integrated Look-up Engine with Dedicated 1024 Unicast MAC Addresses.
  • VERY LOW FAILURE RATE: Mean Time Between Failures (MTBF) = 438,000 hours (Temperature is 25 °)
  • Supports +10 ~ +30 VDC Power Input
CE FCC RoHS WEEE

Specifications

Technology
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward, wire speed switching
MAC Addresses 1024
Memory Bandwidth 1.4 Gbps
Frame Buffer Memory 256 Kbit
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports 5 ports 10/100 BaseTX auto negotiation speed, F/H duplex mode,
and auto MDI/MDI-X connection
LED Indicators Power, 10/100M, Link/Act
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes
Cable Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Power
Input Voltage Range +10 ~ +30VDC (Non-isolation)
Power consumption 0.1A@24VDC, +/- 5% arrowed with 10M Full duplex.
0.09A@24VDC, +/- 5% arrowed with 100M Full duplex
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 3-Pin Removable Terminal Block
Mechanical
Casing Plastic
Flammability UL 94V-0
Dimensions 33 mm x 78 mm x 107 mm (W x L x H)
Installation DIN-Rail
Environmental
Operating Temperature -40 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Ambient Relative Humidity 10% to 90% HR, non-condensing

References and Support

Customer Reviews (5)

May 26, 2016
Brandon
5/5

Good switch for in a cabinet, din mount, modestly priced! ICP DAS is very friendly and fast with their service. Will do business with them again in the future!


October 2, 2015
Rodney
5/5

Works great! I favor it's compactness.


November 30, -0001
Jerry
5/5

this switch works well for me in my control panels that are installed in desert and snow environments. They mount on the din rail in the panels.


November 30, -0001
Julia
5/5

It was everything it said it was. Worked like a champ. I would definitely buy it again if I needed it.


November 30, -0001
Tony
5/5

This switch has lasted in my control panel that at one time had snow in it. The rest of my equipment in the panel was from other vendors and is no longer working.
