CAN Ethernet Gateway enables CAN networks to integrate with the Internet / Ethernet. Supports operating temperatures between -25 to 75°C.

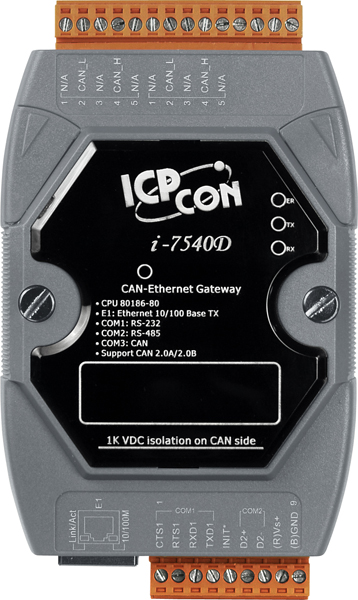

I-7540D

CAN Ethernet Gateway enables CAN networks to integrate with the Internet / Ethernet. Supports operating temperatures between -25 to 75°C.

  Price:  $699.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The VxComm technology can be used to simulate COM/CAN ports of the I-7540D to become a COM port of a PC . With the help of VxComm driver, users can access the remote COM/CAN ports of the I-7540 just as they would access the PC's COM port. The block diagram of data processes in I-7540D is given as follows:

Internet communications using TCP/IP is increasing in the industrial sector. Using Ethernet for industrial networks is a good idea because the required cabling is already installed. The CAN-Ethernet Gateway from ICP DAS is a solution that enables CAN networks to be coupled together over the Internet via Ethernet, creating an environment where monitoring and control is possible. The CAN-Ethernet Gateway controls networked communications and creates a transparent CAN-based application interface.

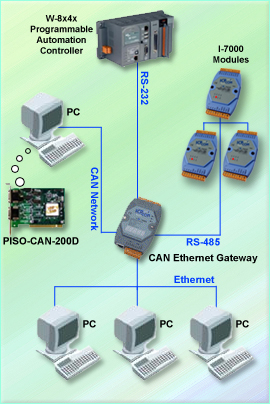

The device supports a transparent, protocol-independent transfer of the CAN messages, thus allowing its implementation into a wide range of possible applications. Furthermore, the CAN-Ethernet Gateway can be used with various higher layer CAN protocols (e.g. CANopen, DeviceNet or other proprietary protocols). The following figure shows the application architecture for the CAN-Ethernet Gateway .

I-7540D can also be used as an Ethernet to CAN/RS-232/485 Device Server. The Device Server is an appliance that makes any device network enabled with a serial communication port. By virtue of its independent operating system, protocol independence, small size and flexibility, Device servers are able to meet the demand of virtually any network-enabled application. Most devices don't have network ports - I-7540D allows those devices to become connected to the network.


i7540 application 1i7540 application 2


Applications

i7540 application
  • Factory Automation
  • Building Automation
  • Home Automation
  • Control System
  • Monitor System
  • Vehicle Automation

Features

  • 80186-80 Embedded CPU, or compatible
  • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
  • 10/100 Base-TX Ethernet Controller
  • Reloadable Operating Software
  • Message transmitted by using TCP/IP protocol
  • Diagnostics
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • Support one RS-232 port, one RS-485 port and one CAN port
  • 2500Vrms photo-isolation protection on CAN side.
  • Jumper select 120Ω terminator resistor for CAN channel
  • Phillip 82C 250/251CAN Transceiver
  • Support both CAN specification 2.0A and 2.0B.
  • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
  • Max transmission distance of CAN over 1000m (follow CAN specification)
  • Built-in self-tuner ASIC controller on RS-485 port
  • 7-segment LED display.
  • Software configurable CAN and RS-232 communication parameters
  • Firmware updated from COM1 or Ethernet port
  • Support Web Configuration
  • Support maximum 25 Ethernet clients connection
  • Support for Virtual COM technology

Supports OPC Server

Utility

  • IP, Gateway, Mask configuration
  • CAN bus Baud rate configuration
  • CAN BTR0 and BTR1 configuration
  • CAN acceptance filter configuration
  • CAN 2.0A or 2.0B specific selection
  • Error code Responded selection
  • Easy test to transmit/receive CAN messages

Virtual CAN

There are various communication interfaces among the CAN devices like PCI CAN board, Ethernet series, and RS-232 series CAN module. According to the different purposes of users’ projects, the users might need to choose different CAN products. Because of this situation, the programmer should develop different communication programs to handle different CAN devices. For example, the user could develop a “Socket Client” to communicate with I-7540. When using the I-7530, the users need “UART” techniques to communicate. Nowadays, ICP DAS develops the Virtual CAN technique. The Virtual CAN driver is an excellent tool for users. It transforms whole CAN devices into Virtual CAN ports. Then it generates Virtual CAN ports like “VxCAN 1” or “VxCAN 2”. The users could then send and receive CAN message by appointing a Virtual CAN port number. The users don't need to figure out what kind of CAN device is used.

Virtual CAN Structure

Software Download

Performance Test

The test is the performance which transfer 8 bytes data frame from CAN to Ethernet (one TCP client).
CAN setting
Transfer frames
Transfer time(ms)
Ethernet setting
Receive frames
Receive time (ms)
The max frames/sec
Data<8 byes/frme
ASCII command length
2.0A 1Mbps
1,000,000
619,831
100M
1,000,000
619,871
1613
>=1613
22 B
2.0B 1Mbps
1,000,000
662,432
100M
1,000,000
662,513
1509
>=1509
27 B


The test is the performance which transfer 8 bytes data frame from Ethernet (one TCP client) to CAN.
CAN setting
Transfer frames
Transfer time (ms)
Ethernet setting
Receive frames
Receive time (ms)
The max frames/sec
Data<8 byes/frame
ASCII command length
2.0A 1Mbps
1,000,000
535,280
100M
1,000,000
535,618
1867
>=1867
22 B
2.0B 1Mbps
1,000,000
563,170
100M
1,000,000
563,395
1774
>=1774
27 B

Specifications

Model
I-7540D
CPU
RDC186, 80MHz or compatible
Flash
512K bytes
SRAM
512K bytes
EERROM
16K bytes
Ethernet port
10/100 Base-T
Real Time Clock
Year-2000 compliance; seconds, minutes, hours, date of the month, year, valid up from 1980 to 2079

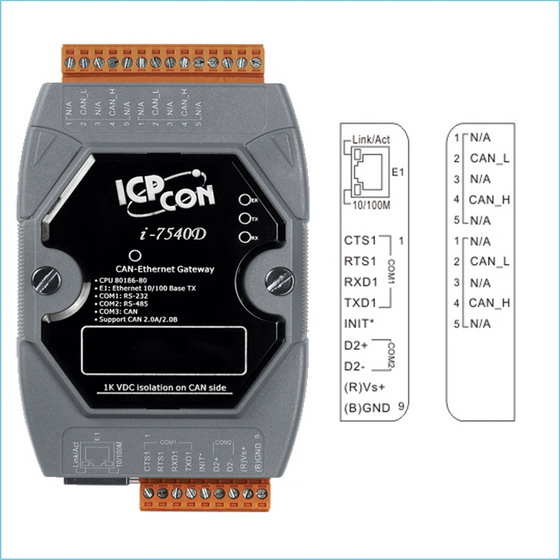

CAN Signal Support
CAN_H, CAN_L
Connecter
5-pin screw terminal connecter
Power Consumption
3W
COM1
RS-232: TXD, RXD, RTS, CTS, GND
COM2
RS-485: D2+, D2-
COM Speed
115200 bps max
CAN Controller
Phillip SJA1000T CAN Controller
CAN Transceiver
Phillip 82C250 CAN Transceiver
CAN bus Speed
1Mbps Max
LED Directors
ER, TX, RX
Display
7-segment LED: 5 digits
Isolated
2500Vrms on CAN side
Reauired Supply Voltage
+10 ~ +30VDC
Operating Temp
-25°C to 75°C
Storage Temp
-30°C to 85°C
Himidity
5 ~ 95%
Dimensions
123mm x 64.5mm x 19.6mm
