Touch HMI 2.8 inch high resolution  PoE (Power over Ethernet) device with RS-485 (including self-tuner). 120 Mhz CPU, 1024 KB Internal Flash, 256KB Internal SDRAM, white color face plate.  Communicates over Modbus TCP.  Has operating temperature range of -20°C ~ +70°C (-4°F ~ +158°F)

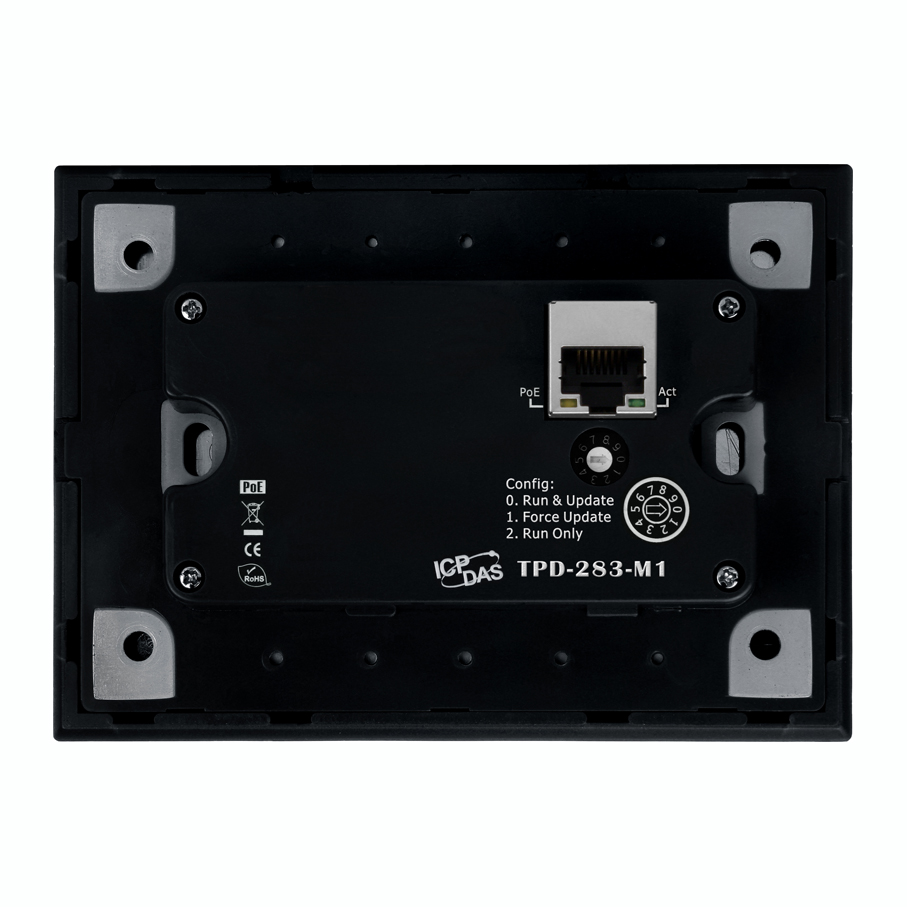

TPD-283-M1

Touch HMI 2.8 inch high resolution PoE (Power over Ethernet) device with RS-485 (including self-tuner). 120 Mhz CPU, 1024 KB Internal Flash, 256KB Internal SDRAM, white color face plate. Communicates over Modbus TCP. Has operating temperature range of -20°C ~ +70°C (-4°F ~ +158°F)

  Price:  $299.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

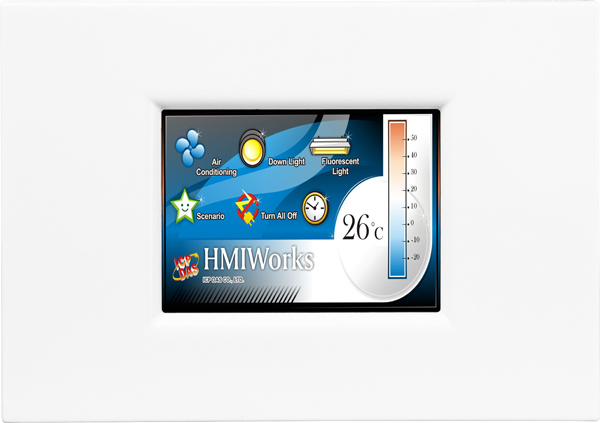

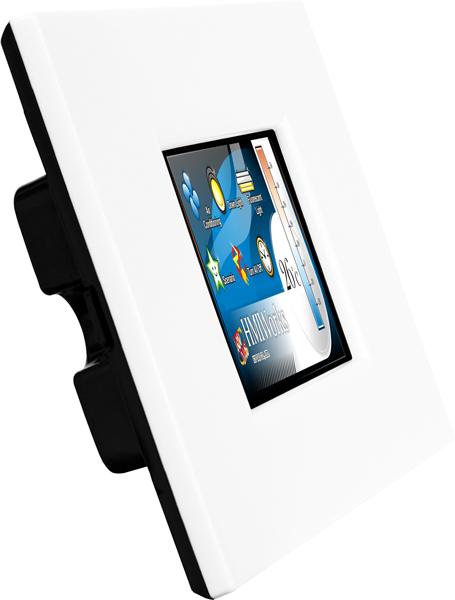

TPD-283-M1 2.8" inch is a tiny touch HMI device designed for building and home automation. It is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. It integrates seamlessly with I/O modules and presents beautiful, flexible, and user-defined picture frame. It is the best choice for upgrading the mechanical switch to intelligent control pads.

HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It only takes less than 30 minutes to create an application program of TPD-series devices when using Ladder Designer. We provide redundant solutions in our PoE version, including the TPD-283/283U-Mx of the TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices are the most cost effective HMI Device in the market.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • PoE (Power over Ethernet)
  • GUI design
  • Free HMIWorks development tool
  • Supports C programming language and Ladder Designer
  • Supports the custom communication protocol (C language)
  • Modbus TCP protocol
  • ESD Protection: 4 kV
  • Operating temperature: -20°C ~ 70°C (-4°C ~ +158°F)

Reference & Support

Specifications

Hardware
CPU 32-bit RISC CPU
Memory Expansion -
Real Time Clock (RTC) -
Buzzer Yes
Rotary Switch (0~9) Yes
Communication Interface
Ethernet RJ-45 x 1, 10/100 Base-TX
Protocol Modbus TCP
MMI (Main Machine Interface)
LCD 2.8” TFT (Resolution 240 x 320 , 65535 colors)
Backlight Life 20,000 hours
Brightness 160 cd/m2
Touch Panel Resistive Touch
Reset Button Yes
Electrical
Powered from Terminal Block -
Powered PoE IEEE 802.3af, Class1 (48 V)
Power Consumption 1.5 W
Mechanical
Dimensions (W x L x H) 127 mm x 92 mm 31 mm
Installation Wall Mount
Ingress Protection Front Panel: IP40
Environmental
Operating Temperature -20°C ~ +70°C (-4°F ~ +158°F)
Storage Temperature -30°C ~ +80°C (+86°F ~ +176°F)
Ambient Relative Humidity 10~90% RH, non-condensing
