TPD-280-H
2.8-inch High Resolution Programmable Touch Screen Controller HMI with RS-485 port (High Speed version). Communicates over Modbus RTU / RS-485. Can store up to 4 images. Has operating temperature range of -20°C ~ +70°C (-4°F ~ +158°F). Comes with HMIWorks Development Software, Demo Programs and Tutorial Videos for making HMI and Logic Control programs to run inside. Technical Support is Provided.
References & Support
Features
TPD-280-H 2.8 inch touch screen controller (high speed version) is designed for building and home automation. It is equipped with high resolution TFT color touch screen and fits into regular electrical wall mount outlet. It can be integrated seamlessly with I/O modules and presents beautiful, flexible,and user-defined picture frame. It is the best choice to upgrade the mechanical switch to intelligent control pads.
HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It only takes less than 30 minutes to create an application program of TPD series devices when using Ladder Designer. We provide redundant solutions in our PoE version, TPD-283-H of TPD-series HMI devices. With all the features provided, TPD-series touch HMI Devices must be the most cost effective HMI Device ever been in the market.
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- Real Time Clock
- GUI design
- Free HMIWorks development tool
- Supports C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus RTU protocol
- ESD Protection: 4 kV
- Operating temperature: -20°C ~ +70°C (-4°F ~ +158°F)
Specifications
| Hardware | ||
| CPU | 32-bit RISC CPU | |
| Memory Expansion | - | |
| Real Time Clock (RTC) | - | |
| Buzzer | Yes | |

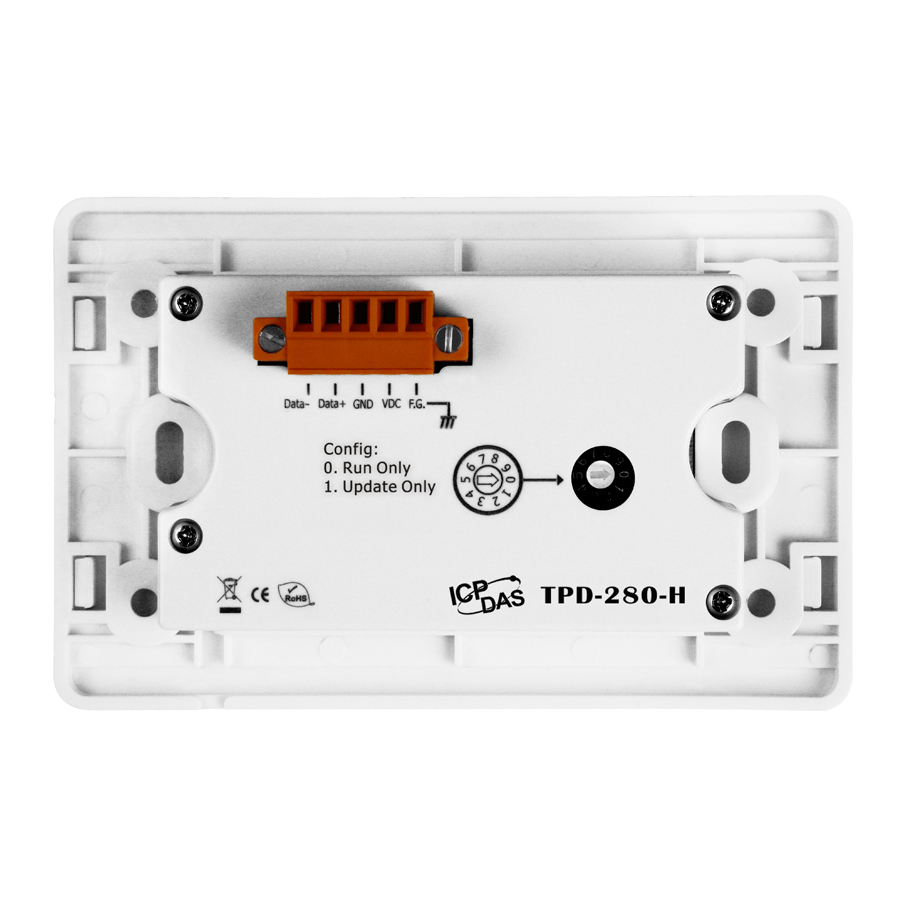

| Rotary Switch (0~9) | Yes | |
| Communication Interface | ||
| Serial Port | COM1 | RS-485 (Including Self-Tuner) |
| COM2 | - | |
| Protocol | Modbus RTU | |
| MMI (Main Machine Interface) | ||
| LCD | 2.8” TFT (Resolution 240 x 320 , 65535 colors) | |
| Backlight Life | 20,000 hours | |
| Brightness | 160 cd/m2 | |
| Touch Panel | Resistive Touch | |
| Reset Button | Yes | |
| Electrical | ||
| Powered from Terminal Block | +12 ~ 48 VDC | |
| Powered PoE | - | |
| Power Consumption | 1.5 W | |
| Mechanical | ||
| Dimensions | 76 mm x 119 mm x 33 mm | |
| Installation | Wall Mount | |
| Ingress Protection | Front Panel: IP40 | |
| Environmental | ||
| Operating Temperature | -20°C ~ +70°C (-4°F ~ +158°F) | |
| Storage Temperature | -30°C ~ +80°C (+86°F ~ +176°F) | |
| Ambient Relative Humidity | 10~90% RH, non-condensing | |
