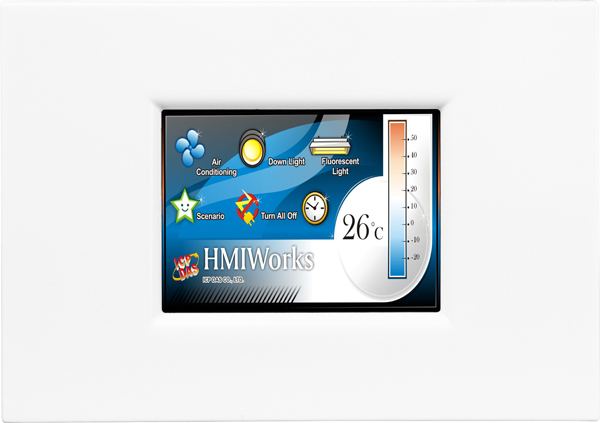

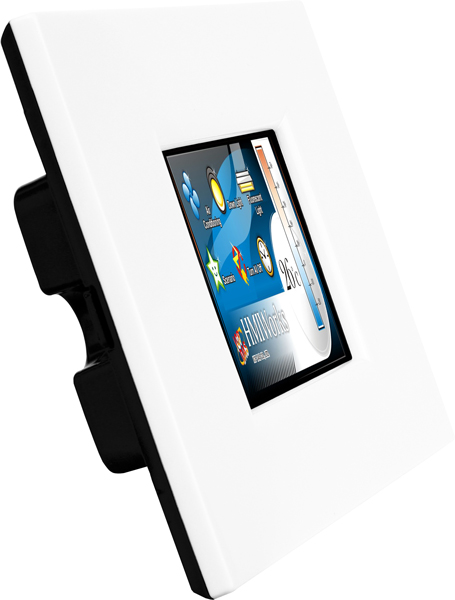

TPD-280-M1 2.8" inch is a tiny touch HMI device designed for building and home automation. It is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. It integrates seamlessly with I/O modules and presents beautiful, flexible, and user-defined picture frame. It is the best choice for upgrading the mechanical switch to intelligent control pads.
HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It only takes less than 30 minutes to create an application program of TPD-series devices when using Ladder Designer. We provide redundant solutions in our PoE version, including the TPD-283/283U-Mx of the TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices are the most cost effective HMI Device in the market.
- Excellent C/P ratio (cost/performance)
- High-resolution color touch screen
- RS-485 (including Self-Tuner)
- GUI design
- Free HMIWorks development tool
- Supports C programming language and Ladder Designer
- Supports the custom communication protocol (C language)
- Modbus RTU protocol
- ESD Protection: 4 kV
- Operating temperature: -20°C ~ 70°C (-4°C ~ +158°F)
|CPU||32-bit RISC CPU|
|Real Time Clock (RTC)||-|

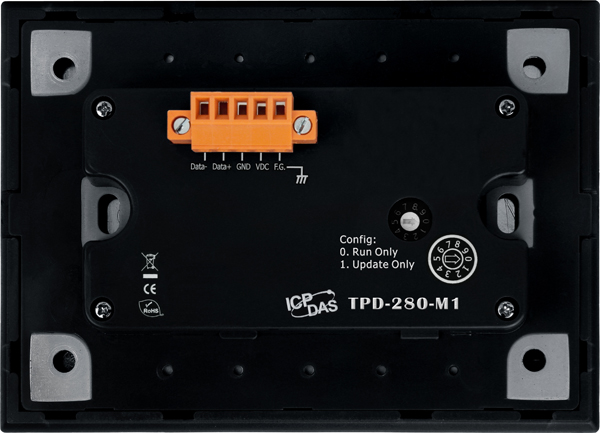

|Rotary Switch (0~9)||Yes|
|Serial Port||COM1||RS-485 (Including Self-Tuner)|
|MMI (Main Machine Interface|
|LCD||2.8” TFT (Resolution 240 x 320 , 65535 colors)|
|Backlight Life||20,000 hours|
|Touch Panel||Resistive Touch|
|Powered from Terminal Block||+12 ~ 48 VDC|
|Power Consumption||1.5 W|
|Dimensions (W x L x H)||127 mm x 92 mm x 21.8 mm|
|Ingress Protection||Front Panel: IP40|
|Operating Temperature||-20°C ~ +70°C (-4°F ~ +158°F)|
|Storage Temperature||-30°C ~ +80°C (+86°F ~ +176°F)|
|Ambient Relative Humidity||10~90% RH, non-condensing|
