7 Channel Relay Output Data Acquisition Module with Form A Relay Outputs.  Communicable over RS-485. Supports operating temperatures between -25°C ~ 75°C (-13°F ~ +167°F).

I-7067

7 Channel Relay Output Data Acquisition Module with Form A Relay Outputs. Communicable over RS-485. Supports operating temperatures between -25°C ~ 75°C (-13°F ~ +167°F).

  Price:  $209.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

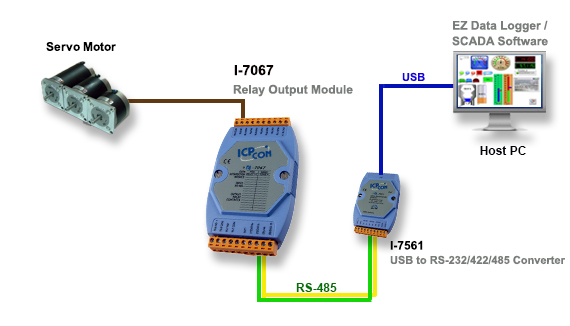

Application Image I-7067

I-7067 is a 7-channel Relay Output Data Acquisition Module for signal conditioning system monitoring. Providing safe value settings, I-7067 is a cost-effective solution for a wide range of industrial control signals and systems. The DCON utility can help users to configure and test I-7067 Relay Output module. The various library functions and demo programs it provides makes it easy for users to develop programs in Windows, Linux and DOS operating systems. I-7067 communicates over Modbus protocol via RS-485. Users can mount the module on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. The I-7067 relay output data acquisition module can be used in various applications such as industrial automation and control, factory automation, remote monitoring, etc.

Specifications

Relay output

  • Channels: 7
    Form “A” relay SPST N.O.
  • Dry Contacts
  • AC 120V@0.5A
  • DC 24V@1A
  • Surge strength: 1500Vac
  • Relay on time(typical): 5 ms

Communication Interface

  • RS-485

Power Supply

  • Input Power: 10~30Vdc
  • Consumption :
    1.5W max. for I-7067
    2.2W max. for I-7067D
