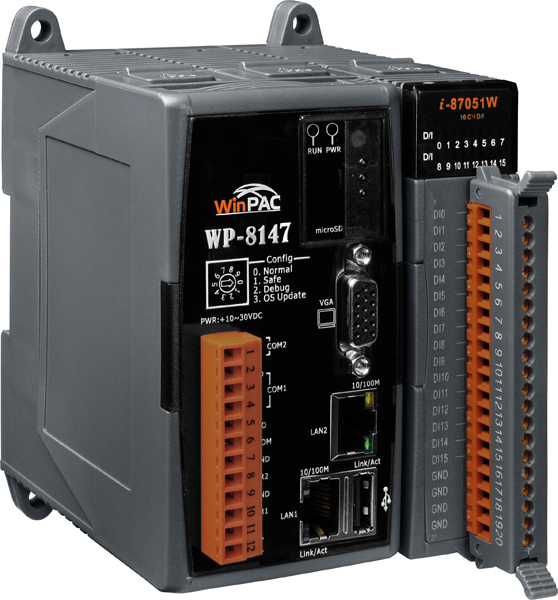

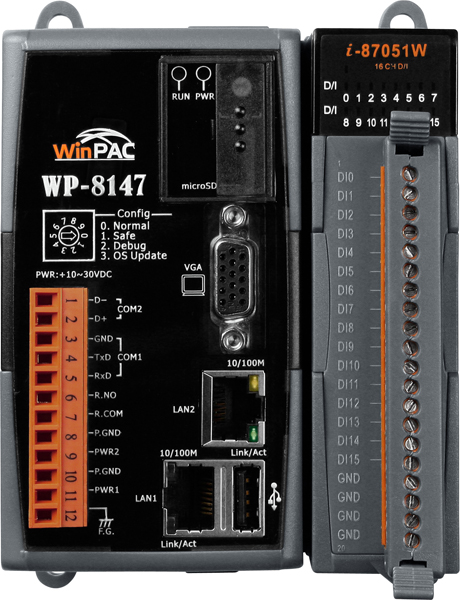

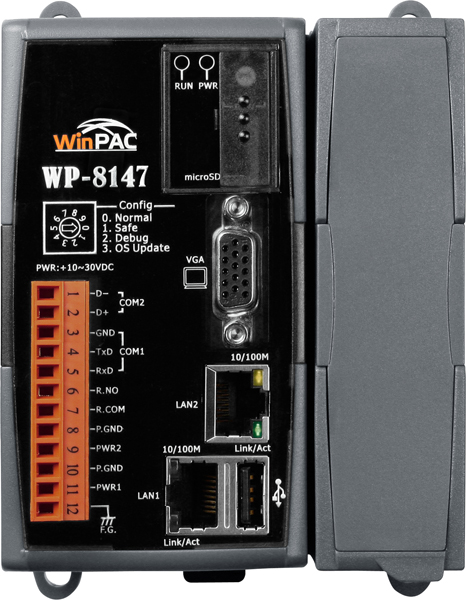

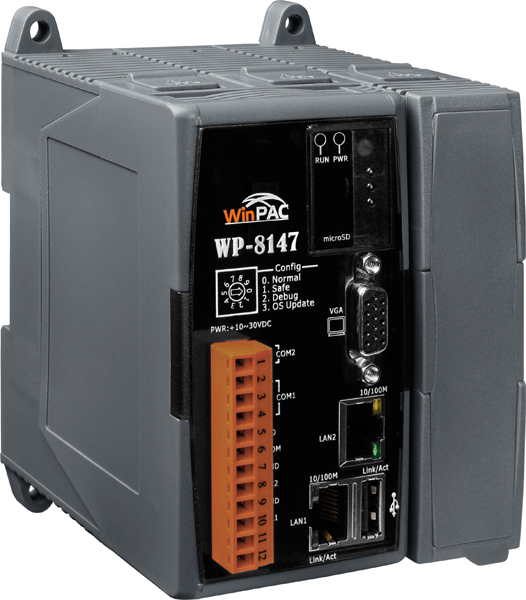

WP-8147
ISaGRAF IEC61131 based Windows embedded Programmable Automation Controller (PAC) with Win CE .NET 5.0 OS, VGA, Ethernet, USB, RS-485 and RS-232 ports and 1 I/O slot. Supports operating temperatures between -25C to 75C (-13F ~ 167F). WP-8147 is phased out and replaced by XP-8137-CE6.
Features
The WP-8147 has officially been phased out and will no longer be available. It has now been replaced by XP-8137-CE6.
WP-8137 is the new generation WinCE 5.0 based ISaGRAF PAC (Programmable Automation Controller) of ICP DAS. WP-8xx7 is equipped with a PXA270 CPU (520 MHz) running Windows CE 5.0 Operating System, various connectivity including 10/100 Base-TX Dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 or 2 USB ports, and 1/4/8 slots for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K series), etc. Memories come with 128 MB SRAM, 512 KB dual battery backup SRAM, 96 or 128 MB FLASH and 1 GB microSD. For redundant supporting: Dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, dual Ethernet Ports. WinPAC Series will upgrade your control system!
Software Features
- Windows CE.NET 5.0
- Hard Real-Time Capability
- Fast Boot Speed
- ISaGRAF Ver.3 SoftLogic Inside
- Support IEC 61131-3 Standard
- Support Web HMI function
- Accepts max. 1 MB ISaGRAF code size
Hardware Features
- PXA270 CPU (32-bit & 520 MHz)
- VGA:
- Max. 1024*768 (for WP-8x37)
- 128 MB SDRAM & 128 MB Flash (for WP-8x37)
- Max. 800*600 (for WP-8x47)
- 128 MB SDRAM & 96 MB Flash (for WP-8x47)
- USB:
- 2 (for WP-8x37)
- 1/4/8 I/O Slots
- 1 (for WP-8x47)
- Dual 10/100M Ethernet Ports
- 64-bit Hardware Serial Number for Software Protection
- 2/4 Serial Ports (RS-232/485)
Specifications
| System Software | ||
| OS | Windows CE 5.0 | |
| .Net Compact Framework | 2.0 | |
| Embedded Service | FTP Server, Web Server | |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Simplified Chinese, Traditional Chinese (OS version: WP-8x3x v1.2.0.1 or later version; WP-8x4x v1.5.0.2 or later version) |
|
| Development Software | ||
| ISaGRAF Software | ISaGRAF Ver.3 | IEC 61131-3 standard |
| Languages | LD, ST, FBD, SFC, IL & FC; It supports Soft-GRAF HMI in the XP-8xx7-CE6, WP-8xx7 and VP-2xW7 PAC. |
|
| Max. Code Size | 1 MB | |
| Scan Time | 3 ~ 15 ms for normal program 15 ~ 50 ms for complex or large program |
|
| Non-ISaGRAF | Options: MS eVC++ 4.0 or VS.NET 2005/2008 (VB.NET, C#.NET) | |
| Web Service | ||
| Web HMI | PC running Internet Explorer can monitor/control PAC via Internet/modem | |
| Security | Support three levels username and password protection. (high/middle/low) | |
| CPU Module | ||
| CPU | PXA270 (32-bit, 520 MHz) or compatible | |
| SDRAM | 128 MB | |
| Dual Battery Backup SRAM | 512 KB | |
| Data Retention: 5 years | ||
| FLASH | Total size | 96 MB |
| OS Image | 64 MB | |
| Built-in Flash Disk | 31 MB | |
| Registry | 1 MB | |
| EEPROM | 16 KB | |
| 1,000,000 erase/write cycles; Data Retention: 40 years. | ||
| microSD | microSD socket with one 2 GB microSD card (support up to 16 GB microSDHC card) | |
| RTC (Real Time Clock) | Provide second, minute, hour, date, day of week, month, year | |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection | |
| Dual Watchdog Timers | Yes | |
| Programmable LED Indicator | 1 | |
| Rotary Switch | Yes (0~9) | |
| DIP Switch | - | |
| VGA & Communication Ports | ||
| VGA Port | Extra GPU | - |
| Resolution | WP-8x37 : 1024 x 768, 800 x 600, 640 x 480 WP-8x47 : 800 x 600, 640 x 480 |
|
| Ethernet | RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, LED indicators) Please use NS-205/NS-208 Industrial Ethernet Switch. |
|
| USB 1.1 (Host) | 1 | |
| COM0 | Internal communication with the high profi le I-87K series modules in slots | |
| COM1 | RS-232 (to update fi rmware) (RxD, TxD and GND); non-isolated | |
| COM2 | RS-485 | D2+, D2- ; self-tuner ASIC inside |
| Isolated | 2500 VDC | |
| COM3 | - | |
| COM4 | - | |
| I/O Expansion Slots | ||
| Slot Number | 1 slot (slot 0 ) | |
| * For High Profile I-8K and I-87K Modules Only | ||
| Hot Swap | * For High Profile I-87K Modules Only | |
| Mechanical | ||
| Dimensions (W x L x H) | 95 mm x 132 mm x 111 mm | |
| Installation | DIN-Rail or Wall Mounting | |
| Environment | ||
| Operating Temperature | -25 ~ +75 °C | |
| Storage Temperature | -30 ~ +80 °C | |
| Ambient Relative Humidity | 10 ~ 90 % RH (non-condensing ) | |
| Power | ||
| Input Range | +10 ~ +30 VDC | |
| Isolation | 1 kV | |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm | |
| Protection | 1.0 A, 5 V supply to CPU and backplane; 0.6 A, 5 V supply to I/O expansion slots, total 8 W |
|
| Power Consumption | WP-81x7: 7.3 W (0.3 A @ 24 VDC); |
|
| Protocols (some protocols need optional devices) | ||
| NET ID | 1 ~ 255, User-assigned by software | |
| Modbus TCP/IP Master | Link to max. 100 devices that support Standard Modbus TCP/IP Slave protocol | |
| Modbus RTU/ASCII Master | Max. 10 ports: COM1 ~ 14 (*). (To connect to other Modbus Slave devices) Support Multi-ports. |
|
| Modbus RTU Slave | Max. 5 ports: COM1, one of COM2/3, COM4 ~ 8 (*). (For connecting ISaGRAF, PC/HMI/OPC Server & HMI panels) |
|
| Modbus TCP/IP Slave | Ethernet LAN1 & LAN2 support total up to 32 connections. (If WP-8xx7 uses 1 connection to connect each PC/HMI, it can connect up to 32 PC/HMI; If WP-8xx7 uses 2 connections to connect each PC/HMI, it can connect up to 16 PC/HMI; ...) When one Ethernet port is broken, the other one can still connect to PC/HMI. | |
| Web HMI Protocol | Ethernet port for connecting PC running Internet Explorer. | |
| I-7000 & I-87K RS-485 Remote I/O |
One of COM2, COM3 supports I-7000 I/O module & (I-87Kn or RU-87Pn + I-87K High Profile I/O boards) as Remote I/O. Max. 255 modules for one controller. | |
| M-7000 Series Modbus I/O | Max. 10 RS-485 ports: COM1 ~ 14 (*) can support M-7000 I/O. Each port can connect up to 32 M-7000 Modules. |
|
| Modbus TCP/IP I/O | LAN2 supports ICP DAS Ethernet I/O : I-8KE4-MTCP and I-8KE8-MTCP. If LAN2 is broken, it will switch to LAN1 automatically to continuously work. (This need LAN1 & LAN2's IP are set in the same IP domain) | |
| FRnet I/O | Support max 8 pcs. I-8172W boards in slot 0 to 7 to connect to FRnet I/O modules, like FR-2053, FR-2057 FR-32R, FR-32P, Each I-8172W board can connect up to 256 DI plus 256 DO channels. | |
| Send Email | Supports mail_snd and mail_set functions to send email with one attached file via Ethernet port. | |
| Ebus | LAN2 to exchange data between ISaGRAF Ethernet PAC via Ethernet port. | |
| SMS: Short Message Service |
WP-84x7/88x7's COM4/5 and WP-81x7's COM1/COM5 can link to a GSM Modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user's cellular phone. (*) Optional GSM Modem: GTM-201-RS232 (850/900/1800/1900 GSM/GPRS External Modem) |
|
| User-defined Protocol | COM1 ~ COM14 (*) by Serial communication function blocks. | |
| MMICON/LCD | COM4 or COM5 (*) supports ICP DAS's MMICON. | |
| UDP Server & UDP Client : Exchange Message & Auto-Report |
LAN1 or LAN2 support UDP Server and UDP Client protocol to send/receive message to/from PC/HMI or other devices. For example, to automatically report data to InduSoft's RXTX driver. | |
| TCP Client : Exchange Message & Auto-Report |
LAN1 or LAN2 (To send/receive message to/from PC/HMI or other devices which support TCP server protocol.) Ex: automatically report data to InduSoft's RXTX driver, or to connect a location camera. |
|
| GPRS | Support the I-8212W card to receive / send a short message or to dial up to link the Internet by GPRS connection to send an email or communicate with remote stations by using "TCP Client" or "UDP Server" or "UDP Client". | |
| SQL Client | Supports SQL Client functions to write data to (or read data from) Microsoft SQL Servers (2000 SP3, 2005, 2008) | |
| New Hot-Swap and Redundant System | This redundant system has setup two "Active IP" address point to the active WP-8xx7's LAN1 and LAN2 ports always. One or two or more PC/HMI/SCADA can communicate with this redundant system via one of the two given active IP. So the PC/HMI/SCADA can access to the system easily without any notice about which WP-8xx7 is currently active. Moreover, the new redundant system can integrate with the RU-87P4 and RU-87P8 expansion unit plus the I-87K high-profile I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model number to hot-swap the damaged one without stopping this redundant system. | |
| CAN/CANopen | COM1, COM3 ~ COM14 can connect one I-7530 (converter: RS-232 to CAN) to support CAN/CANopen devices and sensors. One WP-8xx7 supports max.10 RS-232 ports to connect max.10 I-7530. (*) | |
| CANopen Master | Support the I-8123W CANopen Master card to connect other CANopen slave devices. | |
| HART Solutions | Support I-87H17W modules in slot 0 to 7 to communicate with other HART devices. | |
| Optional I/O Functions | ||
| PWM Output | ||
| High Speed PWM Module | I-7088, I-8088W, I-87088W: 8-ch. PWM outputs, software support 1 Hz ~ 100 KHz (non-continuous), duty: 0.1 ~ 99.9% |
|
| DO Module as PWM | 8-ch. max. 250 Hz max. For Off=2 & On=2 ms . Output square wave: Off: 2 ~ 32766 ms, On: 2 ~ 32766 ms. Optional DO Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W. (Relay Output boards cannot generate fast square wave) |
|
| Counter, Encoder, Frequency | ||
| Parallel DI Counter | 8-ch. max. For 1 controller. Counter val: 32-bit. 250 Hz max. Min. ON & OFF width must > 2 ms. Optional DI boards: I-8040W, 8040PW, 8042W, 8046W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W. |
|
| Serial DI Counter | Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit) Optional serial I-87K DI boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W. |
|
| Remote DI Counter | All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535 | |
| High Speed Counter | I-87082W: 100 kHz max. 32 bit; I-8084W : 250 kHz max. 32 bit |
|
| Encoder | I-8093W: 3-axis Encoder Module, max. 1M Hz for quadrant input mode, max. 4M Hz for pulse/direction and cw/ccw input mode. I-8084W: 250 kHz max., 4-ch encoder, can be pulse/direction, or Up/Down or A/B phase (Quad. mode); Not support Encoder Z-index. |
|
| Frequency | I-87082W: 2-ch, 1 Hz ~ 100 kHz; I-87088W: 8-ch, 0.1 Hz ~ 500 kHz; I-8084W : 8-ch, 1 Hz ~ 250 kHz; |
|
| Motion | ||
| Motion Control | WP-8xx7 integrate with one I-8091W (2-axis) or two I-8091W (4-axis). | |
| *Note: COM5 ~ COM14 are resided at the expansion boards if they are plugged on slot 0 ~7 of WP-8xx7. WP-8137/8147 has no COM3 & COM4. |
||
