PROFIBUS Remote I/O Module with 8 Channel Isolated Analog Input (Voltage Input), supports operating temperatures from -25°C ~ +75°C (-13°F ~ +167°F)

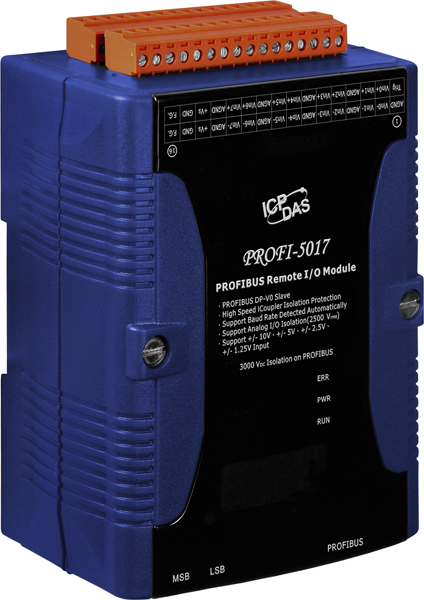

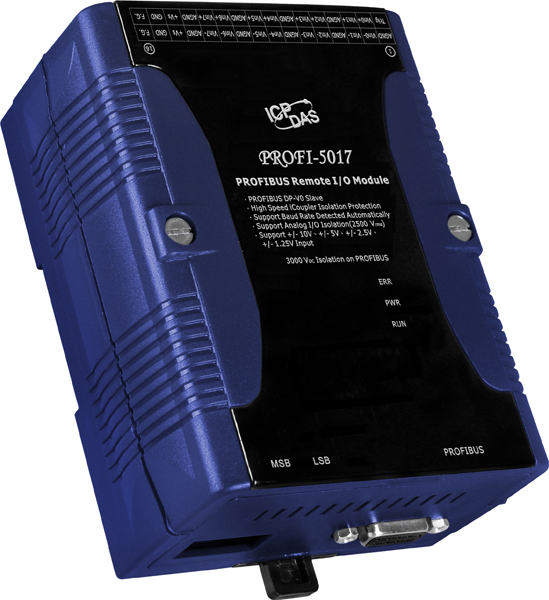

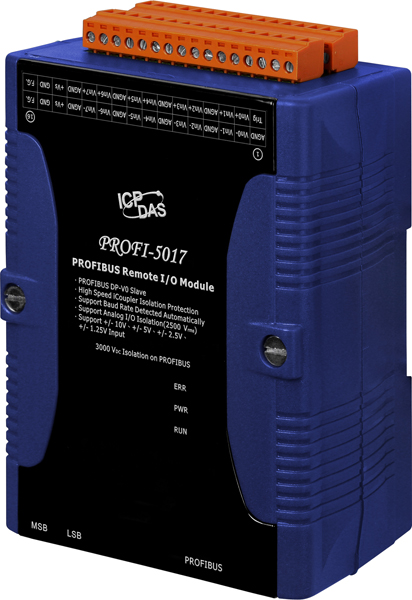

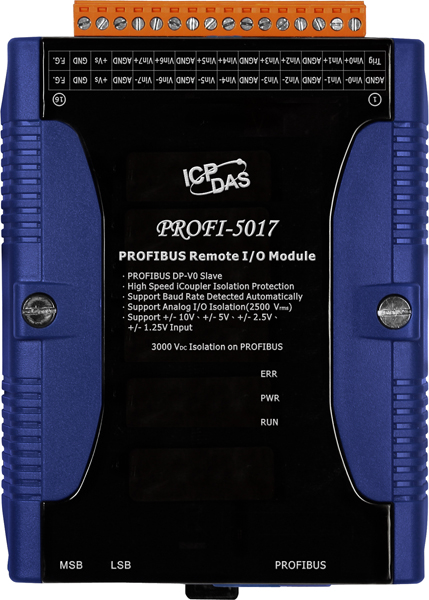

PROFI-5017

PROFIBUS Remote I/O Module with 8 Channel Isolated Analog Input (Voltage Input), supports operating temperatures from -25°C ~ +75°C (-13°F ~ +167°F)

  Price:  $689.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

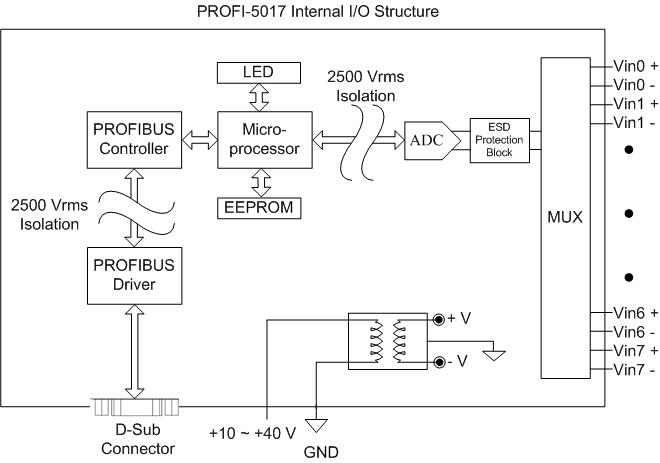

The PROFI-5017 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 8-channel isolated analog voltage input with 2500Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

Profi-5017

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc...
applications

Specifications

Features
Protocol & Hierarchy
DP-V0 Slave
Supports Transmission Rate (kbps)
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting
detected automatically
Address Setting
Address 0~126 set by rotary switches or SSA Telegram
Indicators
PWR LED, RUN LED, ERR LED
I/O modules Configuration
Configured by GSD file
Network Isolation Protection
High Speed iCoupler
DC Isolation Protection
3000 VDC on PROFIBUS side
4KV ESD Protection
Contact for each terminal



Hardware
ESD Protection
4 kV class A
PROFIBUS Interface
Controller
Siemens SPC3
Transceiver
ADI ADM2486
Connector
9-pin female D-Sub
Baud Rate (bps)
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m)
Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol
DP-V0
LED
Round LED
PWR LED, RUN LED, ERR LED
Power
Power supply
Unregulated +10 ~ +40 VDC
Protection
Reverse polarity protection, Over-voltage brown-out protection
Power Consumption
3 W
I/O
Analog input
8 channel differential voltage input
Isolation Voltage:2500Vrms
Mechanism
Installation
DIN-Rail
Dimensions
91 mm x 128 mm x 52 mm (W x L x H)
Environment
Operating Temp.
-25 ~ 75℃
Storage Temp.
-30 ~ 85℃
Humidity
5 ~ 95% RH, non-condens
