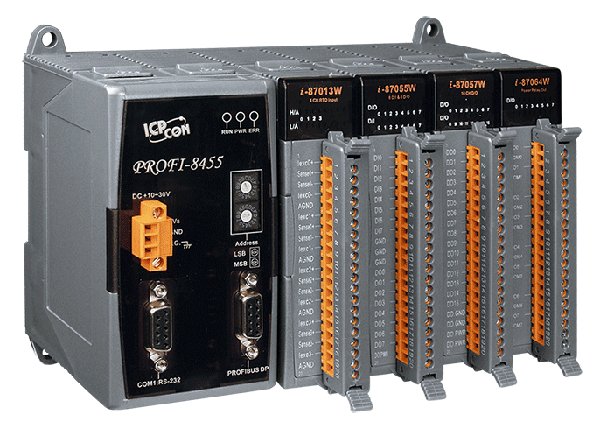

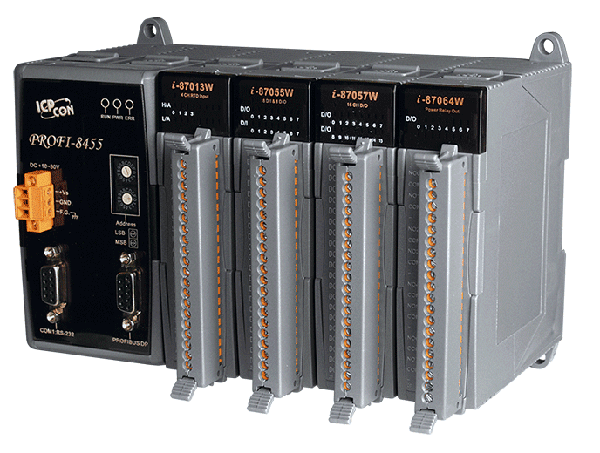

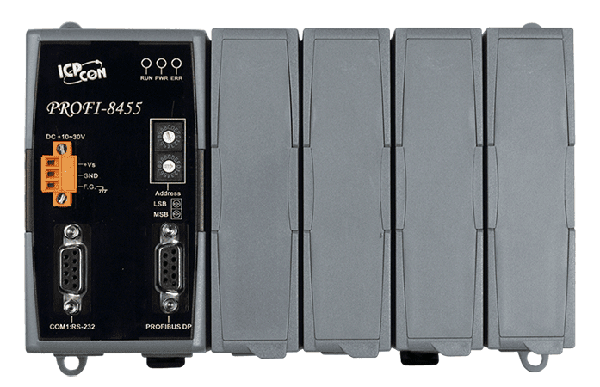

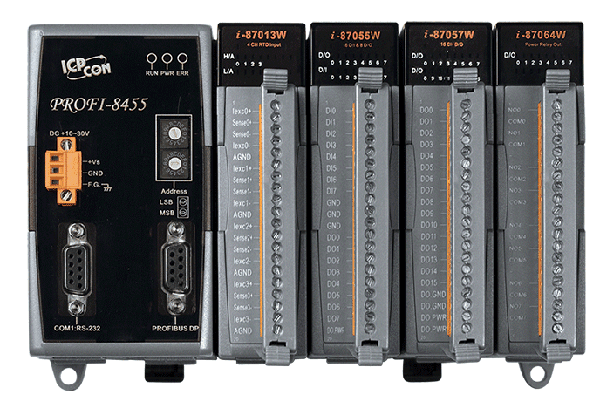

PROFIBUS Remote I/O Unit with 4 Expansion Slots. Previously named Profibus-8455.

PROFI-8455-G

write a review write a review

PROFIBUS Remote I/O Unit with 4 Expansion Slots. Previously named Profibus-8455.

  Price:  $1,399.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK
Send Email with Product Info
Write a Review Write a Review Email Us
References and Support Add to Quote

Features

Introduction

The PROFI-8455-G Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 4 slots for ICPDAS I-8k series, I-87k Low Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.

Features

  • Protocol & Hierarchy : DP-V0 Slave
  • Transmission Rate Setting : detected automatically
  • Address Setting : 0~126 set by Rotary switches
  • I/O modules Configuration : Configured by GSD file
  • Supports I/O modules hot-swap : I-87K High Profile series
  • Network Isolation Protection : High Speed iCoupler
  • DC Isolation Protection : 3000VDC on PROFIBUS side
  • 4KV ESD Protection : Contact for eash terminal

Applications

    • Industrial Automation
    • Factory Automation
    • Process Automation

  • Flow Chart of PROFI-8455-G:


    Protocol & Hierarchy DP-V0 Slave
    Supports Transmission Rate (Kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
    Transmission Rate Setting Detected automatically
    Address Setting 0~126 set by Rotary switches
    Indicators PWR, ERR, and RUN LEDs
    I/O Modules Configuration Configured by GSD file
    Supports I/O Modules Hot-swap i-87K High Profile series
    Network Isolation Protection High Speed iCoupler
    DC Isolation Protection 3000 VDC on PROFIBUS side

Specifications

CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 2 KB
Flash 512 KB
SRAM 512 KB
Watchdog Timer Watchdog IC (CPU built-in)
LED Indicators
Status PWR LED, RUN LED, ERR LED
I/O Expansion
Slots 4
COM Ports
Ports RS-232 (For updating firmware)
PROFIBUS
Controller Siemens SPC3
Transceiver ADI ADM2486
Baud Rate 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DP-V0
Power
Consumption 5 W
Mechanical
Dimensions (mm) 188 x 91 x 132 (W x L x H)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 95% RH, Non-condensing
