IP-based Ethernet I/O Module with 2 Ethernet ports for daisy chain, 16-channel Open Collector Digital Output(RoHS). Supports Modbus TCP/UDP Protocols and features Built-in Web Server for Easy Configuration. Supports I/O Pair Connection. Wide Operating Temperature Range: -25 ~ +75 °C (-13F ~ 167F).

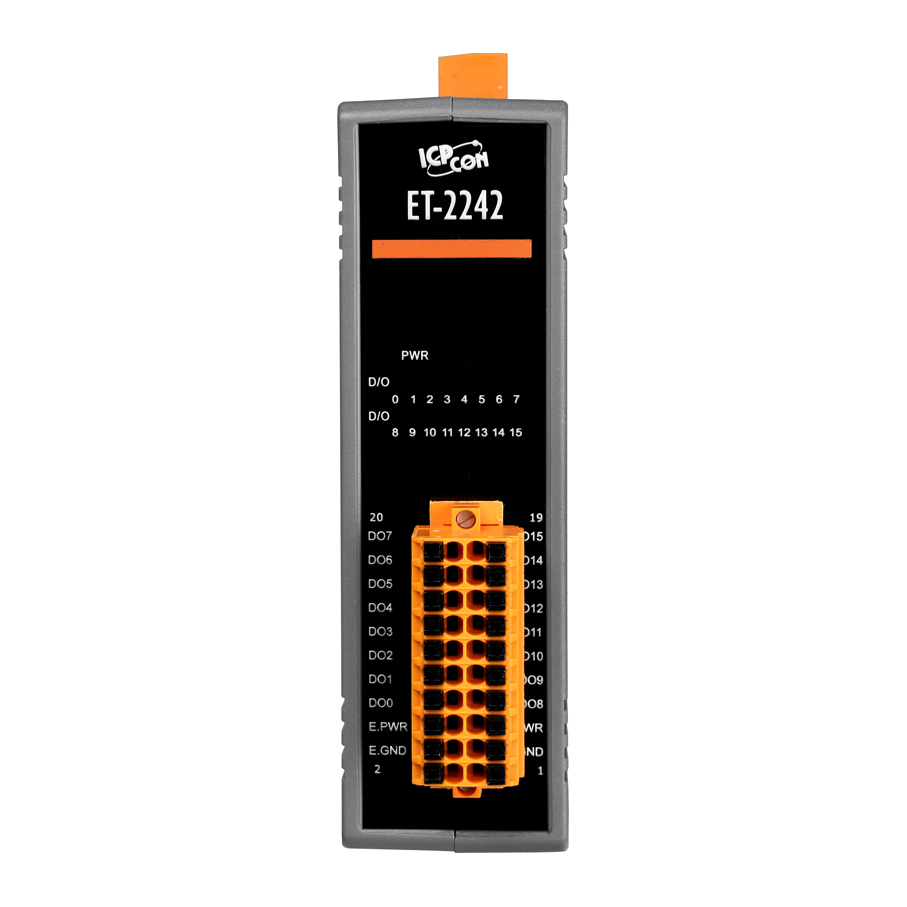

ET-2242

IP-based Ethernet I/O Module with 2 Ethernet ports for daisy chain, 16-channel Open Collector Digital Output(RoHS). Supports Modbus TCP/UDP Protocols and features Built-in Web Server for Easy Configuration. Supports I/O Pair Connection. Wide Operating Temperature Range: -25 ~ +75 °C (-13F ~ 167F).

  Price:  $339.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

Providing various digital I/O functions, the ET-2242 module is an IP-based Ethernet I/O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network by using Modbus TCP/UDP protocol. Modbus has become a de facto standard communications protocol in industry, and is now the most commonly available means of connecting industrial electronic devices. This makes the ET-2242 module perfect integration with the HMI, SCADA, PLC and other software systems.

The ET-2242 provides 16 Digital Output channels, each of which features photo couple isolation. The ET-2242 supports sink type output with short circuit protection and each channel can drive 650 mA load. There are configurable power-on and safe values for Digital Output. With 2 Ethernet ports, the ET-2242 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. It features 8 kV ESD protection, 4 kV EFT protection, 3 kV surge and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments.

The module can be used to create DI to DO pair-connect through the Ethernet. After configuration, the ET-2242 module can poll the status of the local DI channels and then use the Modbus/TCP protocol to continuously write to the remote DO devices. It is equipped with removable terminal block connector for easy and robust wiring in industrial situations, and features a powerful 32-bit ARM MCU to handle efficient network trafficking.

  • Built-in Web Server
  • Support Modbus TCP/UDP Protocols
  • Powerful 32-bit MCU Handles Efficient Network Traffic
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • I/O Pair Connection (Push and Polling)
  • Supports web configuration and firmware update via Ethernet
  • 16 open collector digital output channels
  • LED Display to Indicate the I/O status
  • Wide Operating Temperature Range: -25 ~ +75 °C (-13F ~ 167F)

Specifications

System
CPU 32-bit ARM
Communication

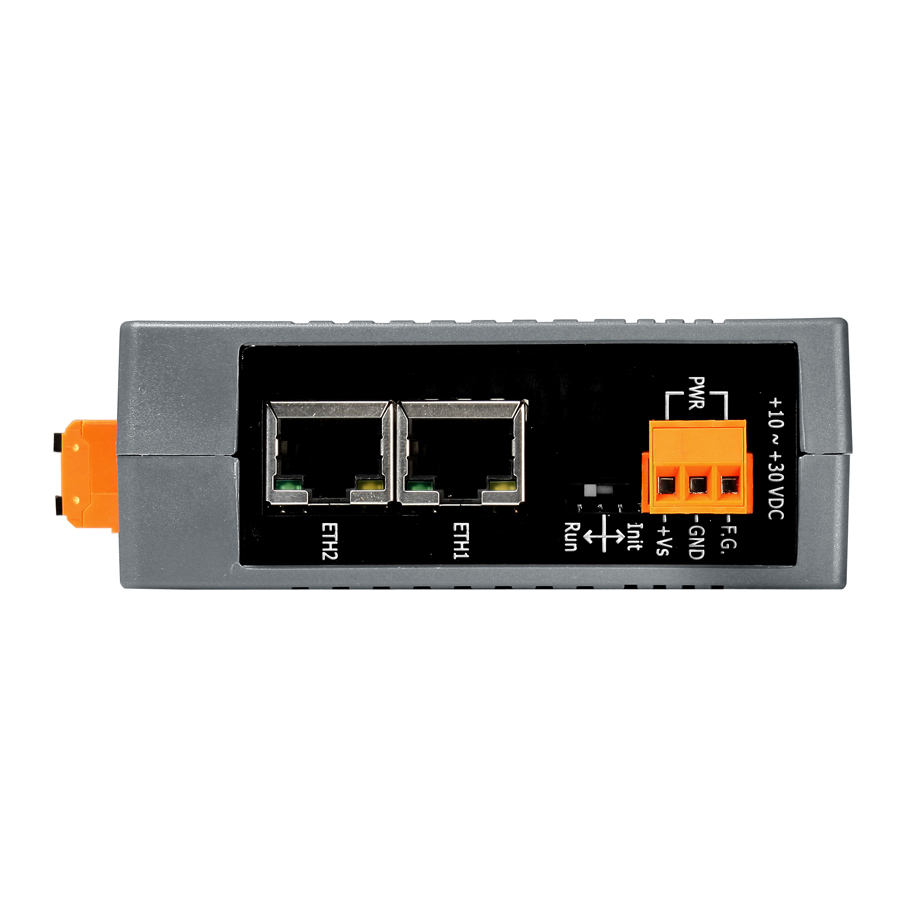

Ethernet Port 2 x RJ-45, 10/100 Base-TX, Swtich Ports
Protocol Modbus TCP, Modbus UDP
Security Password and IP Filter
Dual Watchdog Yes, Module, Communication (Programmable)
LAN Bypass Yes
LED Indicators
for System Running Yes
for Ethernet Link/Act Yes
for DI/DO status Yes
2-Way Isolation
Ethernet 1500 VDC
I/O 3000 VDC
EMS Protection
ESD (IEC 61000-4-2) ±8 kV Contact for Each Terminal and ±16 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for Power Line
Surge (IEC 61000-4-5) ±3 kV for Power Line
Power Requirements
Reverse Polarity Protection Yes
Powered from Terminal Block +10 ~ +30 VDC
Consumption 3.2 W
Mechanical
Dimensions (L x W x H) 127 mm x 33 mm x 99 mm
Installation DIN-Rail or Wall mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

I/O Specifications

Digital Output
Channels 16
Type Open Collector
Sink/Source Sink
Load Voltage +3.5 VDC ~ +50 VDC
Max. Load Current 650 mA/Channel PASS
Overload Protection 1.4 A (with short-circuit protection)
Overvoltage Protection +60 VDC
