Expansion I/O Board for VPD Controllers with 5 Isolated Digital Inputs and 6 Relay Outputs with 16-bit Counters

XV116 - 5-channel Isolated Digital Input, 6-channel Relay Output Expansion Board

Expansion I/O Board for VPD Controllers with 5 Isolated Digital Inputs and 6 Relay Outputs with 16-bit Counters

  Price:  $149.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

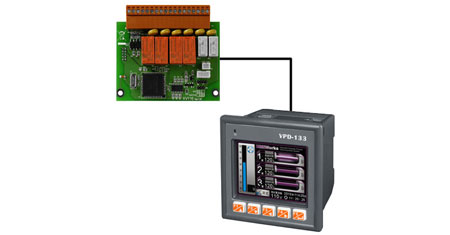

XV116 application

* Only for VPD-132/133

The XV116 provides 5 channels for digital input, as well as 6 Form A relay output channels. In addition, either sink- or source-type digital input can be selected via wire connections. All input channels can be used as 16-bit counters. The XV116 also provides options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.

  • 5 Digital Input channels and 6 Relay Output channels
  • Sink- and Source-type Digital Input
  • All Digital Input Channels can be used as 16-bit Counters
  • 4 kV ESD Protection
  • 3750 VDC Intra-module Isolation
  • Configurable Power-on Value Settings
  • Configurable Safe Value Settings
  • Wide Operating Temperature Range: -25 ~ + 75°C

Applications

  • Industrial Automation
  • Building Automation
  • Food and Beverage Systems
  • Control Systems

Reference & Support

  • Cut Sheet
  • Specifications

    Digital Input/Counter
    Input Channels 5
    Type Dry Contact -
    Wet Contact Sink/Source
    On Voltage Level Dry Contact -
    Wet Contact +3.5 ~ +50 VDC
    Off Voltage Level Dry Contact -
    Wet Contact +1 VDCMax.
    Input Impedance 10 KΩ, 0.5 W
    Counters Channels 5
    Max. Count 16-bit (65535)
    Max. Input Frequency 100 Hz
    Min. Pulse Width 5 ms
    Overvoltage Protection 70 VDC
    Relay Output
    Channels 2 (Channel 0,1) 4 (Channel 2 ~ 5)
    Type Signal Relay Power Relay
    Form A
    Relay
    Contact Rating 2 A @ 30 VDC
    0.24 A @ 220 VDC
    0.25 A @ 250 VAC
    6 A @ 35 VDC
    6 A @ 240 VAC
    Min. Contact Load 10 mA @ 20 mV 100 mA @ ≧12 V
    Contact Material Silver Nickel, Gold-covered Silver Cadmium Alloy
    Operate Time 3 ms (typical) 5 ms (typical)
    Release Time 4 ms (typical) 1 ms (typical)
    Mechanical Endurance 108 ops. 30 X 106 ops.
    Electrical Endurance 2 X 105 ops. 1 X 105 ops.
    Power-on Value Yes
    Safe Value Yes
    Communication
    Interface RS-232/TTL
    Format N, 8, 1
    Baud Rate 115200 bps
    Protocol Modbus/RTU
    Dual Watchdog Yes, Module (2.3 seconds), Communication(Programmable)
    Isolation
    Intra-module Isolation, Field-to-Logic 3750 VDC
    EMS Protection
    ESD (IEC 61000-4-2) +/-4kV Contact For Each Terminal
    +/-8kV Air For Random Terminal
    Power
    Reverse Polarity Protection -
    Powered from Terminal Block 5 VDC
    Consumption 1.2 W Max.
    Mechanical
    Dimensions (W x L x H) 59 mm x 82 mm x 13 mm
    Environment
    Operating Temperature -25 ~ +75°C
    Storage Temperature -40 ~ +85°C
    Humidity 10 ~ 95% RH, Non-condensing
