4/8-channel Digital Input Counter / Frequency / Encoder Module USB 2.0 Full-Speed and USB Bus powered.  Plug-and-Play without drive.  Lockable USB cable with temperatures between -25° C ~ 75°C (-13°F ~ 167°F)  (RoHS).

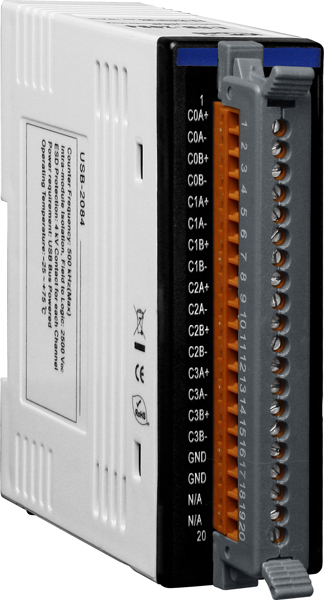

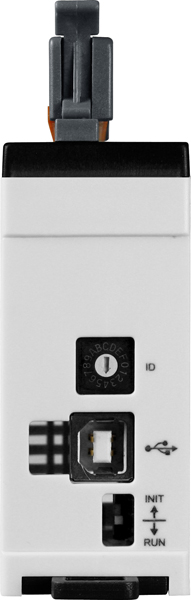

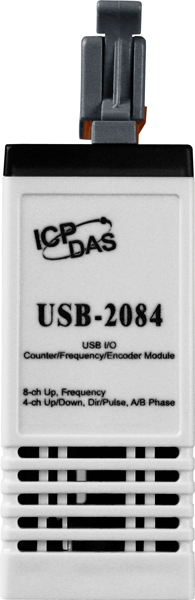

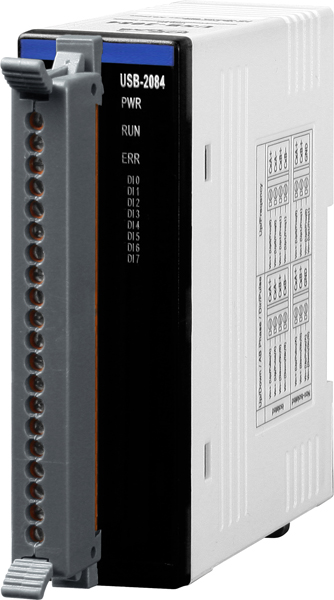

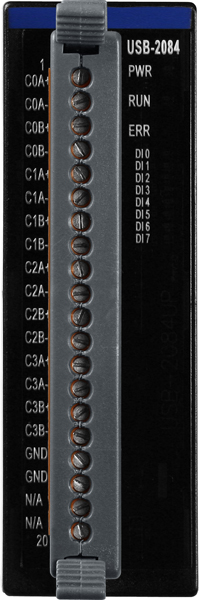

USB-2084

4/8-channel Digital Input Counter / Frequency / Encoder Module USB 2.0 Full-Speed and USB Bus powered. Plug-and-Play without drive. Lockable USB cable with temperatures between -25° C ~ 75°C (-13°F ~ 167°F) (RoHS).

  Price:  $299.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The USB-2084 is a full-speed USB device with 8-channel for Frequency and Up Counters, or 4-channel for Up/Down, Dir/Pulse and A/B Phase Counters. It offers features for industrial control and manufacturing test applications, such as factory automation or embedded machine control. Plug & Play capability, eliminates the need to open up the computer chassis and allows for "hot-swapping". Shut down and restarting system to attach or remove a peripheral is not needed.

The USB I/O utility can help users to configure and test USB-2084 quickly and easily without programming; In addition, we also provide the friendly API library and demos for users to develop own USB application with various application development tools (VB/C++/C#.NET/VB.NET). Therefore, the USB-2084 is the perfect way to add measurement and control capabilities to any USB capable computer.

  • 8-channel power relay output
  • 4-channel for Up/Down, Dir/Pulse and A/B Phase Counters Types
  • Support digital filter (1~32767 us)
  • 4kV ESD protection
  • Wide operating temperature range: -25°C~+75°C (-13°F ~ 167°F)
  • No external power suply (USB Bus Powered)
  • Plug-and-Play without driver installation
  • Locable USB cable
  • Built-in dual watchdog (hardware/software)
  • Module support for Win2000/XP and Win7 (32/64 bit)

Software

USB I/O Utility

USB I/O Utility provides a simple way to easily test and instantly acquire data for all ICP DAS USB I/O series modules without programming.

  • USB module configuration
  • I/O configuration
  • Log Data analysis
  • Easy to test

USB-2019 Utility

Specifications

Input
Channels 4 channels for Up/Down, Dir/Pulse and A/B Phase types
8 channels for Up and Frequency types
Output Type Up, Frequency, Up/Down, Dir/Pulse, A/B Phase
Resolution 32 bit
Input Frequency Non-isolated: 500 KHz maximum
Isolated: 250 KHz maximum
Digital Noise Filter 1 ~ 32767 uS (Software programmable)
Frequency Accuracy +/-0.4%
Isolated Input Level On Voltage Level +4.5 VDC ~ +30 VDC
Off Voltage Level +1 VDC maximum
Non-isolated Input Level (TTL) On Voltage Level +2 VDC ~ +5 VDC
Off Voltage Level 0 VDC ~ +0.8 VDC
Communication
Interface USB 2.0 Full-Speed
Watchdog 1 Hardware watchdog (1.6 second)
1 Software watchdog (Programmable)
LED Indicators
System LED Indicators 3 LED as Power, Run and Error
I/O LED indicators 9 LEDs as power relay indicators
EMS Protection
ESD (IEC 61000-4-2) 4 kV contact for each terminal
8 kV air for random point
Mechanical
Dimensions (W x L x H) Body: 33 mm x 102 mm x 107 mm
Environmental
Operating Temperature -25°C ~ +75°C (-13°F ~ 167°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ 185°F)
Humidity 10 ~ 95% RH, non-condensing
Power
Power Consumption Maximum: 1.11 W
