TSL-PA4R1
Single Stack Light Monitoring Module with Ethernet/RS-485 Interface and PoE for AC Stack Lights. (4 AC DI + 1 Relay) Communicable over MQTT protocol.
Features

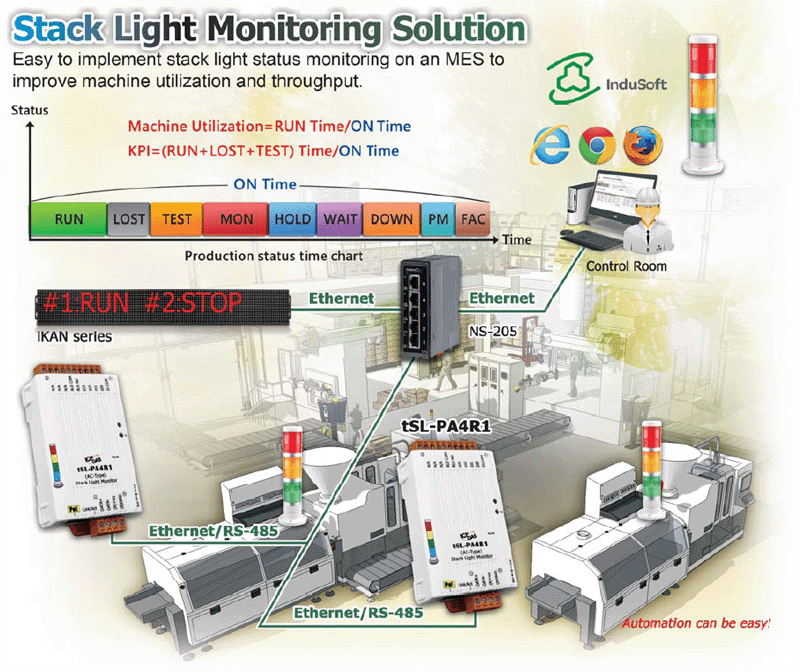

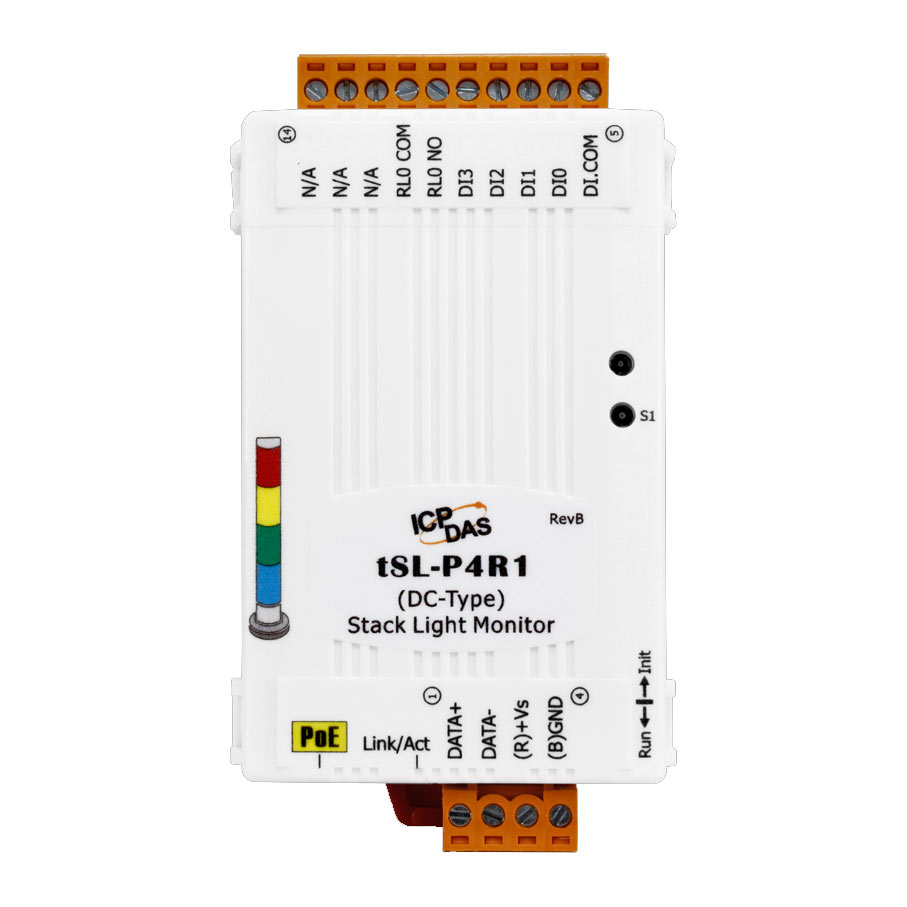

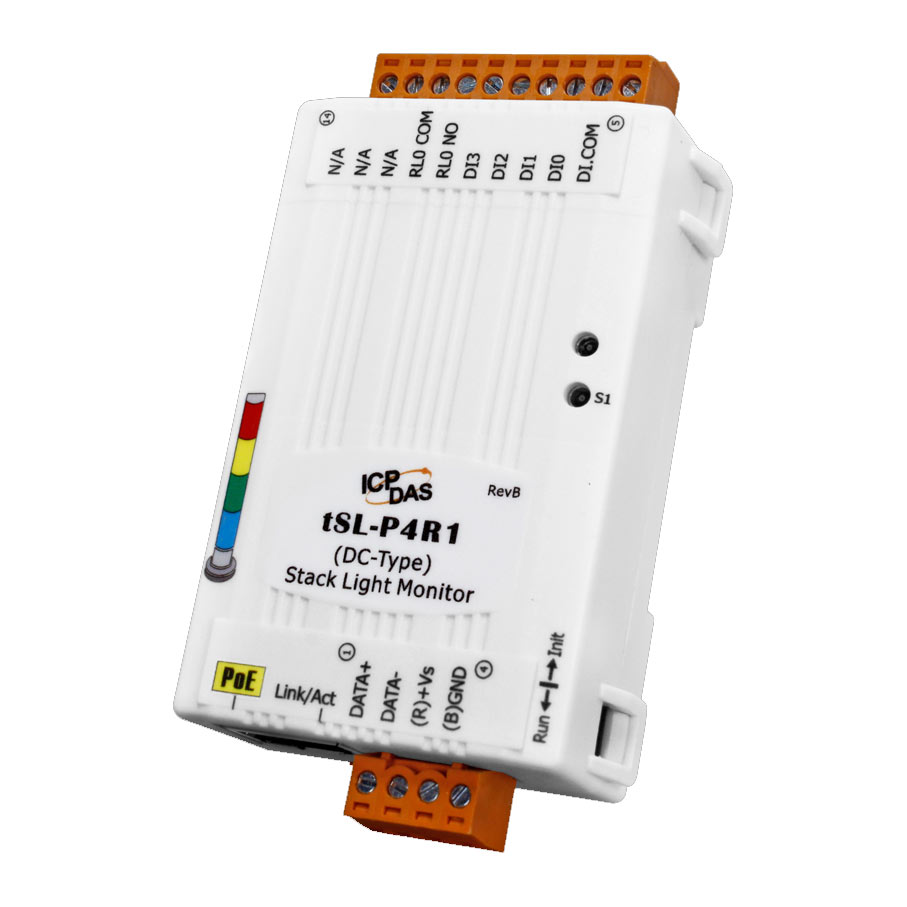

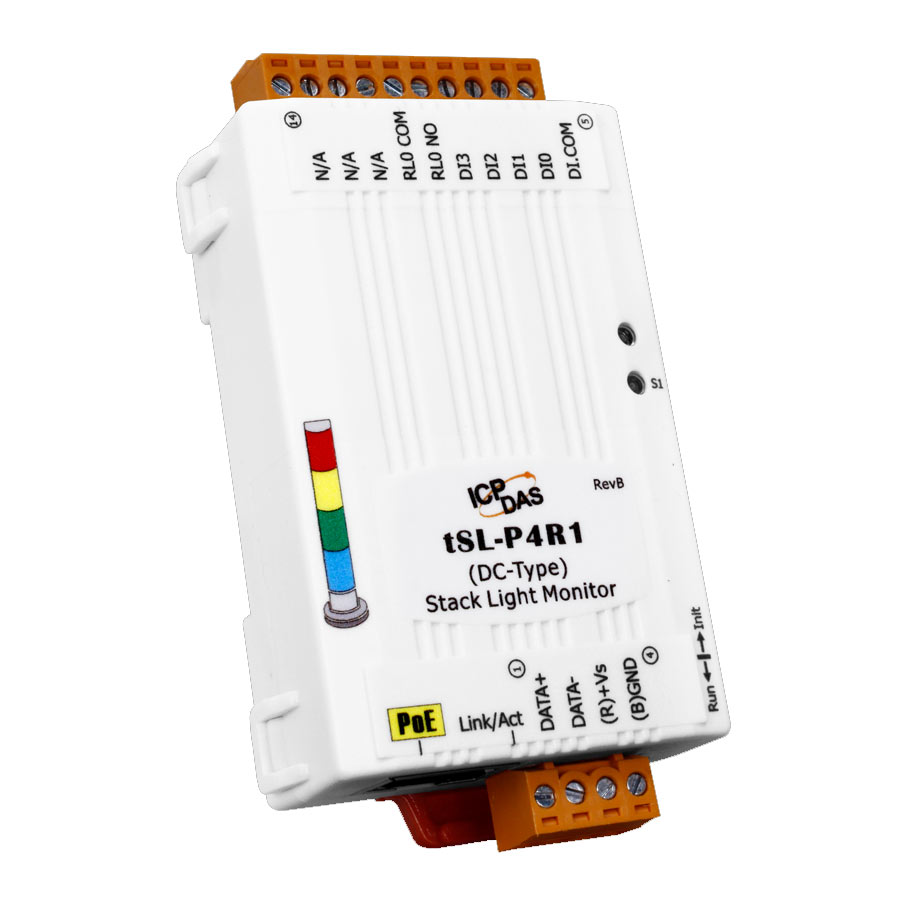

The tSL-P4R1/tSL-PA4R1 is a stack light monitoring, 4-channel DC/AC digital input and 1-channel relay output module. The tSL-P4R1/tSL-PA4R1 monitors the status of the stack light of the MES (Manufacturing Execution System) machine. The tSL-P4R1/tSL-PA4R1 can also detect the status of each color segment of the stack light as being either OFF, ON, or flashing. In addition to detecting the status of each individual color segment, the status of the combination of multiple color segments can also be defined, including the ability to report the duration of the previous status. By integrating the tSL-P4R1/tSL-PA4R1 module into your system, it is easy to implement stack light status monitoring on an MES via SCADA software to improve machine utilization and throughput. By installing the tSL-P4R1/tSL-PA4R1 intelligent module, the module monitors the output of the machine’s indicators without affecting the operation of the equipment, allowing the current operation stage of the machine to be mastered and ensuring timely command of the logistics system support in order to achieve production goals. By managing the machine status, it reduces the amount of downtime and to reduce production costs.
- Able to detect the status of each color segment: ON, OFF, or Flashing.
- 4-channel DC/AC digital input and 1-channel alarm relay output.
- Status monitoring for user-defined combinations of multiple color segments.
- Reports the duration of the previous status
- Supports Modbus RTU, Modbus TCP and MQTT protocols.
- Includes RS-485/Ethernet communication interfaces.
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input.
- Web-based configuration interface and firmware update via Ethernet.
- Relay output for alarm devices.
- Wide operating temperature range: -25 to +75°C.
Applications
Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis and Testing Equipment.
Specifications
Software Specifications
Communication
RS-485 Port
Baud Rate = 1200 ~ 115200 bps
Ethernet Port
10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators)
Security
IP filter (whitelist) and Password (web)
Protocol
Modbus/RTU, Modbus TCP and MQTT
Dual Watchdog
Yes, Module (2.3 seconds), Communication (Programmable)
LED Indicators
S1
System indicator
E1
PoE indicator (Green), Link/Act,(Yellow)
Isolation
Intra-module Isolation, Field-to-Logic
3750 VDC
EMS Protection
ESD (IEC 61000-4-2)
±4 kV Contact for Each Terminal,±8 kV Air for Random Point
EFT (IEC 61000-4-4)
±2 kV for Power
Power Requirements
Reverse Polarity Protection
Yes
Power Input
Terminal Block: +10 ~ +48 VDC, PoE: IEEE 802.3af, Class 1
Consumption
PoE=1 W Max. , Non-PoE= 0.9 W Max.
Mechanical
Dimensions (W x L x H)
52 mm x 98 mm x 27 mm
Installation
DIN-Rail Mounting
Environment
Operating Temperature
-25 to +75°C
Storage Temperature
-30 to +80°C
Humidity
10 to 95% RH, Non-condensing
I/O Specifications
Digital Input
Input Channels
4
Type
Wet Contact (Sink, Source)
ON Voltage Level
80 VAC ~240 VAC
OFF Voltage Level
30 VAC Max.
Input Impedance
150 KΩ, 2 W
Programmable Digital Filter
0 ~ 6500 ms
Max. Stack Light Flashing Speed
60 Hz
Able to detect the status of each color segment: ON, OFF, or Flashing
Yes
Status monitoring for user-defined combinations of multiple color segments
Max. 81 combinations
Report duration of previous status
Yes, 10 ~ 65500 ms
Overvoltage Protection
300 VAC
Isolation
3750 VDC
Digital Output
Output Channels
1
Type
Power Relay, Form A (SPST N.O.)
Operating Voltage Range
250 VAC or 30 VDC
Max. Load Current
5 A
Operate Time
6 ms
Release Time
3 ms
Electrical Life (Resistive load)
VDE= 5 A @ 250 VAC 30,000 ops (10 ops/minute) at 75°C, 5 A @ 30 VDC 70,000 ops (10 ops/minute) at 75°C
Electrical Life (Resistive load)
UL=5 A @ 250 VAC/30 VDC 6,000 ops ,3 A @ 250 VAC/30 VDC 100,000 ops
Mechanical Life
20,000,000 ops at no load (300 ops/minute)
Power-on Value
Yes, Programmable
Safe Value
Yes, Programmable
