Tiny (1x Isolated RS-232/422/485) Serial-to-Ethernet Device Server. Robust version of tDS-718-T.

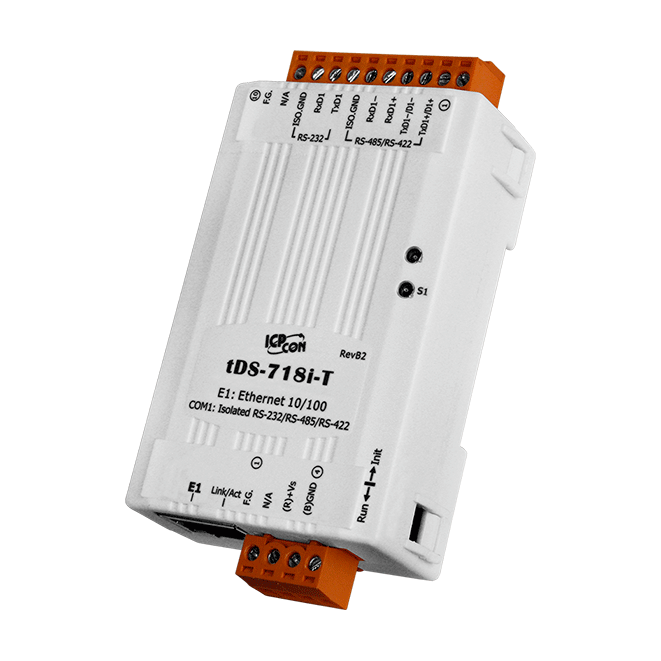

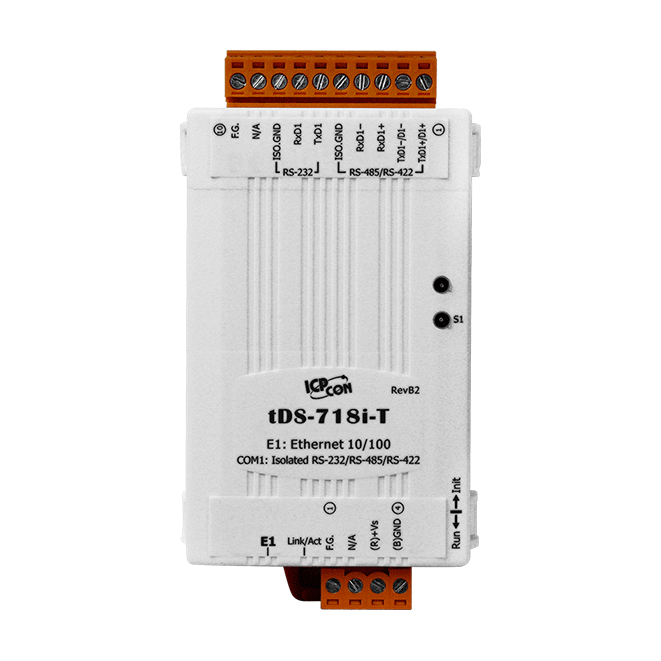

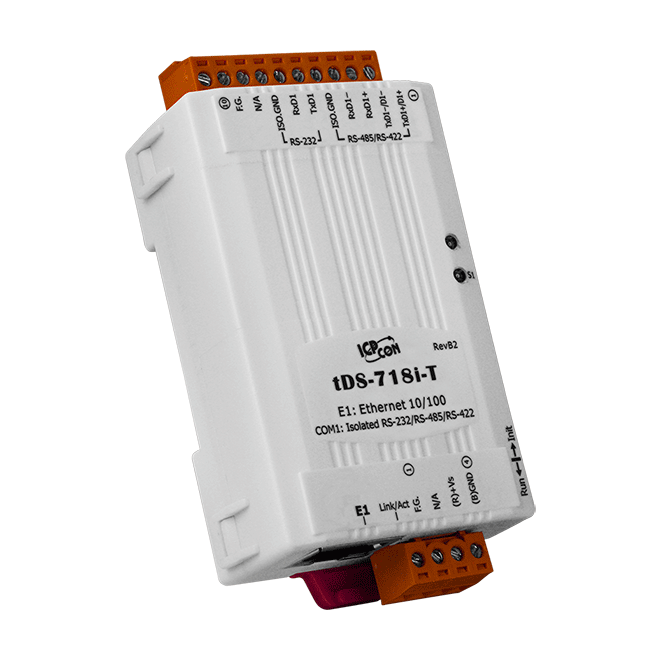

tDS-718i-T

Tiny (1x Isolated RS-232/422/485) Serial-to-Ethernet Device Server. Robust version of tDS-718-T.

  Price:  $249.00

Features

  • Incorporates any RS-232/422/485 serial device in Ethernet
  • Data transmission via Virtual COM or raw TCP connection
  • VxComm Driver for 32- and 64-bit Windows 7 SP1/10/2012/2016
  • Max. connections : 1 socket per serial port is suggested
  • Supports pair-connection (serial-bridge, serial-tunnel) applications
  • Supports TCP client-mode and TCP server-mode operations
  • Supports UDP responder for device discovery (UDP Search)
  • Static IP or DHCP network configuration
  • Easy firmware update via the Ethernet (BOOTP, TFTP)
  • Tiny Web server for configuration (HTTP)
  • Contains a 32-bit MCU that efficiently handles network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Power input: DC terminal block
  • Allows automatic RS-485 direction control
  • 3000 VDC Isolation and +/-4 kV ESD protection for i versions

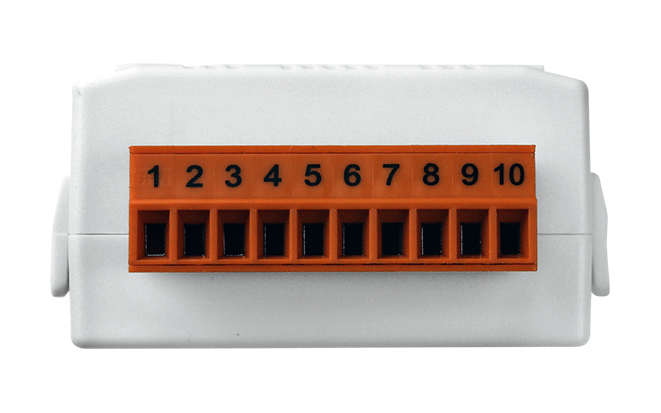

  • Terminal block connector for easy wiring
  • Tiny form-factor and low power consumption
  • RoHS compliant & no Halogen
  • Cost-effective device servers

CE FCC RoHS WEEE

Introduction

The tDS-700 is a series of Serial-to-Ethernet device servers that are designed to add Ethernet and Internet connectivity to any RS-232 and RS-422/485 device, and to eliminate the cable length limitation of legacy serial communication. By using the VxComm Driver/Utility, the built-in COM port of the tDS-700 series can be virtualized to a standard PC COM port in Windows. Therefore, users can transparently access or monitor serial devices over the Internet/Ethernet without software modification.

The tDS-700 device servers can be used to create a pair-connection application (as well as serial-bridge or serial-tunnel), and can then route data over TCP/IP between two serial devices, which is useful when connecting mainframe computers, servers or other serial devices that do not themselves have Ethernet capability. By virtue of its protocol independence and flexibility, the tDS-700 meets the demands of virtually any network-enabled application.

DHCP minimizes configuration errors caused by manual IP address configuration, such as address conflicts caused by the assignment of an IP address to more than one computer or device at the same time. The tDS-700 supports the DHCP client function, which allows the tDS-700 to easily obtain the necessary TCP/IP configuration information from a DHCP server. The tDS-700 also contains a UDP responder that transmits its IP address information in response to a UDP search from the VxComm Utility, making local management more efficient.

The tDS-700 features a powerful 32-bit MCU to enable efficient handling of network traffic. It also has a built-in web server that provides an intuitive web management interface to allow users to modify the settings of the module, including DHCP/Static IP, gateway/mask and serial ports.

Based on an amazing tiny form-factor, the tDS-700 achieves the maximum space savings that allows it to be easily installed anywhere, even directly attached to a serial device or embedded into a machine.

The tDS-700 series also contains a built-in CPU watchdog, which automatically resets the CPU if the built-in firmware is operating abnormally, or if there is no communication between the tDS-700 and the host for a predefined period of time (system timeout). This is an important feature that ensures the tDS-700 operates continuously, even in harsh environments. In addition, the tDS-700 series (for i version) also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protects the module and equipment from the sudden and momentary electric current.

The tDS-700 is designed for ultra-low power consumption, reducing hidden costs from increasing fuel and electricity prices, especially when you have a huge amount of device servers installed. Reducing the amount of electricity consumed by choosing energy-efficient equipment can have a positive impact on maintaining a green environment.

Applications

Factory, Building and Home Automation Remote Diagnosis and Management

Reference & Support

Specifications

CPU Module
CPU 32-bit ARM
COM Ports
Ports 1 x 3-wire RS-232/RS-485/RS-422
Baud Rate 115200 bps Max.
Bias Resistor Yes, 1 KΩ
Parity None, Odd, Even, Mark, Space
Data Bit 5, 6, 7, 8
Stop Bit 1, 2
Node Address 254 (max.)
Ethernet

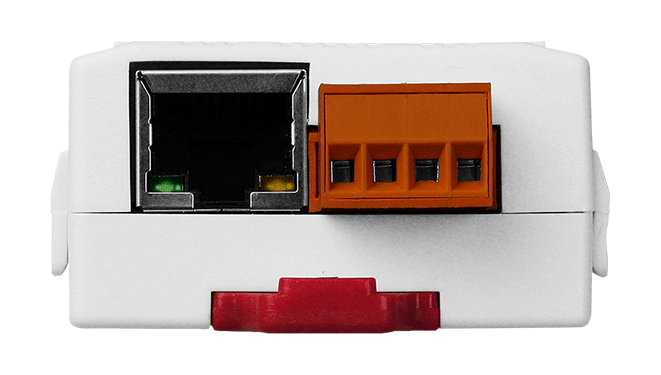

Ports 10/100 Base-TX, 8-pin RJ-45 x 1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
Power
Consumption 0.07 A @ 24 VDC
Powered from Terminal Block +12 ~ 48 VDC
Mechanical
Casing Plastic
Dimensions (mm) 52 mm x 95 mm x 27 mm (W x H x D)

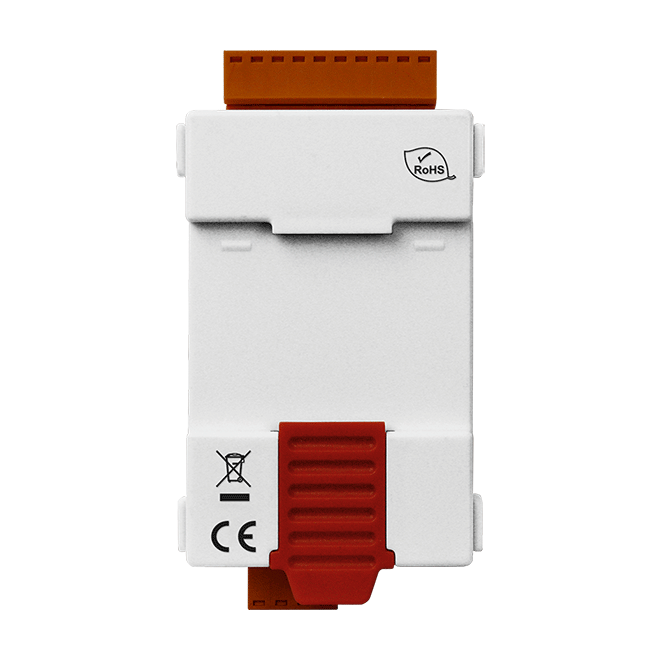

Installation DIN-Rail Mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10% ~ 90% RH, Non-condensing
