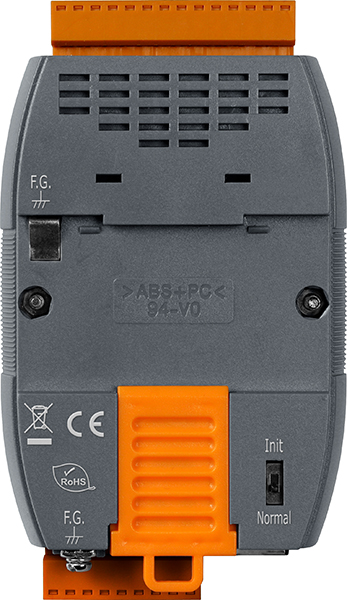

PET-7042
16-channel Isolated Sink Type Open Collector Digital Output PoE Module
Features
The PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the PET-7000 also supports Modbus TCP protocol that makes perfect integration to SCADA software.
Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.
- PoE and Regular Ethernet Options
- Built-In Web Server
- Web HMI
- Modbus TCP, Modbus UDP Protocol
- Communication Security
- Dual Watchdog
- Operating Temperature: -25 ~ +75 °C
- I/O Pair Connection
- Built-In I/O
- DO: 16 Channels
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis, Testing Equipment.
Specifications
Software | |
Built-In Web Server | Yes |
Web HMI | Yes |
I/O Pair Connection | Yes |
Communication | |
Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X |
Protocol | Modbus TCP, Modbus UDP |
Security | ID, Password and IP Filter |
Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
LED Indicators | |
L1 (System Running) | Yes |
L2 (Ethernet Link/Act) | Yes |
L3 (Ethernet 10/100 M Speed) | Yes |
PoE Power | Yes |
2 Way Isolaiton | |
Ethernet | - |
I/O | 3750 Vrms |
EMS Protection | |
ESD (IEC 61000-4-2) | 4 kV Contact for each terminal |
EFT (IEC 61000-4-4) | +/-2 kV for Power |
Power Requirements | |
Reverse Polarity Protectionn | Yes |
Powered from terminal block | Yes, 12 ~ 48 VDC |
Powered from PoE | Yes, IEEE 802.3af, Class1 |
Consumption | 4.3 W |
Mechanical | |
Dimensions (W x L x D) | 72 mm x 123 mm x 35 mm |
Installation | DIN-Rail or Wall mounting |
Environment | |
Operating Temperature | -25 °C ~ +75 °C |
Storage Temperature | -30 °C ~ +80 °C |
Humidity | 10 ~ 90% RH, non-condensing |
I/O Specifications
Digital Output | |
Output Channels | 16 |
Type | Isolated Open Collector (Sink) |
Max. Load Current | 100 mA/channel at 25 °C Direct drive power relay module |
Load Voltage | +5 VDC ~ +30 VDC |
Overvoltage Protection | 60 VDC |
Overload Protection | 1.3 A |
Short-circuit Protection | Yes |
Power On Value | Yes, Programmable |
Safe Value | Yes, Programmable |
