Industrial 10/100 BaseT to 100 BaseFT Fiber Optical Converter *For Multi Mode Use* Supports operating temperatures from -25 to 75°C. Replaced with NS-200AFT-T


Industrial 10/100 BaseT to 100 BaseFT Fiber Optical Converter *For Multi Mode Use* Supports operating temperatures from -25 to 75°C. Replaced with NS-200AFT-T

  Price:  $359.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.


The NS-200FT has officially been phased out and will no longer be available. It has now been replaced by NS-200AFT-T.

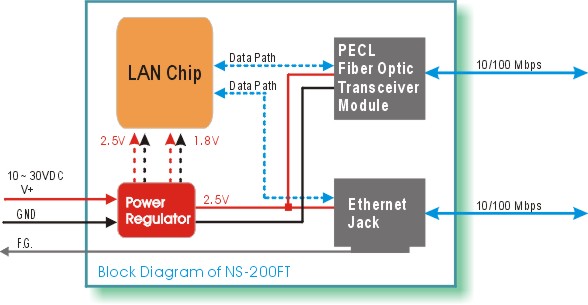

The NS-200FT is a Ethernet(10/100Base-TX) to Fiber Optic(100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDIX function.

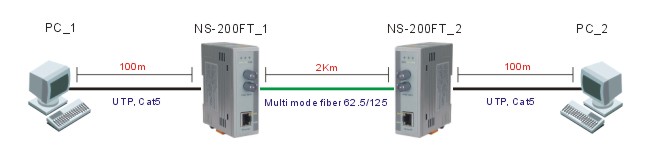

The NS-200FT operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables.

It contains "soft start" function with overload protection, high-low voltage protection.

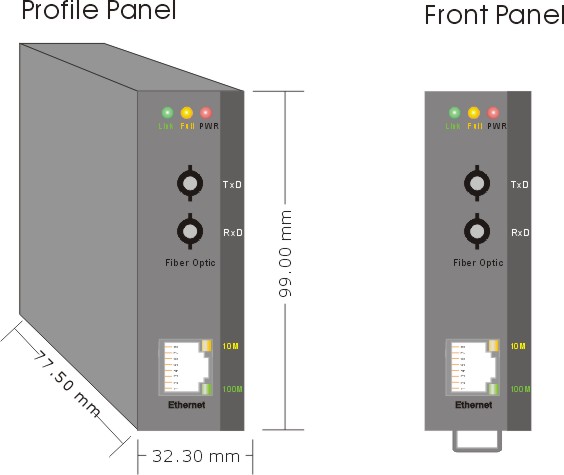

The width of the NS-200FT is just 32.30 mm, so it can be used where space is important.

  • Automatic MDI / MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure flow control
  • 1.4Gbps high performance memory bandwidth.
  • Frame buffer memory : 512 Kbit
  • Integrated look-up engine with dedicated 1 K unicast MAC addresses.
  • MTBF = 438,000 hours ( Temperature is 25 °)
  • MTBCF = 525,600 hours ( Temperature is 25 °)
  • Supports +10~+30Vdc voltage
    Reverse Polarity Protection
  • Supports operating temperatures from 0 ~ +70°C
  • DIN rail mount for industrial usage



Analog Input
Input Channels 8 differential
Input Type +/-500mV, +/-1V, +/-5V, +/-10V
+/-20mA (requires optional external 125ohm  resistor)
Resolution 16-bit (Normal Mode) / 12-bit (Fast Mode)
Sampling Rate 10 samples/ second (Normal Mode) / 60 samples/ second (Fast Mode) total
Accuracy +/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) or better
Band Width 15.7Hz (Normal Mode) / 78.7Hz (Fast Mode)
Zero drift +/-20uV/°C
Span drift +/-25ppm/°C
Input Impedance 2M Ohms
Common Mode Rejection 86dB min.
Normal Mode Rejection 100dB
Over Voltage Protection 240 Vrms
4KV ESD Protection Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic 3000 VDC
Interface RS-485
Format N, 8, 1
Baud Rate 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
Input +10 to +30 Vdc
Power Consumption 1.3W
Support Modbus and DCON Protocol Yes
Operating temperature -25 to 75°C
Storage temperature -40 to 85°C
Humidity 5 to 95% RH, non-condensing
