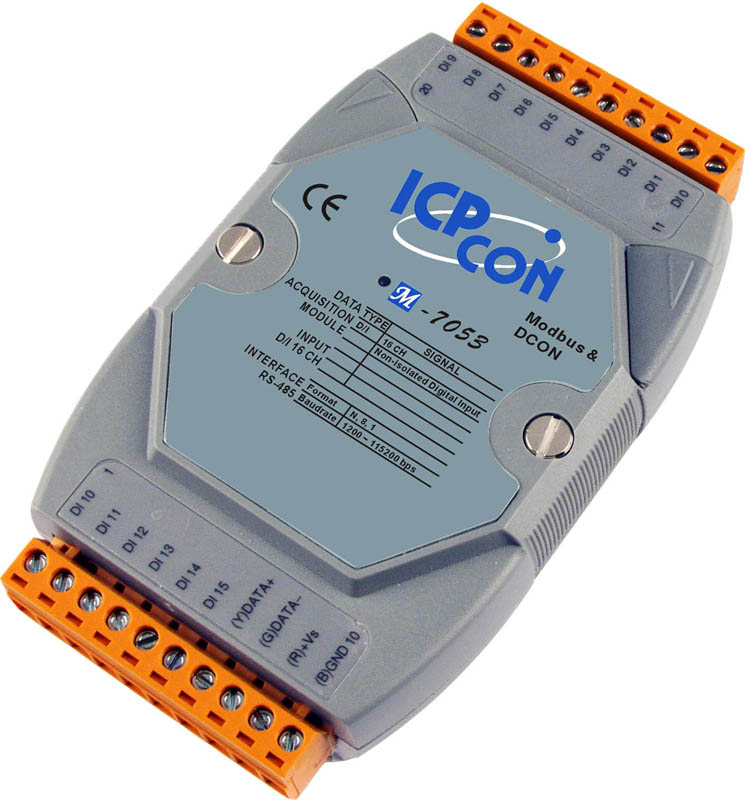

16 Channel Digital Input Data Acquisition Module, communicable over Modbus RTU and RS-485, supports operating temperatures from -25 to 75°C

M-7053

16 Channel Digital Input Data Acquisition Module, communicable over Modbus RTU and RS-485, supports operating temperatures from -25 to 75°C

  Price:  $199.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The M-7053_FG device is a network data acquisition and control modules that support Modbus RTU. They can be remotely controlled using a set of commands called DCON protocol. With the Modbus RTU protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.
  • Communication Interface: ModBus protocol
  • Digital Input Channels: 16
  • D/I can be used as counter channels

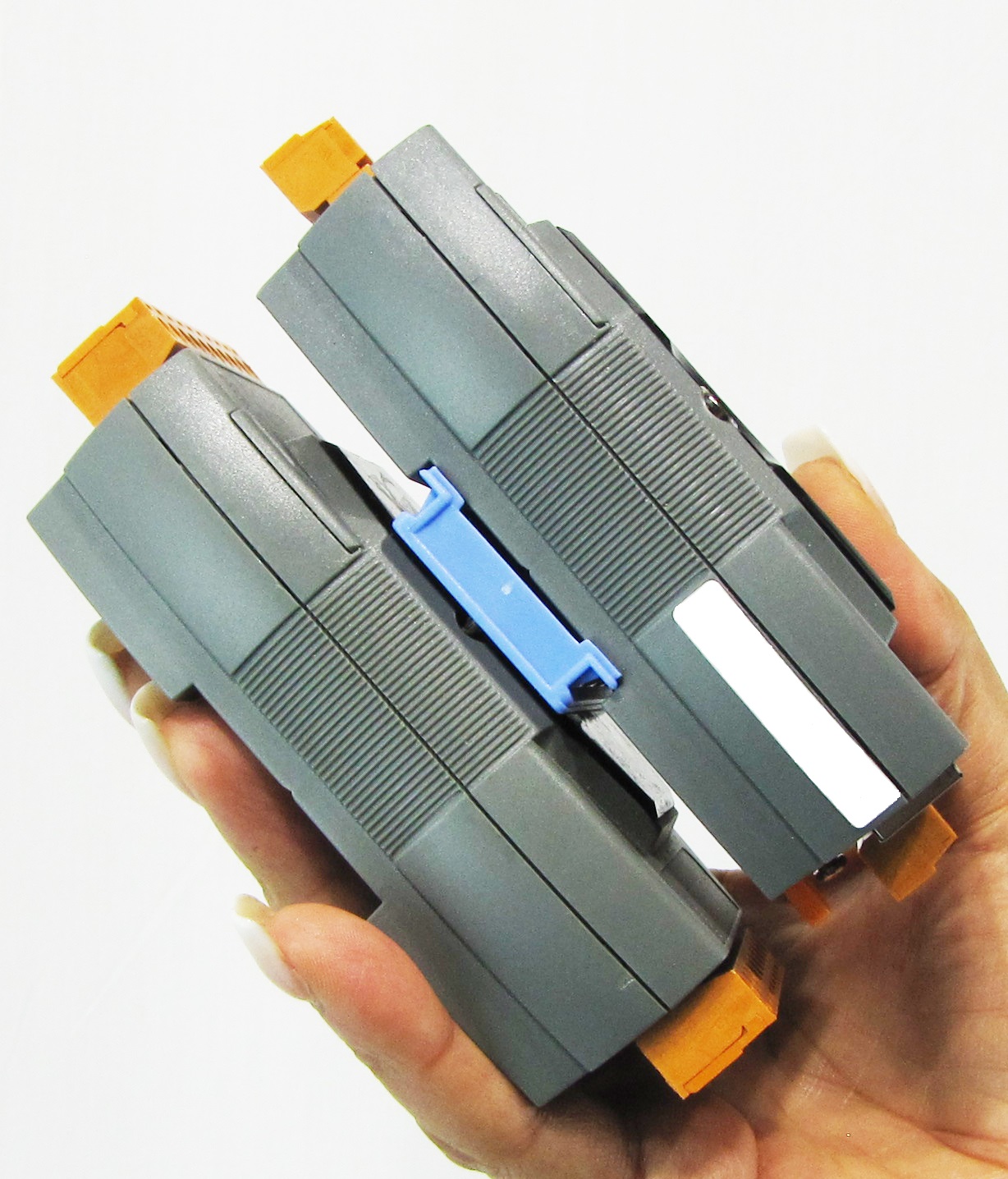

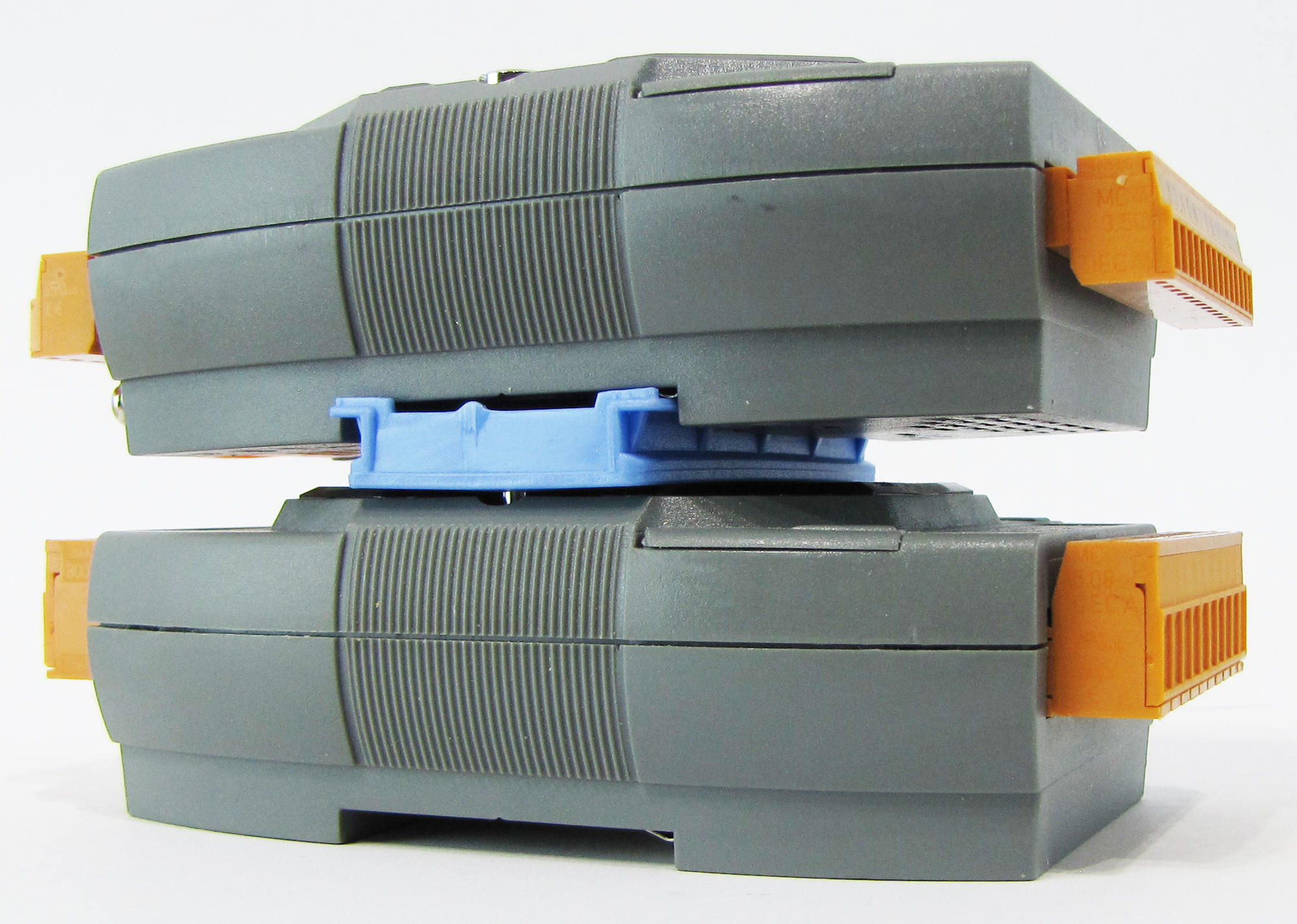

  • Din Rail Mount

Specifications

Digital Input
Channels 16
Input Type Dry Contact
Off Level Close to GND
On Level Open
Effective Distance 500m max.
Power
Input 10~30VDC
Power Consumption 0.7W
Protocol
Support Modbus and DCON Protocol Yes
Environment
Operating Temperature -25 to 75°C
Storage Temperature -40 to 85°C
Humidity 5 to 95% RH, non-condensing
