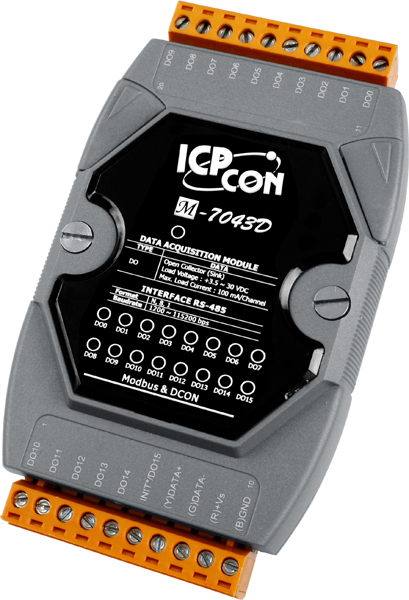

M-7043D
16-channel Non-isolated Digital Output Module with Display. Communicable over Modbus RTU. Comes with Free EZ Data Logger software for Data Logging and Monitoring Applications. Supports Operating Temperatures of -25°C ~ +75°C (-13°F ~ +167°).
Features
The M-7043D offers 16 digital output channels, each of which are non-isolated and support sink-type output using an open collector. It also comes with an LED display for indication of the module status. There are also options to enable both power-on and safe values. They come with configurable power-on value settings and configurable safe value settings. They can be used with our free EZ Data Logger software for data logging and monitoring applications.
- Channels: 16 Digital Output
- LED indicated
- Digital output status
- Open collector to 30V max.
- Output current: 100mA per channel.
- Direct drive power relay module
Specifications
Digital Output | |
Channels | 16 |
Type | Open Collector |
Sink/Source (NPN/PNP) | Sink |
Load Voltage | +3.5 ~ 30 VDC |
Max. Load Current | 100 mA/Channel |
Power-on Value | Yes |
Safe Value | Yes |
Communication | |
Interface | RS-485 |
Bias Resistor | No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
Baud Rate | 1200 to 115200 bps |
Protocol | Modbus RTU, DCON |
Dual Watchdog | Yes, Module (1.6 Seconds), Communication (Programmable) |
LED Indicator / Display | |
System LED Indicator | Yes, 1 LED as Power/Communication Indicator |
I/O LED Indicator | Yes, 16 LED as Digital Output Indicator |
Power | |
Reverse Polarity Protection | Yes |
Input Voltage Range | 10~30VDC |
Power Consumption | 0.4W |
Mechanical | |
Dimensions (L x W x H) | 123 mm x 72 mm x 35 mm |
Storage Temperature | -40 to 85°C |
Environment | |
Operating Temperature | -25 to 75°C |
Storage Temperature | -40 to 85°C |
Humidity | 5 to 95% RH, non-condensing |
