2-channel Analog Input, 1-channel Digital Input and 4-channel Digital Output data acquisition module, supports Strain Gauge, Voltage Input and Current Input. Communicable over Modbus RTU and RS-485. Supports operating temperatures between -25 to 75°C (-13F ~ 167F).

M-7016

2-channel Analog Input, 1-channel Digital Input and 4-channel Digital Output data acquisition module, supports Strain Gauge, Voltage Input and Current Input. Communicable over Modbus RTU and RS-485. Supports operating temperatures between -25 to 75°C (-13F ~ 167F).

  Price:  $489.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

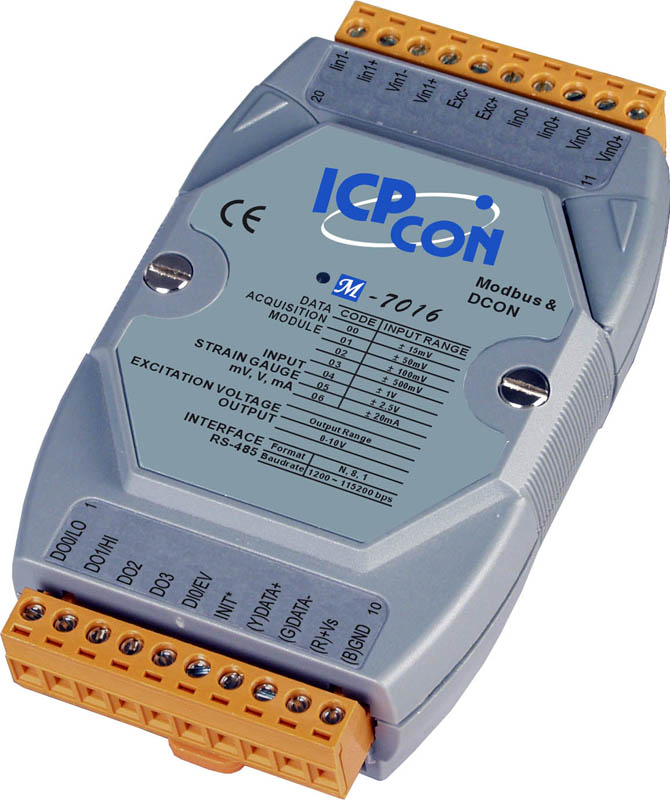

The M-7016 series are the latest strain gauge input modules from ICP DAS. Around our surroundings, there are numerous examples of converting force into a measurable electrical output. In most cases, we need a strain gauge type load cell. How are we going to do to make the most use of the electrical output?

The M-7016 series are definitely your #1 choice! The M-7016 series not only process the data from load cells or strain gauges, but also do linear mapping at the same time for intuitive results; by user-defined corespondent table, the M-7016 series convert the data into weight directly!

In the new models, the M-7016 series support both Modbus RTU & DCON protocols.

  • 2 Analog Input Channels
  • Input Types & Ranges:
    • ±15mV
    • ±50mV
    • ±100mV
    • ± 500mV
    • ±1V
    • ± 2.5V
    • ± 20mA
    • Sampling Rate
      Mode 1 Channel 2 Channels
      Sampling Rate
      samples/sec
      10 2

    • Linear Mapping
      Linear Mapping
    • Excitation Voltage Output : 0 ~ 10V
    • Digital Input : 1 channel; this channel can also be used as a counter.
    • Digital Output : 4 channel; support High/Low alarm output.
    • 4 1/2 digits LED display : For the M-7016D only.
    • Operating temperature: -25°C to 75°C
    • Support both Modbus RTU and DCON protocols.

Specifications

Analog Input
Input Channels 2
Input Type ±15mV, ±50mV, ±100mV,± 500mV , ±1V,± 2.5V, ± 20mA
Resolution 16-bit
Sampling Rate 10 Samples/ Second (one-channel mode)
2 Samples/ Second (two-channel mode)
Accuracy ±0.05% FSR
Band Width 5.24Hz
Zero Drift ±0.5uV/°C
Span Drift 25ppm/°C
Common Mode Rejection 150dB
Normal Mode Rejection 100dB
Overvoltage Protection 10V (P-P)
Input Impedance 20M Ohms
Intra-module Isolation, Field to Logic 3000 VDC
Excitation Voltage Output
Output Channels 1
Output Range 0 to +10V
Max Output Load 40mA
Accuracy ±0.05% of FSR
Drift ±50ppm/ °C
Output Impedance 12 Ohms
Isolation 3000 VDC
Digital Input
Channels 1
Logic Level 0 + 1V max
Logic Level 1 + 3.5V to 30V
Max Input Frequency 50Hz
Min. Pulse Width 1 mS
Digital Output
Channels 4
Output Type Sink, Open collector to 30V
Output Load 30mA max per channel
Power dissipation 300 mW
Interface
Interface RS-485
Format N, 8, 1
Buad Rate 1200 ~ 115200 bps
LED Display
1 LED as Power/ Communication indicator
M-7016D 4 1/2 digits
Power
Input Voltage Range +10 to +30Vdc
Power Consumption 2.4W (M-7016) / 3.0W (M-7016D)
Protocol
Support Modbus and DCON Protocol Yes
Watchdog Yes, Module, Communication (Programmable over DCON)
Environment
Operating temperature -25 to 75°C
Storage temperature -40 to 85°C
Humidity 5 to 95% RH, non-condensing
