32-channel Isolated Digital Output Module. Operating temperature ranges: -25°C to +75°C.

I-9041P

32-channel Isolated Digital Output Module. Operating temperature ranges: -25°C to +75°C.

  Price:  $389.00

Features

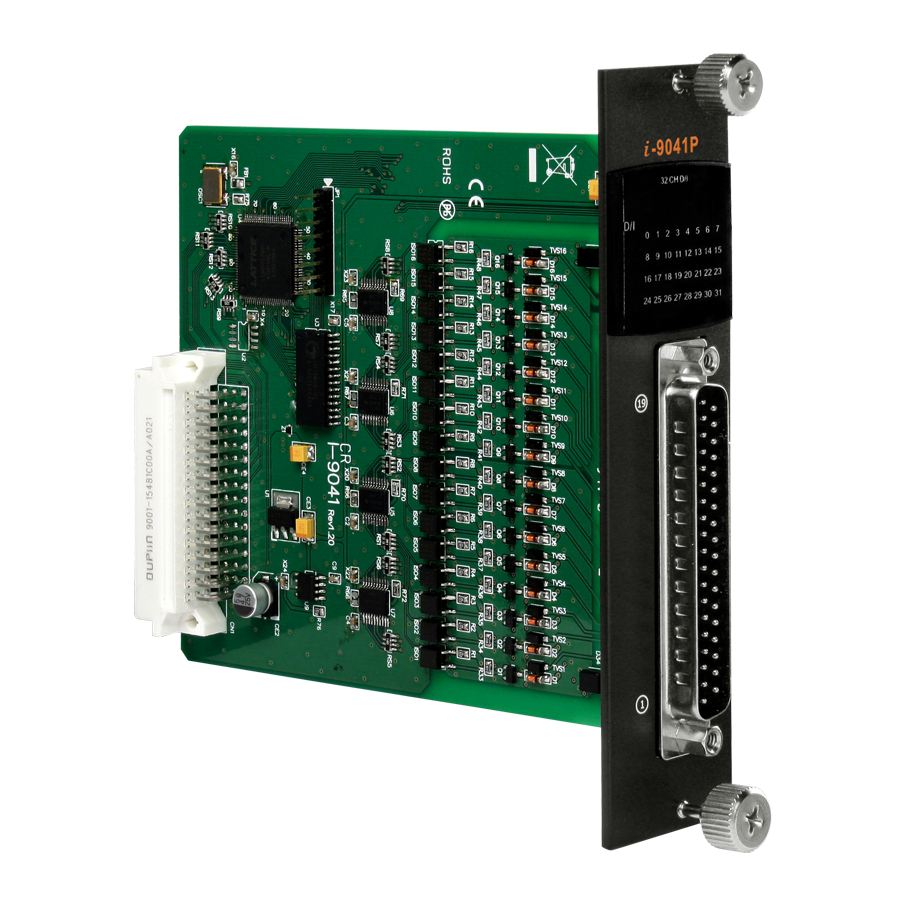

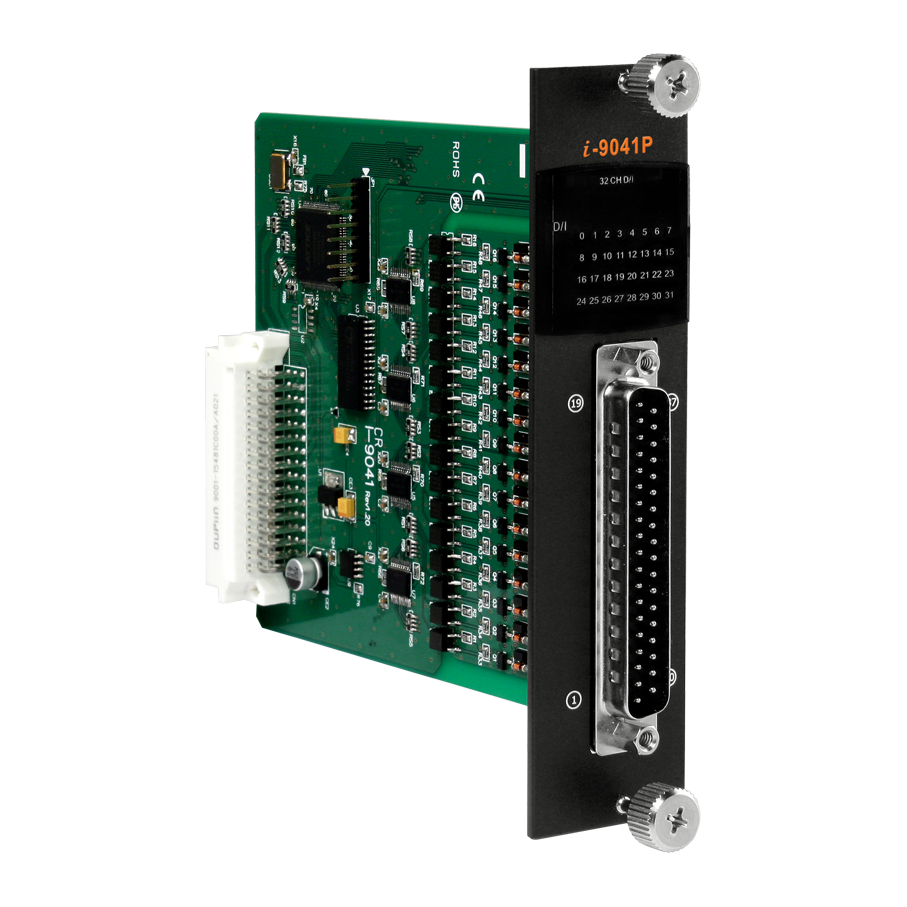

The I-9041P is a 32-channel sink-type digital output module. Each output channel has +10 VDC to +50 VDC signal compatibility, based on the external power supply. The module is equipped with 32 LED indicators are provided to display the on/off status of every channel. Short circuit protection, overvoltage protection and overload protection are also included.

  • 32-channel Open Collector Output
  • Sink-type Digital Output
  • Channel Status LED Indicators
  • Up to 60 VDC Overvoltage Protection
  • Overload Protection
  • Short-circuit Protection
  • 4 kV ESD Protection
  • Optional Daughter Boards for Easy Field Wiring

Reference & Support

Specifications

LED Indicators

System LED Indict

1 LED as Power Indicator

I/O LED Indicator

32 LEDs as Digital Output Indicators

Isolation

Intra-module Isolation, Field-to-Logic

3750 Vrms

EMS Protection

ESD (IEC 61000-4-2)

±4 kV Contact for each Terminal
±8 kV Air for Random Point

Power

Power Consumption

1.5 W Max.

Mechanical

Dimensions (L x W x H)

144 mm x 31 mm x 134 mm

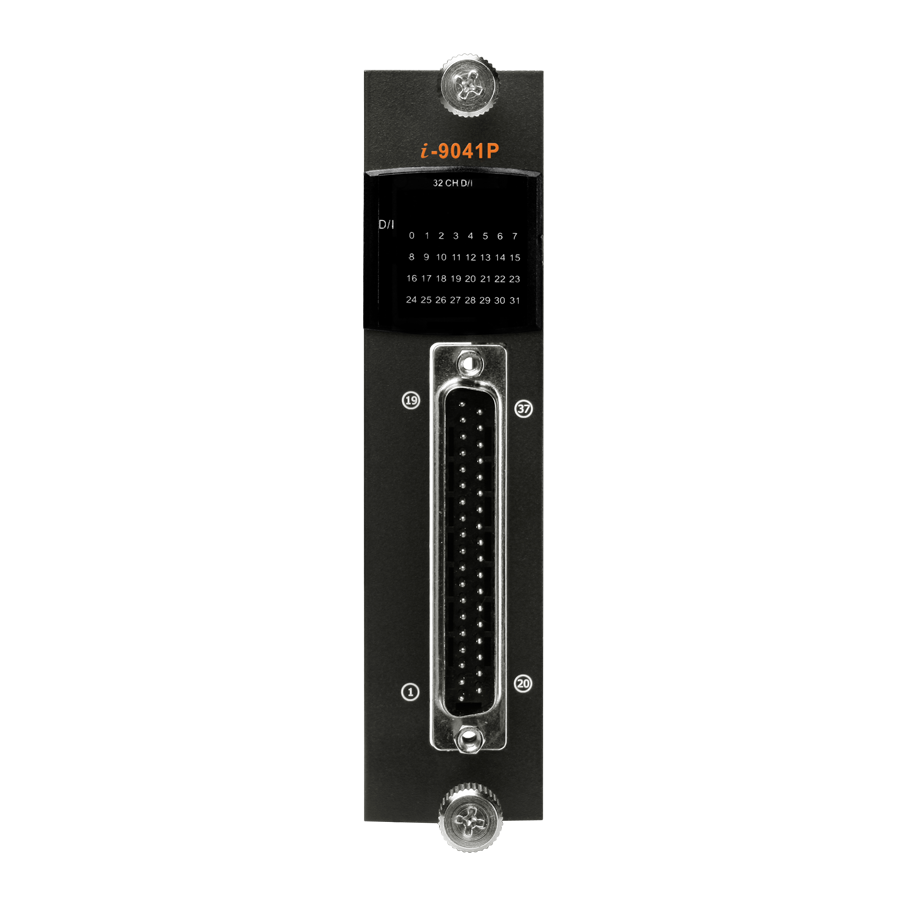

I/O Connector

37-pin D-sub Connector

Environment

Operating Temperature

-25°C ~ +75°C

Storage Temperature

-40°C ~ +85°C

Humidity

10 ~ 90% RH, non-condensing

I/O Specifications

Digital Output

Channels

32

Sink/Source (NPN/PNP)

Sink

Output Type

Isolated Open Collector

Max Load Current

100 mA/Channel

Load Voltage

+10 VDC ~ +50 VDC

Overvoltage Protection

60 VDC

Overload Protection

1.1 A

Short Circuit Protection

Yes
