I-9057P

16-channel Isolated Digital Output Module. Operating temperatures -25°C ~ +75°C.

  Price:  $309.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

References & Support


Features

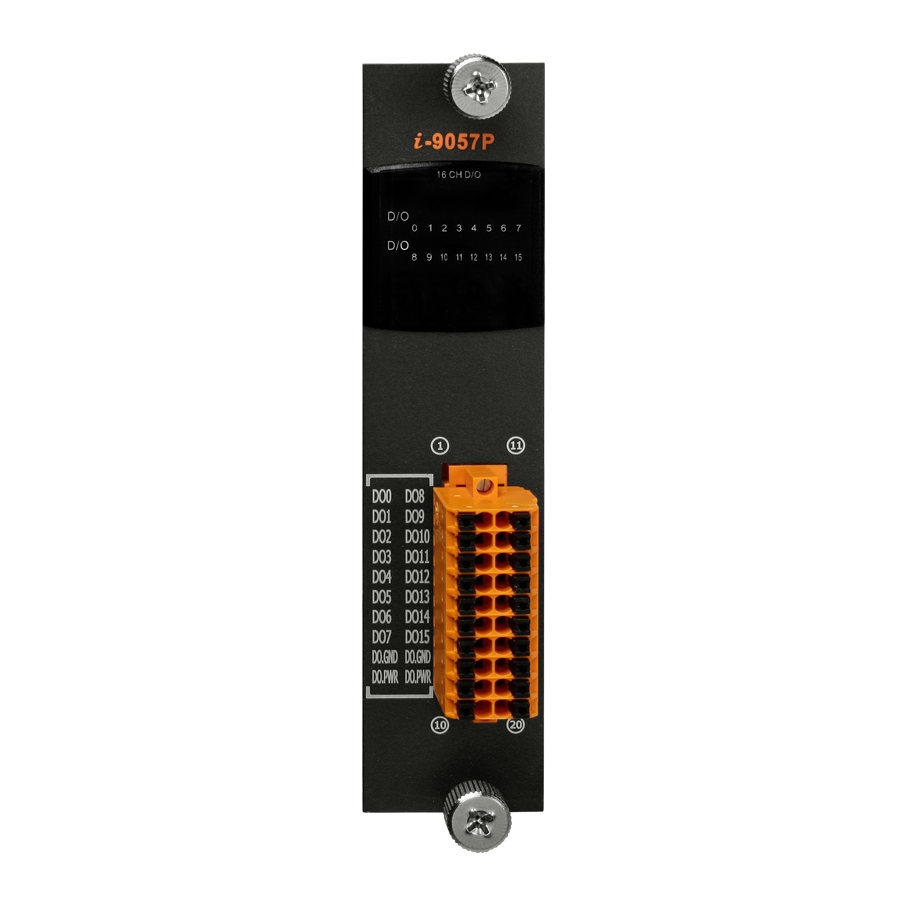

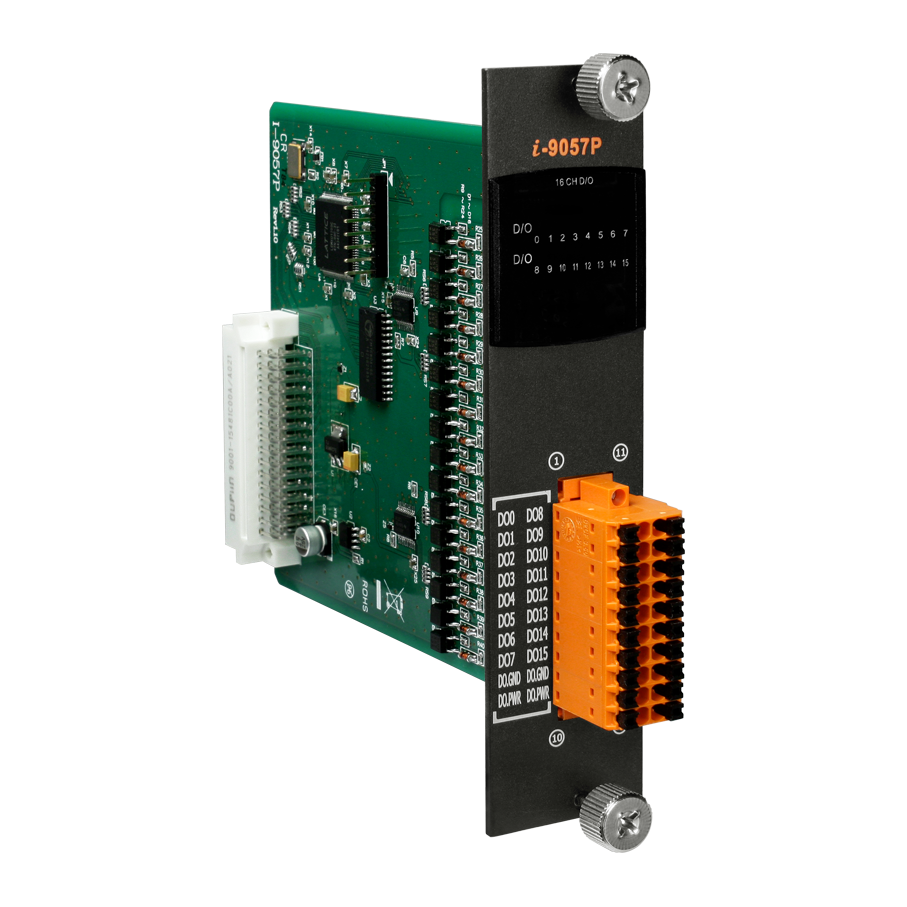

The I-9057P is equipped with 16 digital output channel with Photocouple isolation and supports sink-type output using an open collector. Designed with 16 LED indicators to monitor the status of digital output channels. The I-9057P integrates overcurrent, over-voltage and short-circuits protections for industrial use. 4 kV ESD protection and 3750 Vrms intra-module isolation are also provided as standard.

  • Features: 16-channel Open Collector Output
  • Sink-type Digital Output
  • Channel Status LED Indicators
  • Up to 60 VDC Overvoltage Protection
  • Overload Protection
  • Short-circuit Protection
  • 4 kV ESD Protection

Specifications

LED Display

System LED Indictor

1 LED as Power Indicator

I/O LED Indicator

16 LEDs as Digital Input Indicators

Isolation

Intra-module Isolation, Field-to-Logic

3750 Vrms

EMS Protection

ESD (IEC 61000-4-2)

±4 kV Contact for each Terminal
±8 kV Air for Random Point

Power

Power Consumption

1 W Max.

Mechanical

Dimensions (L x W x H)

144 mm x 31 mm x 134 mm

Environment

Operating Temperature

-25°C ~ +75°C

Storage Temperature

-40°C ~ +85°C

Humidity

10 ~ 90% RH, non-condensing

I/O Specifications

Digital Output

Channels

16

Sink/Source (NPN/PNP)

Sink

Output Type

Isolated Open Collector

Max. Load Current

100 mA/Channel

Load Voltage

+10 VDC ~ +50 VDC

Overvoltage Protection

60 VDC

Overload Protection

1.1 A

Short-circuit Protection

Yes
