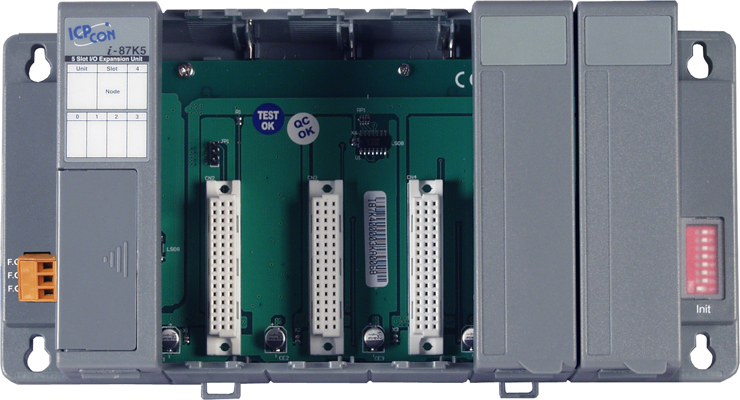

FeaturesBy implementing external serial expansion racks, users are able to easily implement a greater amount of I/O onto an existing industrial control infrastructure. I-87K5 has a serial bus (RS-485) communication interface with DCON protocol. It is equipped with one power module, and 5 Input/Output slots. It is used to expand I/O modules via the RS-485 interface. Only i-87K and m-87K series I/O modules can plug in the unit.
- RS-485, 115.2K BPS max.
- Data+, Data-
- 16550 compatible, 16 bytes FIFO
- directly drive 256 of 7000 modules
- max. distance: 4000 feet (1.2 Km)
- Isolation voltage : 3000Vdc
