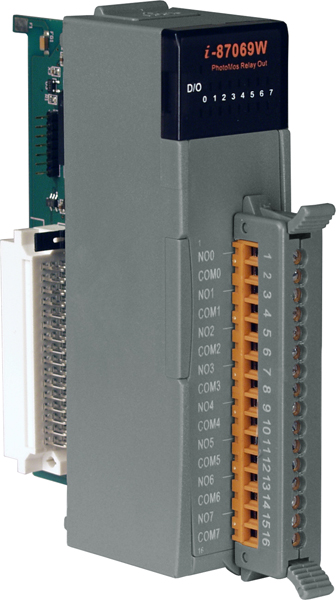

I-87069W
8-channel Photo-Mos Relay Output Module. Replacement for I-87069.
References & Support
Features
I-87069W has a serial bus (RS-485) communication interface with DCON protocol. It can be used with our WinPAC, XPAC, ViewPAC, I-8000 controllers and I-87K, RF-87K I/O expansion units. I-87069W is a Photo Mos Relay Output Module with 8 channels. I-87069W is a serial cartridge based I/O module that offers the ultimate in cost effective flexibility.
Specifications
Digital Output | |
Output Channels | 8 |
Output Type | PhotoMOS Relay, Form A |
Load Voltage | 350V max. at DC/ AC |
Load Current | 0.13A max. |
Turn On Time | 0.7m s (Typical) |
Turn Off Time | 0.05ms (Typical) |
Peak Load Current | 0.4A at 100ms |
Output Off State Leakage Current | 1 uA |
Output On Resistance | 23 Ohms |
Intra-module Isolation, Field to Logic | 5,000Vrms |
4KV ESD Protection | Yes, contact for each terminal |
LED Display | |
1 LED as Power/ Communication Indicator | |
8 LEDs as PhotoMos Relay Output Indicators | |
Power | |
Power Consumption | 0.5W |
Environment | |
Operating Temperature | -25 to 75 °C |
Storage Temperature | -30 to 75 °C |
Humidity | 5 to 95% RH, non-condensing |
Dimensions | |
30mm x 102mm x 115mm(W x L x H) |
