Features
The I-8x1x family of embedded controllers offers an ideal compromise between our I-7188 family of micro controllers, and our W-8000 series PAC controllers. The I-8000 is a flexible and robust solutions for users looking to implement a localized, rack mounted control / data acquisition solution. I-8x1x features include:
Localized, high speed paralell backplane
Equipped with MiniOS7 (ROM-DOS like OS)
Supports IPv4.
Provides full C library functions for: I-8000, I-87K I/O, 7-segment LED display, RTC (real time clock), EEPROM, and more!
Firmware can be updated via the RS-232 port
Supports "VxComm" capabilities for all COM ports (RS-232 and RS-485)
Provides a hardware serial number or an ASICKey to protect designated systems.
Compact I/O Expansion slots allow quick installation of I/O modules
Built-in watchdog circuit
Dual Bus designed to support I-8000 & I-87K series I/O modules
Advanced CAN compatibility with I-8421
Specifications
Processor: AMD 80188 @ 40MHz
SRAM: 256~512Kb (model dependant)
Flash ROM: 256~512Kb (model dependant)
EEPROM: 2Kb
Built-in Watchdog Timer

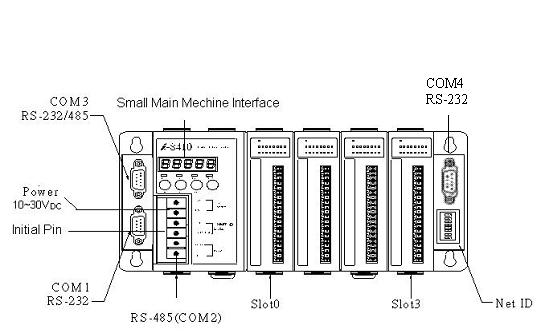

COM0: Internal use
COM1: RS-232/Program download port
COM3: RS-232/485
S-MMI: Small Man Machine Interface (LED Display)
I/O Expansion Slots: 0, 4, 8
Power Supply: 20W / Unregulated +10Vdc to +30Vdc
Din Rail Mount
Environment
Operating Temp.: -25 to 75ºC
Storage Temp.: -25 to 75ºC
Humidity: 5 ~ 95% (non-condensing)
Dimensions
418 x 110 x 75.5 mm
