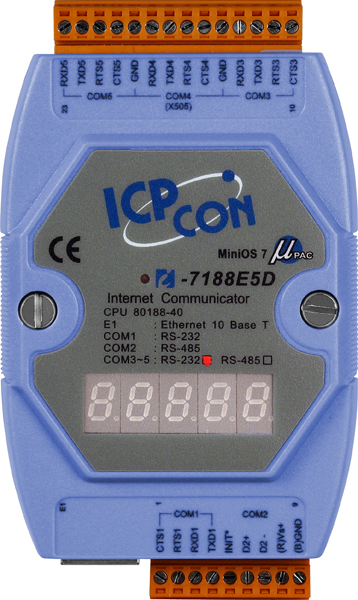

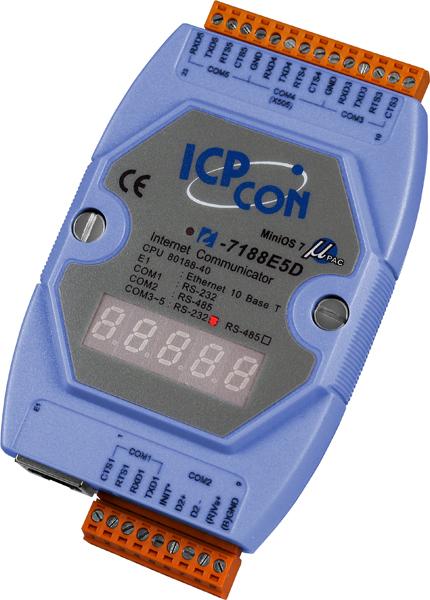

I-7188E5D (with 7 segment display)
5 Serial Ports to Ethernet Converter / Intelligent Controller with 7 segment display, 40 Mhz CPU. MiniOS7 Operating System. Supports operating temperatures between -25 to 75°C.
Features
Model |
CPU |
SRAM |
Flash |
DI |
DO |
Ethernet Port |
COM1 |
COM2 |
COM3 |
COM4 |
COM5 |
COM6 |
COM7 |
COM8 (Note2) |
40M Hz |
384K |
512K |
- |
- |
10 Base-T |
RS-232 (Note1) |
- |
- |
- |
- |
- |
- |
- |
|
I-7188E1D |
||||||||||||||
40M Hz |
384K |
512K |
- |
- |
10 Base-T |
RS-232 (Note1) |
RS-485 (Note3) |
- |
- |
- |
- |
- |
- |
|
I-7188E2D |
||||||||||||||
40M Hz |
384K |
512K |
4 |
4 |
10 Base-T |
RS-232 (Note1) |
RS-485 (Note3) |
RS-422 (Note5) |
- |
- |
- |
- |
- |
|
I-7188E3D
|
||||||||||||||
40M Hz |
384K |
512K |
4 |
4 |
10 Base-T |
RS-232 (Note1) |
RS-485 (Note3) |
RS-232 (Note1) |
- |
- |
- |
- |
- |
|
I-7188E3D-232
|
||||||||||||||
40M Hz |
384K |
512K |
- |
- |
10 Base-T |
RS-232 (Note1) |
RS-485 (Note3) |
RS-232 (Note1) |
RS-232 (Note4) |
- |
- |
- |
- |
|
I-7188E4D
|
||||||||||||||
40M Hz |
384K |
512K |
- |
- |
10 Base-T |
RS-232 (Note1) |
RS-485 (Note3) |
RS-232 (Note1) |
RS-232 (Note1) |
RS-232 (Note1) |
- |
- |
- |
|
I-7188E5D
|
||||||||||||||
I-7188E5-485 |
40M Hz |
384K |
512K |
- |
- |
10 Base-T |
RS-232 (Note1) |
RS-485 (Note3) |
RS-485 (Note3) |
RS-485 (Note3) |
RS-485 (Note3) |
- |
- |
- |
I-7188E5D-485 |
||||||||||||||
I-7188E8 |
40M Hz |
384K |
512K |
- |
- |
10 Base-T |
RS-232 (Note1) |
RS-485 (Note3) |
RS-232 (Note2) |
RS-232 (Note2) |
RS-232 (Note2) |
RS-232 (Note2) |
RS-232 (Note2) |
RS-232 (Note2) |
I-7188E8D |
||||||||||||||
Note1: RS-232, RXD, TXD, CTS, RTS, GND Note2: RS-232, RXD, TXD, GND Note3: RS-485: Data+, Data-;Self-tuner inside Note4: RS-232, RXD, TXD, CTS, RTS, DSR, DTR, DCD, RI, GND Note5: RS-422, TXD+, TXD-, RXD+, RXD- |
Specifications
- CPU: Am188ES CPU @ 40MHz
- SRAM: 384Kb
- Flash Memory: 512Kb. Erase unit is one sector (64K bytes)
- 100,000 erase/write cycles
- NVSRAM: 31 bytes, battery backup, data valid up to 10 years
- EEPROM: 2048 bytes (8 blocks, each block has 256 bytes)
- Data retention: 100 years - 1,000,000 erase/write cycles.
- Real Time Clock
- Ethernet port: 10Base-T
- COM1: RS-232: TXD, RXD, RTS, CTS, GND
- COM2: RS-485: D1+, D1-, self-tuner ASIC inside
- Communication speed: 115,200 bps max.
- User defined I/O pins: 14
- Power requirements: 10 to 30VDC(non-regulated)
- Power consumption:
- 2.0W for I-7188E1, I-7188E2, I-7188E3, I-7188E4, I-7188E5, I-7188E8
- 3.0W for I-7188E1D, I-7188E2D, I-7188E3D, I-7188E4D, I-7188E5D, I-7188E8D
- Operating temperature: -25ºC ~ 75ºC
- Humidity rating: 10~90% non-condensing
- Dimensions: 123 x mm x 72 mm x 33 mm
- I-7188EX/DW: 123 mm x 64.5 mm x 19.6 mm
- Din Rail Mount
