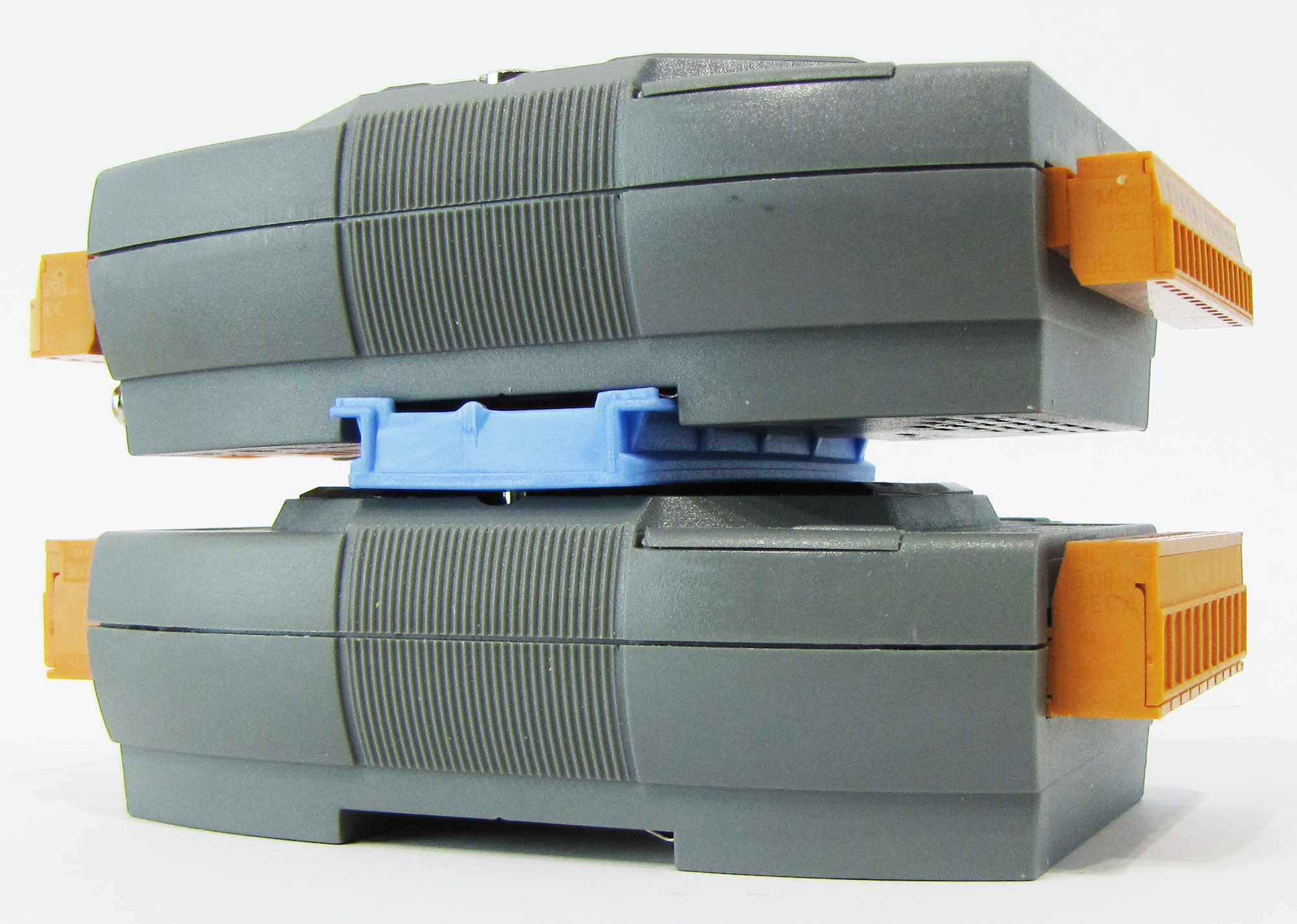

I-7042/D is intelligently designed to provide signal conditioning system monitoring and safe value settings. I-7042/D is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7042 Isolated O.C. Output modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals.
Reference & Support
|Channels||13, Sink, NPN|
|Output Voltage||30V max.|
|Output Current||100mA per channel, Direct drive power relay module|
|Format||N, 8, 1|
|Baud Rate||1200 ~ 115200bps|
|1 LED as Power/ Communication indicator|
|13 LEDs as Digital Output indicators (for I-7042DD)|
|Input Voltage Range||10~30VDC|
|Power Consumption||1.0W (I-7042) / 1.7W (I-7042D)|
|Operating Temperature||-25 to 75°C|
|Storage Temperature||-40 to 85°C|
|Humidity||5 to 95% RH, non-condensing|
