Modbus TCP Server / Modbus RTU Slave to CANopen Master

GW-7433D

Modbus TCP Server / Modbus RTU Slave to CANopen Master

  Price:  $609.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

System Application“Embedded Internet” and “Embedded Ethernet” are hot topics today. Ethernet protocol is standard for local area networks. Via Internet, connectivity is occurring everywhere, from home appliances to vending machines, to testing equipment, to UPS. Ethernet for networks in industrial area is appealing because the required cabling is already installed. The GW-7433D is a solution that provides a communication transformation between CANopen protocol and Modbus/TCP protocol. It solves a mission-critical problem: connecting an existed CANopen network with Ethernet-base master device as long as this master device supports Modbus/TCP protocol. It enables CANopen networks to be coupled together with the Internet/Ethernet, whereby remote monitoring and controlling is achieved.

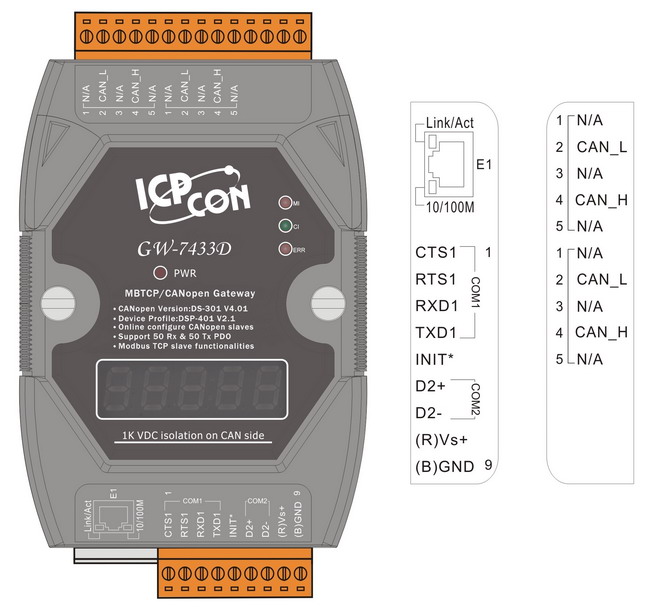

For CANopen networks, the GW-7433D Modbus TCP Server / RTU Slave to CANopen Master is a CANopen master device. It supports PDO and SDO functions to communicate with slave devices. From the view of Modbus/TCP networks, GW-7433D plays a Modbus/TCP server role to receive the commands from Modbus/TCP client or to reply the information to Modbus/TCP client. We provide Utility software for users to configure the parameters of CANopen salves or GW-7433D. When GW-7433D boots up, it will collect the necessary information from all slaves which are predefined in the GW-7433D by using Utility. The following figure shows the application architecture for the GW-7433D.

Features

  • Programmable standard CANopen baud, such as 10Kbps, 20Kbps, 50Kbps, 125Kbps, 250Kbps, 500Kbps, 800Kbps and 1Mbps.
  • Support maximum 50 TxPDO, 50 RxPDO, 15 SDO to SDO server.
  • Support communication object: TxPDO, RxPDO, and server SDO.
  • Support on-line configure CANopen slaves.
  • Communicate with CANopen slaves automatically when GW-7433D boots up.
  • Allow 5 Modbus/TCP masters to access GW-7433D simultaneously.
  • CANopen Version: DS301 V4,01 .
  • Device Profile: DSP-401 v2.0 .

Applications

  • Control Systems
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

GW-7433 Applications

Utility

  • Add/remove CANopen slaves via Ethernet
  • Online getting and setting the CANopen slaves configurations via Ethernet
  • Get/Set Modbus/TCP input/output memory address
  • Display CANopen I/O mapping table
  • Configure the parameters of Ethernet and CAN bus

Modbus TCP

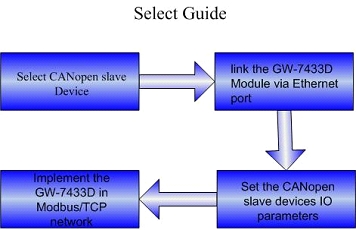

How Do I Use the Gateway?

  1. Select proper CANopen slaves for users’ application.
  2. Use the GW-7433D Utility to link the GW-7433D Module via Ethernet.
  3. Set the IO parameters of CANopen slave devices into GW-7433D by GW-7433D Utility.
  4. The GW-7433D module will initialize automatically and implement the GW-7433D in your Modbus/TCP network.

    Selection Guide

Modbus TCP and RTU Commands Support

Modbus TCP Command Support
Code
Name
Description
01(0x01) Read Coil Status Read the ON/OFF status of discrete outputs in the slave
02(0x02) Read Input Status Read the ON/OFF status of discrete inputs in the slave
03(0x03) Read Holding Registers Read the binary contents of holding registers in the slaves
04(0x04) Read Input Registers Read the binary contents of input registers in the slaves
05(0x05) Force Single Coils Forces one coil in a sequence of coils to either ON or OFF
06(0x06) Preset Single Register Preset an integer value into a single register.
15(0x0F) Force Multi Coils Forces each coil in a sequence of coils to either ON or OFF
16(0x10) Preset Multi Registers Preset value into a sequence of holding registers

Specifications

GW-7433D
CPU RDC 80186-80 Embedded CPU, or compatible
Flash 512K bytes
SRAM 512K bytes
EERROM 16K bytes
Ethernet port 10/100 Base-T
Real Time Clock Year-2000 compliance; seconds, minutes, hours, date of the month, year, valid up from 1980 to 2079

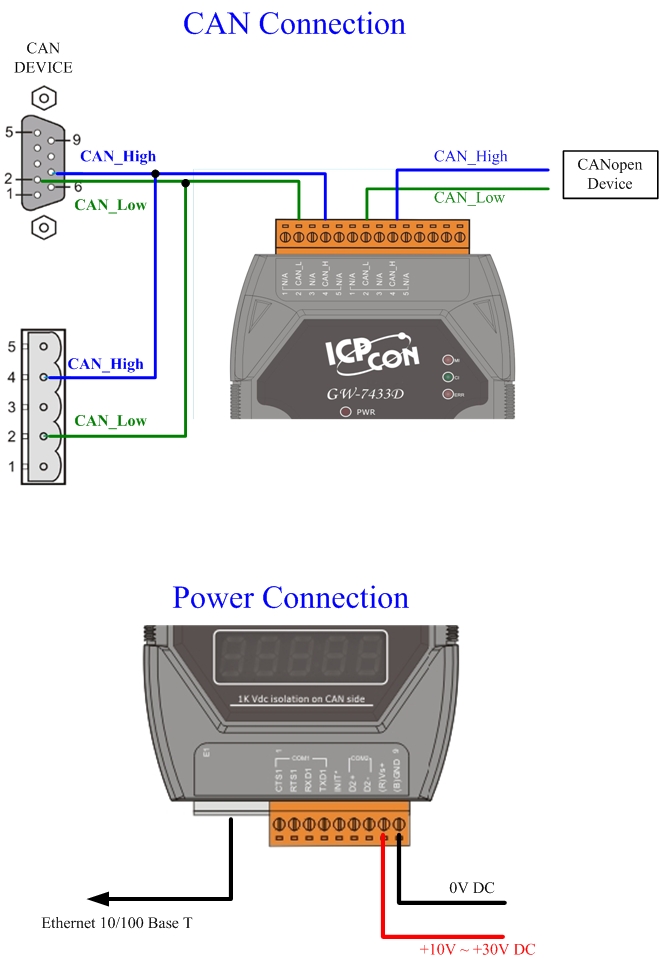

CAN Signal Support CAN_H, CAN_L
Connecter 5-pin screw terminal connecter
Power Consumption 3W
COM1 N/A
COM2 N/A
COM Speed N/A
CAN Controller Phillips SJA1000T CAN Controller
CAN Transceiver Phillips 82C250 CAN Transceiver
LED Directors MI, CI, ERR
Display 7-segment LED: 5 digits
Isolated 2500Vrms on CAN side
Reauired Supply Voltage +10 ~ +30VDC
Operating Temp -25°C to 75°C
Storage Temp -40°C to 85°C
Himidity 5 ~ 95%
Dimensions 122 mm x 72 mm x 33 mm
