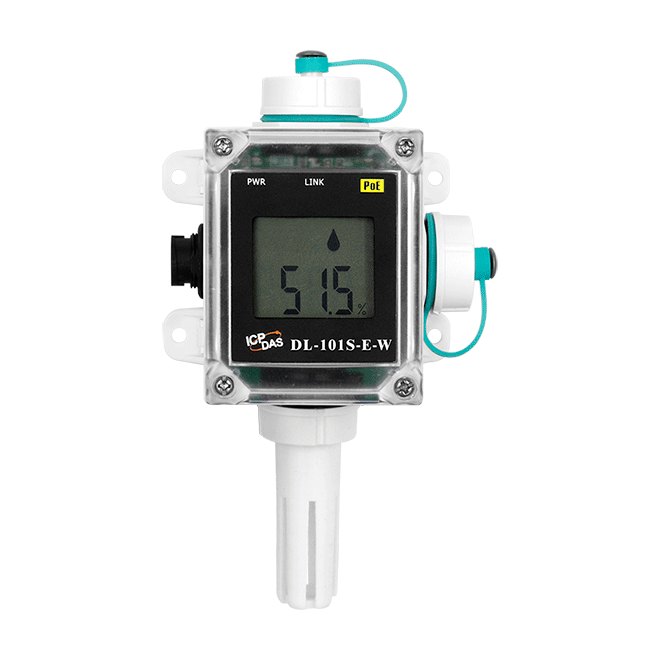

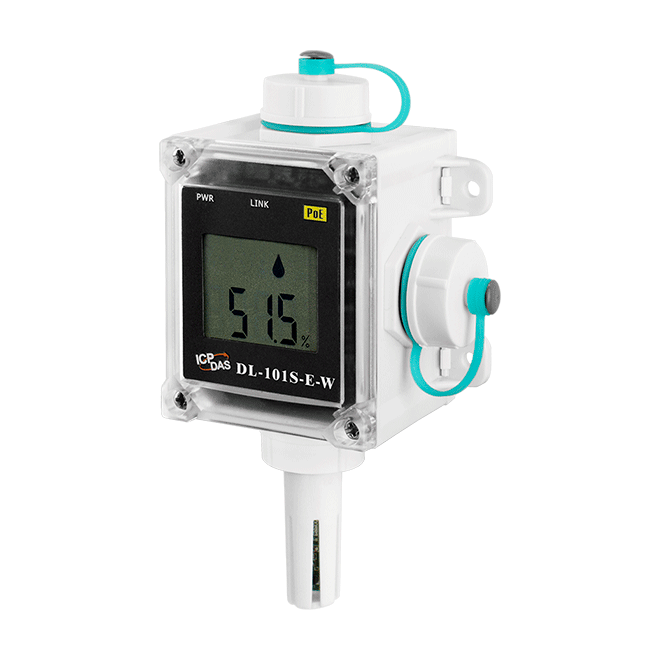

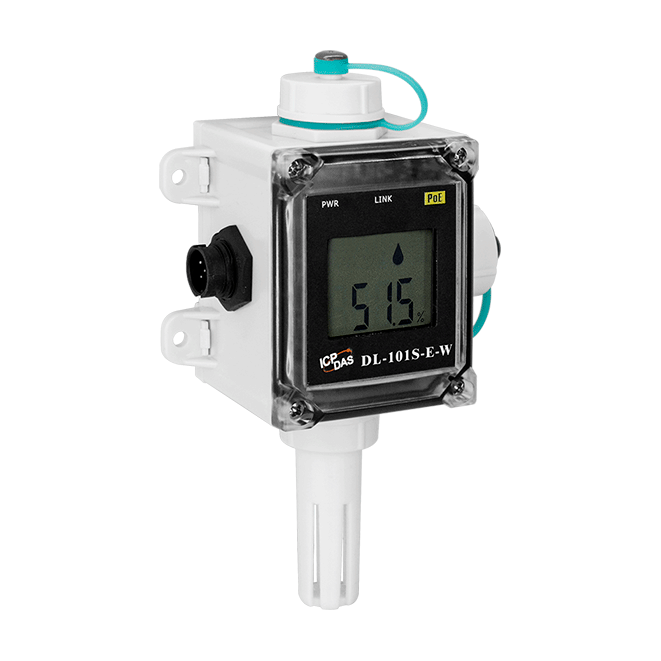

IP66 Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm, Using Modbus TCP and MQTT Protocols


IP66 Remote Temperature/Humidity/Dew Point Data Logger with Safety Alarm, Using Modbus TCP and MQTT Protocols

  Price:  $349.00


  • Measurement Range: -20 to +60°C and 0 to 100% RH
  • LCD Display Shows Temperature, Relative Humidity, Date and Time
  • Able to store up to 600,000 records with date and time stamps
  • Free Software Utility, iOS APP and Android App Included
  • Supports the Modbus TCP and MQTT Protocols
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input (DL-101S-E and DL-101S-E-W Only)
  • PhotoMOS Relay Output for Alarm Devices or IAQ Device Control (DL-101S-E and DL-101S-E-W Only)
  • Supports Web Confi guration and Firmware Update via Ethernet
  • IP66 Protection Approval
  • DIN-Rail or Wall Mounted



The DL-100S-E/DL-101S-E series of Data Logger devices can be used to record temperature, humidity and dew point information, including the date and time stamps for each record, with up to 600,000 downloadable records able to be stored. Real-time data can be accessed from the DL-100S-E/DL-101S-E Data Logger from anywhere and at any time using the free Windows software, the iOS App, or the Android App, as long as it is connected to the same local network as the Data Logger. The DL-100S-E/DL-101S-E Data Logger supports popular industrial protocols such as Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol – MQTT. The DL-100S-E/DL-101S-E Data Logger can be connected using a range of communication interfaces including Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, ensuring easy maintenance in a distributed control system.

Multi-platform Remote Access Software

Real-time data from the DL-100 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as it is connected to the same local network as the Data Logger.


Supports the MQTT Protocol for IoT


Free and Powerful DL300 Utility

The DL300 Utility can be used to configure the modules, monitor real-time data, or group DL-100 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.




  • Transportation of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Blood stations, pharmacies
  • Building and energy management
  • Warehouses
  • Museums, archives, galleries


Reference & Support


CPU Module
Real Time Clock Yes
Watchdog Timer Yes, Module, Communication (Programmable) System
LCD Information Displayed Temperature (°C and °F), Humidity (RH), Relative Humidity, Date and Time
Security Password and IP Filter
LED Indicators
Status PWR: System indicator (Green)
Link: Link/Act indicator (Green)
PoE: PoE indicator (Red)
Temperature Measurement
Range -20 ~ +60°C (-31 ~ +176°F)
Resolution 0.1°C
Accuracy ±0.4°C
Humidity Measurement
Accuracy ±3% RH @ 20 to 80% RH
Range 0 ~ 100% RH
Resolution 0.1%RH
Data Logger Yes, 600,000 Records
PhotoMOS Relay Output Form Ax2, SPST 100 VDC @ 1 A Electrical
COM Ports
Ports Modbus TCP, MQTT
Protocol Modbus TCP, MQTT
Ports 10/100 Base-TX with Auto MDI/MDI-X
PoE Yes, (IEEE 802.3af, Class 1)
Consumption PoE: 0.7 W Max.
Non-PoE: 0.6 W Max.
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block +12 ~ +48 VDC
Dimensions (mm) 100 x 157 x 56 (W x L x H)
Installation DIN-Rail; Wall mount
Ingress Protection Rating IP66
Operating Temperature -20 ~ +60°C
Storage Temperature -30 ~ +80°C
Humidity 5 ~ 95% RH, Non-condensing
