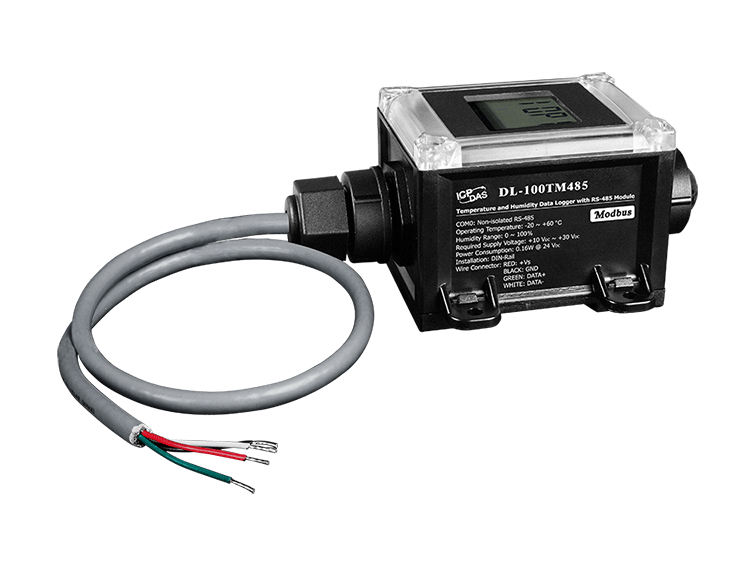

DL-100TM485
IP66 Remote Temperature and Humidity Data Logger with LCD Display (RS-485)
Features
- Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
- Accuracy:
- ±0.4°C; ±3.0% RH for non-P verison
- ±0.3°C; ±1.8% RH for P version
- LCD Display Shows Temperature, Humidity and Module ID
- 10 ~ 30 VDC Power Input
- IP66 Waterproof
- Data Logger Can Store Up to 4088 Temperature and Humidity Records
- RS-485 Communication interface
- DCON or Modbus RTU Protocol
- Windows Software Included
Introduction
The DL-100TM485 is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of temperature, humidity and module ID data. The data storage memory can store up to 4088 temperature and humidity records. The Data Logger Utility is included to allow installation, configuration, retrieval and display of data in a powerful chart format that can be exported to Excel.
Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Warehouses
- Museums, archives, galleries
Specifications
Data Logger | |
Mode | Overwrite or stop logging when storage space is full |
Time Interval | 10 seconds to 1 day |
Overwrite Limitation | 1,000,000 cycles |
Max. Records | 4088 temperature and humidity records |
Display | |
LCD Information Displayed | Temperature (°C and °F), Humidity (RH), Module ID |
Temperature Measurement | |
Range | -20 ~ +60°C (-4 ~ +140°F) |
Resolution | 0.1°C |
Accuracy | Typical: ±0.4°C |
Precision | ±0.1°C |
Humidity Measurement | |
Accuracy | Typical: ±3% RH @ 20 ~ 80% RH |
Precision | ±0.1°C |
Range | 0 ~ 100% RH |
Resolution | 0.1°C |
COM Ports | |
Ports | 1 x RS-485, Non-isolated |
Baud Rate | 1200 ~ 115200 bps |
Data Format | (N, 8, 1) |
Protocol | Modbus RTU |
Max. Connection | 32 |
Power | |
Input Range | +10 ~ +30 VDC |
Consumption | 0.15 W |
Mechanical | |
Dimensions (mm) | 82 x 126 x 55 (W x L x H) |
Installation | DIN-Rail; Wall mount |
Ingress Protection Rating | IP66 |
Environmental | |
Operating Temperature | -20 ~ +60°C |
Storage Temperature | -30 ~ +80°C |
Humidity | 5 ~ 95% RH, Non-condensing |
