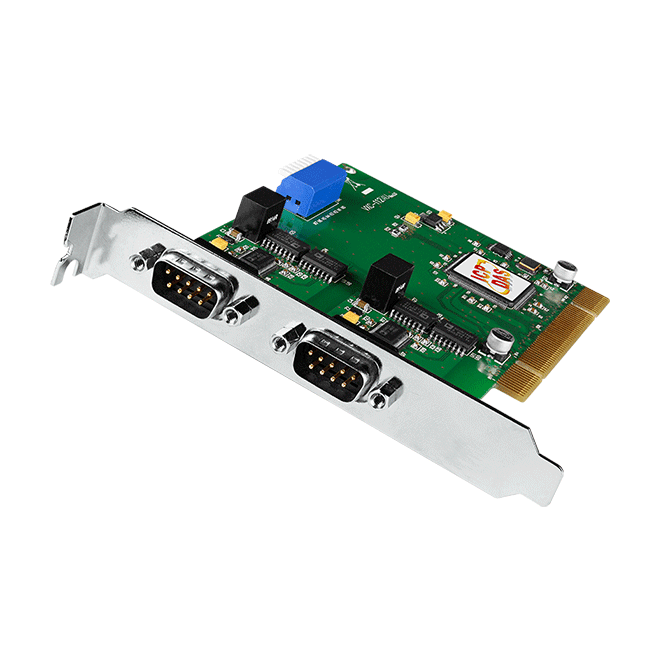

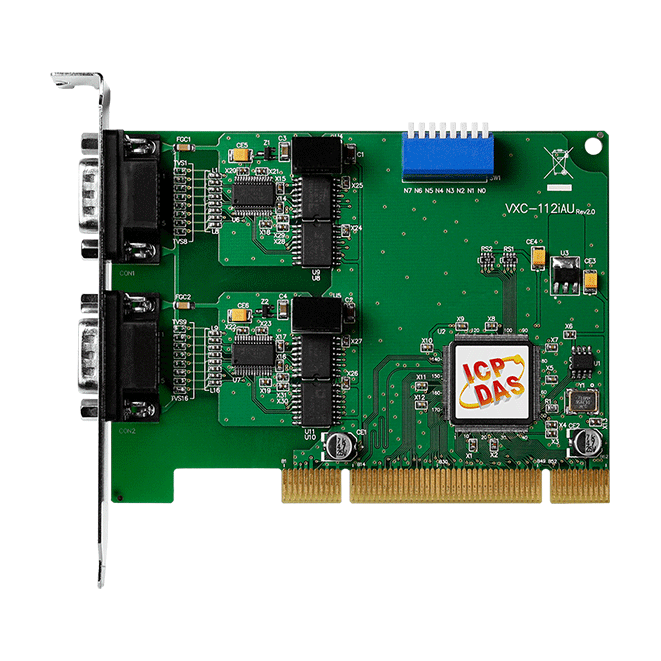

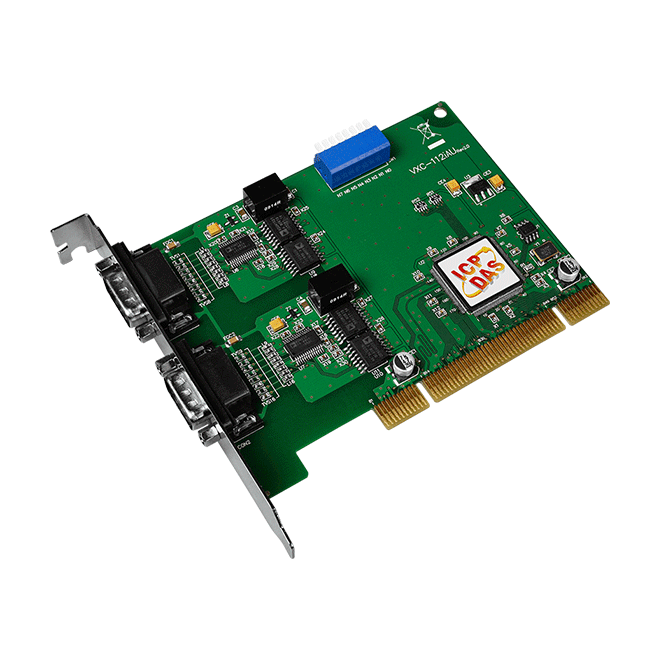

Universal PCI, Serial Communication Board with 2 Isolated RS-232 ports. PCI counterpart of VEX-112i.

VXC-112iAU

Universal PCI, Serial Communication Board with 2 Isolated RS-232 ports. PCI counterpart of VEX-112i.

  Price:  $249.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

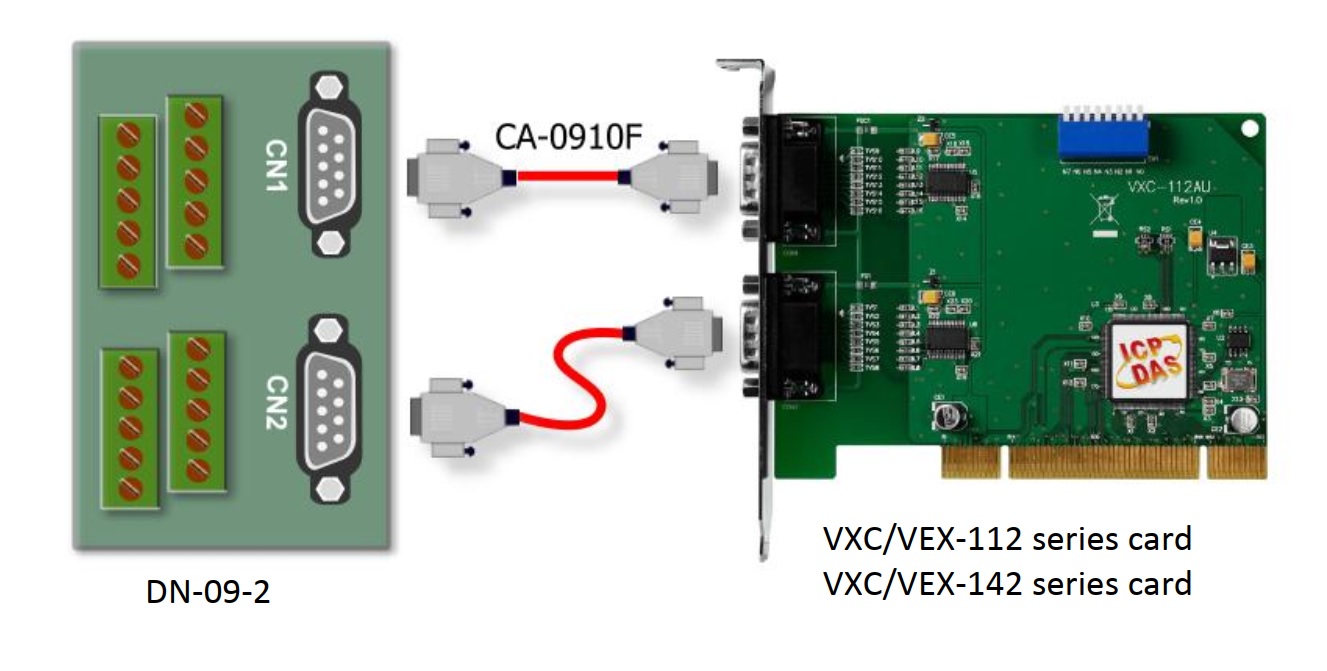

Application Image of

The VXC-112 series card provides 2 RS-232 serial ports. It is equipped with a 128-byte hardware FIFO for each port, supports for speed up to 115200 bps and supports full-duplex communication.
Users may specify a COM port number manually by setting DIP switch, or let the driver choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.
The data lines of each serial ports on i version VXC cards come with photocouplers design. The on-board photo couplers use a short optical transmission path to transfer a signal between elements of a circuit, and keep the data lines electrically isolated. It can help cutting down on ground loops, common mode voltages and block voltage spikes, provide electrical isolation, and offer significant protection from serious over-voltage conditions in one circuit affecting the other.
In harsh industrial environments, the on-board ESD protection component (for i version) diverts the potentially damaging charge away from sensitive circuit to protects the computer and equipment from the sudden and momentary electric current.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.


  • Supports 3.3 V/5 V PCI bus
  • Provides 2 RS-232 ports
  • Built-in COM-Selector
  • 128 KB Software Buffer (max.) for Each COM Port Under Windows
  • 128-byte Hardware FIFO for Each Port
  • ±4 kV ESD Protection for i versions
  • 2500 VDC Isolation for i versions
  • Short Card Design

CE FCC RoHS WEEE

Specifications

Hardware
COM-Selector
Yes (8-bit DIP switch)
Connector
2 x DB9 (Male)
COM Ports
Ports
2 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND)
Baud Rate
50 ~ 115200 bps
Parity
None, Even, Odd, Mark, Space
Data Bit
5, 6, 7, 8
Stop Bit
1, 1.5, 2
FIFO Size
Internal 128 bytes
Isolation
2500 VDC
Power
Consumption
480 mA @ 5 V
Mechanical
Dimensions
90 x 134 x 22 (W x L x D)
Environment
Operating Temperature
0 ~ +60°C
Storage Temperature
-20 ~ +70°C
Humidity
5 ~ 85% RH, non-condensing
