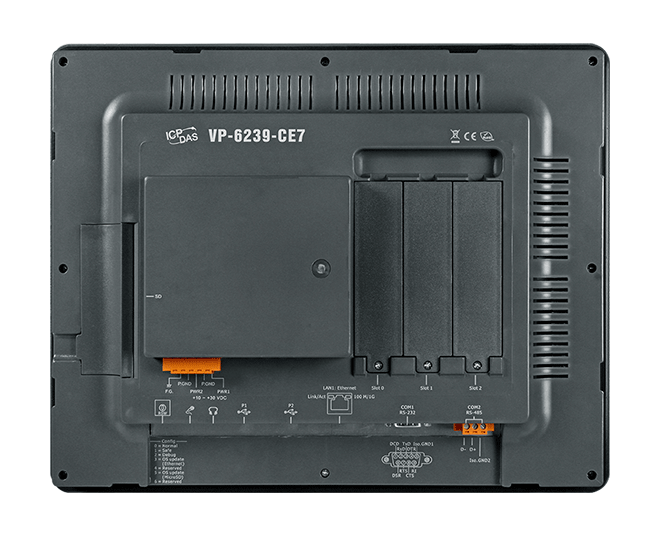

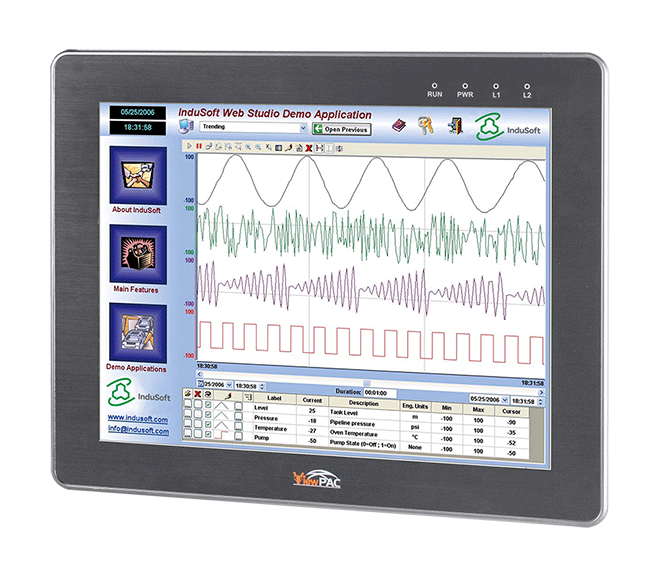

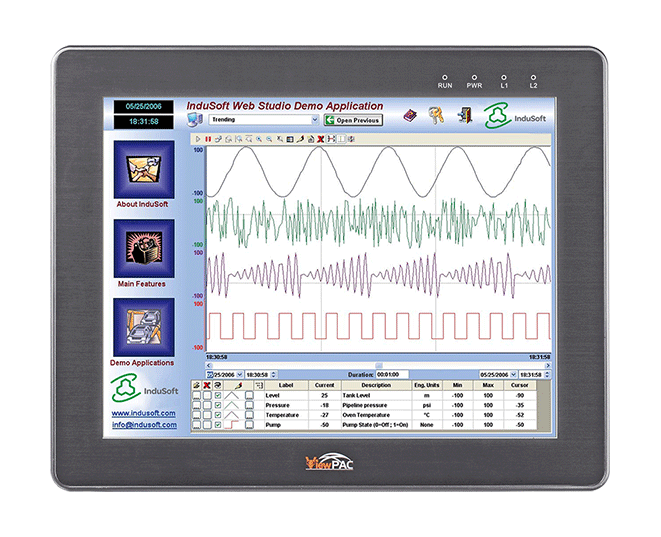

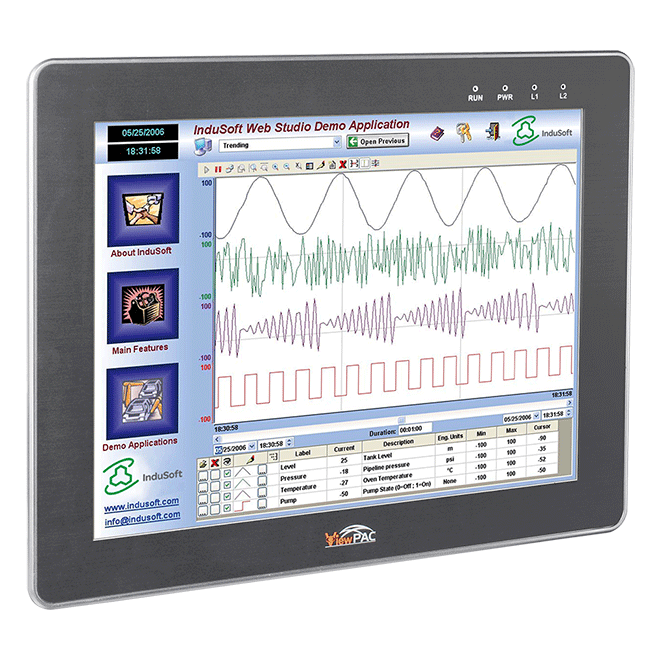

15'' LCD InduSoft (300 tags) Based ViewPAC with 3 I/O slots

VP-6239-CE7

15" LCD InduSoft (300 tags) Based ViewPAC with 3 I/O slots

  Price:  $3,899.00

Features

  • Cortex-A8 CPU (32-bit & 1 GHz)
  • IP65 Compliant Front Panel
  • 5.7"/10.4"/15" TFT LCD (5.7/10.4/15 LCDs are with Touch Panel)
  • Rubber Keypad with 6 Keys
  • Audio with MIC-In and Line-Out
  • 64-bit Hardware Serial Number for Software Protection
  • 3 Slots for High Profile I/O Modules
  • Rich I/O Expansion Ability
    • Ethernet
    • RS-232/422/485
    • FRnet
    • CAN bus
  • MRAM (128 KB)
  • One Ethernet Port
  • 2 Serial Ports (RS-232, RS-485)
  • Operating Temperature: -20 ~ +70°C

RoHS WEEE

Introduction

VP-1239-CE7 / VP-4239-CE7 / VP-6239-CE7 is the new generation WinCE based InduSoft PAC of ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a Cortex-A8 CPU (1GHz) running Windows CE .NET 7.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 5.7" TFT LCD and a rubber keypad. Its operating system, Windows CE .NET 7.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. InduSoft Web Studio Runtime is also pre-installed. InduSoft Web Studio is a powerful, integrated collection of automation tools that includes all the building blocks needed to develop modern Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems, and embedded instrumentation and control applications. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

Reference & Support

Specifications

Software
OS Windows CE.NET 7.0
Protocol Support Web HMI function, PC running Internet Explorer can access to the VP-1239-CE7 via Intranet, Internet, or dial modem.
Service FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Dll for VC, Dll for Visual Studio.Net 2008
Main Unit
CPU Cortex-A8 (32-bit and 1 GHz)
64-bit Hardware Serial Number Yes
System Memory SDRAM 128 MB
Non-Volatile Memory MRAM 128 KB; EEPROM 16 KB
Storage Flash 256 MB; microSD socket with one 4 GB microSDHC card (support up to 32 GB microSDHC card)
Real Time Clock Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079
Watchdog Timer Yes
Display
Size 15" TFT (Resolution 640 x 480)
Touch Panel Yes
LED Indicators
Status 3 x Power and Communication
I/O Expansion
Slots 3
COM Ports
Ports 1 x RS-232, Non-isolated; 1 x RS-485 (2500VDC Isolated)
HMI
Rotary Switch Yes (0 ~ 9)
Rubber Keypad 6 Keys
Audio
Cable Microphone-In and Earphone-Out
Ethernet
Ports 1 x RJ-45, 10/100/1000Base-TX
USB
Connector 2 x USB
Power
Input Range +10 VDC ~ +30 VDC
Consumption 7.2 W (0.3 A @ 24 VDC)
Mechanical
Dimensions (mm) 182 x 158 x 125 (W x L x H)
Ingress Protection Rating Front panel: IP65
Environmental
Operating Temperature -20 ~ +70°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing
