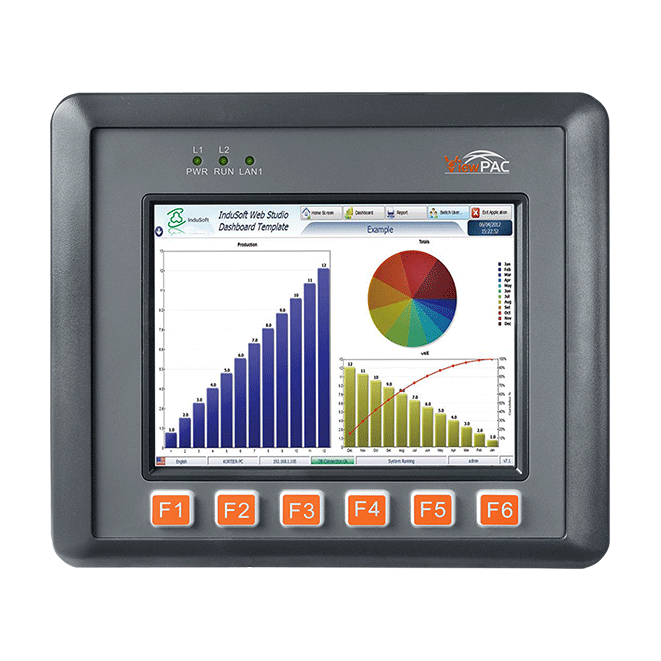

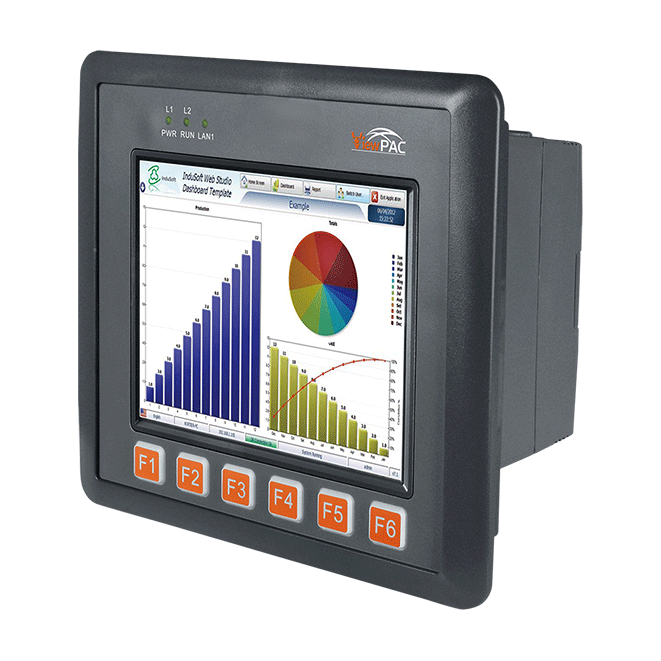

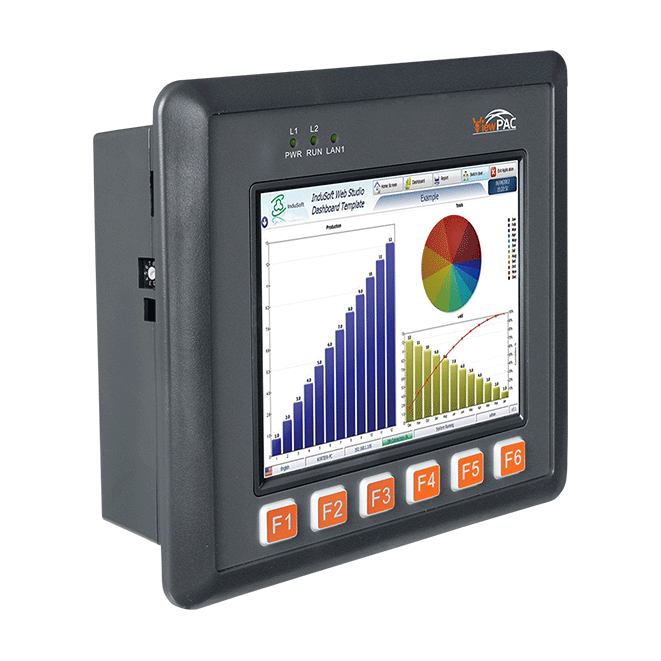

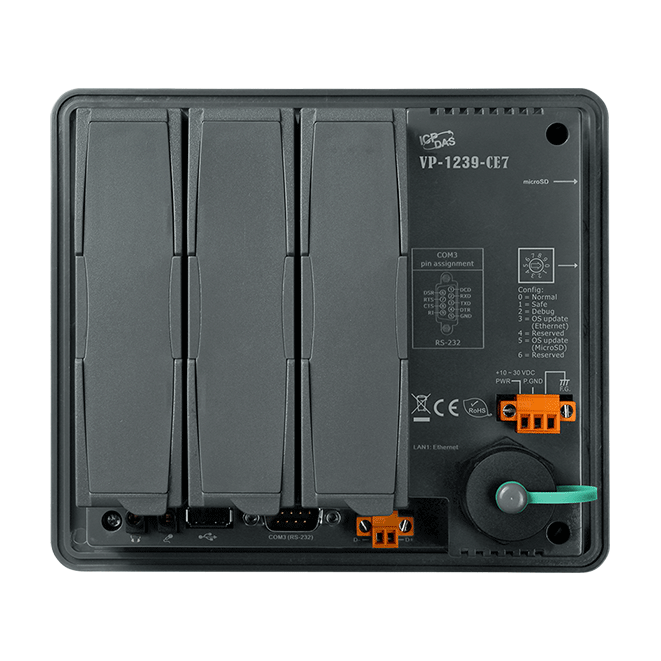

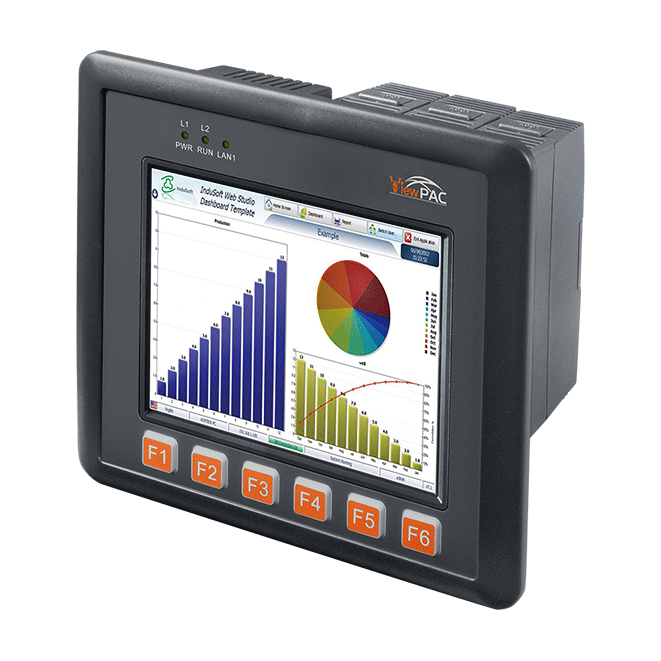

VP-1239-CE7
5.7" LCD InduSoft (300 tags) Based ViewPAC with 3 I/O slots
Features
- Cortex-A8 CPU (32-bit & 1 GHz)
- IP65 Compliant Front Panel
- 5.7"/10.4"/15" TFT LCD (5.7/10.4/15 LCDs are with Touch Panel)
- Rubber Keypad with 6 Keys
- Audio with MIC-In and Line-Out
- 64-bit Hardware Serial Number for Software Protection
- 3 Slots for High Profile I/O Modules
- Rich I/O Expansion Ability
- Ethernet
- RS-232/422/485
- FRnet
- CAN bus
- MRAM (128 KB)
- One Ethernet Port
- 2 Serial Ports (RS-232, RS-485)
- Operating Temperature: -20 ~ +70°C
Introduction
The XV484 is a 32-bit high-speed Counter/Frequency/Encoder input Expansion Board that offers a variety of mode options, including "Up Counter”, "Frequency Input", "Up/Down Counter", "Direct/Pulse Counter" and "A/B Phase Counter" modes. The mode combinations can be individual set for all 8 channels, where some channels can be set to “Up Counter” mode and other channels can be simultaneously set to “Frequency”, "Up/ Down Counter" or “Encoder input” mode. The built-in digital filter can filter out noise where the high/ low pulse width is smaller than the minimum high/low width of the digital filter.
Specifications
Isolation | |
Intra-module Isolation | 2000 VDC |
EMS Protection | |
ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
Relay Output | |
Channels | 4-channel Up/Down Counter (CW/CCW) 4-channel Dir/Pulse Counter (Bi-direction) 4-channel A/B Phase (Quadrant Counting) 8-channel Up Counter 8-channel Frequency |
Type | Counter, Frequency or Encoder, Wet Contact |
Sink/Source (NPN/PNP) | Sink |
Counter/Encoder Bits | 32-bit (4,294,967,295) |
ON Voltage Level | +5 VDC ~ +24 VDC |
OFF Voltage Level | +3 VDC Max |
Frequency Accuracy | 1 Hz ~ 200 kHz = ±0.025% of Input Frequency (Note1) 200 kHz ~ 1 MHz = ±0.1% of Input Frequency |
Individual Channel Configuration | Yes |
Counter Mode | Up or Up/Down |
Encoder Mode | CW/CCW, Dir/Pulse, AB Phase |
Frequency Mode | Yes |
Max. Speed | 1 MHz |
COM Ports | |
Ports | 1 x RS-232 |
Baud Rate | 115200 bps |
Data Format | N, 8, 1 |
Protocol | Modbus/RTU |
Power | |
Consumption | 1.2 W Max |
Powered from Terminal Block | 5 VDC |
Mechanical | |
Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
Environmental | |
Operating Temperature | -25 ~ +75°C |
Storage Temperature | -30 ~ +80°C |
Humidity | 10 ~ 90% RH, Non-condensing |
