Handheld HMI Interface with MiniOS7. IVIEW-100/40 is phased out.


Handheld HMI Interface with MiniOS7. IVIEW-100/40 is phased out.

    Item Not Available

References & Support


The IVIEW-100/40 has officially been phased out and will no longer be available. There is no replacement currently available. Please contact us if you need assistance.

The IVIEW-100, all-in-one pack, is a compact handheld HMI controller with low cost/high performance text/graphic LCD display; specially designed for industrial environments that require high reliability and PC-compatibility.

The iVIEW-100, CPU 40M Hz, is the basic type of iVIEW-100 series.

All-in-One Pack Solution

The IVIEW-100 has a built-in the Green STN LCD to display messages & bitmap pictures. We offer many user functions for you to show text, lines, boxes, icon & bitmap graphics.
You can show your messages on several pages.

The iVIEW-100 can show any local language like: Japanese, French, Russian, Italian, Chinese, and Indian. The feature of supporting bitmap graphic provides a local language solution. Any language can be shown in bitmap graphic files, on iVIEW-100's LCD.

8 lines LCD

The numeric membrane keypad is designed to input characters and numbers for IVIEW-100. You can design input-parameters into your program. So you can change the process without restarting controllers. There are 8 function keys & 4 arrow keys for the frequent functions setting.



One Programmable Buzzer
Users can make alarm noise and change its period and frequency. With different alarm noises, it can notice the user what the situation is and do some corresponsive responses.

Multiple IO & Protocol Solutions

The iVIEW-100 can connect up to 64 remote I/O modules, and combine host PC.

The iVIEW-100 can also be used as HMI devices for embedded controllers.

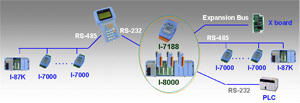

I-7000 & I-87K remote I/O
When needing more I/O, it provides several solutions combined with our
I-7188 and I-8000 remote I/O controllers to control more DI/O even with different protocols.
I-7188 & I-8000 I/O


  • Embedded CPU, 80188, 20/40M Hz
  • 512K SRAM & 512K Flash ROM
  • Built-in RTC & NVSRAM & EEPROM
  • Built-in 2 channels of COM port
  • COM driver support interrupt & 1K QUEUE
    input buffer
  • Built-in watchdog timer for harsh environment
  • Built-in power protection circuit
  • Built-in RS-485 network protection circuit
  • Support C language programming
  • Program download from PC
  • MiniOS7 inside
  • RTC leap year compensation to 2079
  • MiniOS7 support RTC time & date
  • 64-bit Hardware Unique Serial Number
  • Built-in LCD display
  • LED type yellow-green backlight
  • Full numeric membrane keypad
  • 4 digital input channels and 2 relay output channels(Can be jumper selected to 4 open collector output channels)
  • One buzzer inside



  • Module: Iview100 Handset Controller
  • CPU:Am188ES, 40 MHz
  • SRAM:256K bytes
  • FLASH:512K bytes
  • COM port: COM 1,2
  • Built-in EEPROM
  • Support I/O, Expansion Bus
  • Program download with COM 1
  • EEPROM: 2048 bytes
  • Data retention >100years
  • 1000000 erase/write cycles
  • Flash Memory: 256K bytes
  • Erase unit is one sector(64K bytes)
  • COM1 : RS-232  / MaxSpeed:115200
  • COM2 : RS-232orRS-485 / RS-485 : self-tuner  /MaxSpeed:115200
  • LCD:
    • 128 x 64 dots
    • VA:72 x 40mm
    • STN, Yellow Green
  • Backlight: LEDYellowGreen
