14-bit, 100 K sampling rate, 30/15-channel analog input module. Operating temperature Range: -25° to +75°C

I-9017

14-bit, 100 K sampling rate, 30/15-channel analog input module. Operating temperature Range: -25° to +75°C

  Price:  $649.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

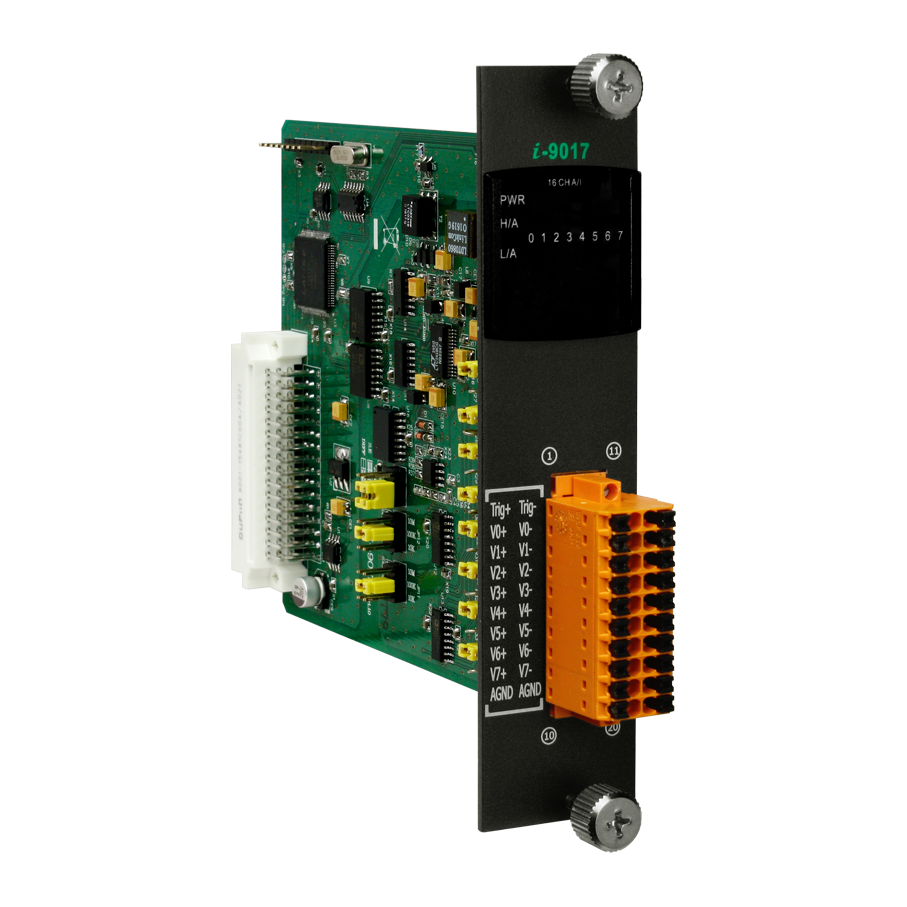

The I-9017 is an Analog Input module with 14 bits of resolution and a sampling rate of up to 100 kS/s. The I-9017 is designed to hold up to 16 single-ended or 8 differential input channels, which is selectable via a jumper setting. I-9017 has 4 kV ESD protection as well as 2500 Vrms intra-module isolation.

  • I-9017
  • 16 Single-ended/8 Differential Input Channels
  • Input Voltage Range : ±1.25 V, ±2.5 V, ±5 V, ±10 V
  • Input Current Range : 0 mA ~±20 mA
  • Input Impedance 20 K, 200 K, 20 M
  • 14-bit 100 KHz AD Converter
  • A/D Trigger Mode: Polling, Interrupt
  • 4 kV ESD Protection

Applications

  • High speed data acquisition system
  • Process monitor and control
  • Vibration analysis
  • Digital pattern generator from digital I/O port

Reference & Support

Specifications

LED Indicators

System LED Indict

1 LED as Power Indicator

I/O LED Indicator

16 LED as Status Indicator

Isolation

Intra-module Isolation, Field-to-Logic

2500 Vrms

EMS Protection

ESD (IEC 61000-4-2)

±4 kV Contact for each Terminal
±8 kV Air for Random Point

Power

Power Consumption

2 W Max.

Mechanical

Dimensions (L x W x H)

144 mm x 30.3 mm x 134 mm

Environment

Operating Temperature

-25°C ~ +75°C

Storage Temperature

-40°C ~ +85°C

Humidity

10 ~ 90% RH, non-condensing

I/O Specifications

Analog Input

Channels

16-ch Single-ended/8-ch Differential

Voltage Input Range

±1.25, ±2.5,
5 V, ±10 V

Current Input Range

-20 mA ~ +20 mA
(Requires Optional External 125 Ω Resistor)

Resolution

14-bit

Accuracy

±0.1% of FSR

Sample Rate

Single Channel Polling Mode :100K S/s
Single Channel Interrupt Mode: 50K S/s
15-channel Scan Mode : 16 K S/s

Input Bandwidth

100 KHz

Zero Drift

± 0.1 uV/°C

Span Drift

± 10 ppm/°C

Input Impedance

20 K, 200 K, 20 M (Jumper Selectable)
