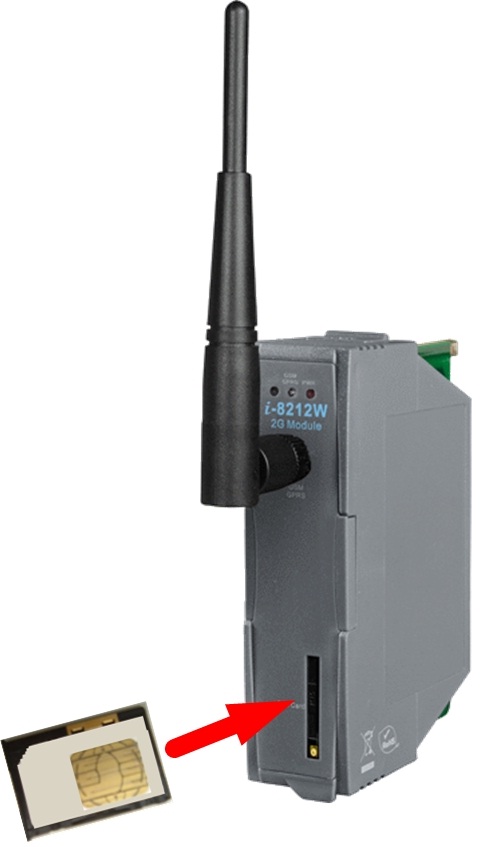

I-8212W
Industrial Quad-band 2G GSM/GPRS module. Supports operating temperatures from -25°C ~ +75°C
Features
The I-8212W/I-8213W are industrial Quad-band GSM/GPRS module with GPS function (only I-8213W) that work on frequencies of GSM 850 MHz, EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz. These modules utilize the GSM/GPRS network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. I-8212W/I-8213W have the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of I-8212W/I-8213W, the systems can be SMS and GPRS connection applications with our PAC series like iP-8000, WinPAC, LinPAC or XPAC.
Applications
Application 1
Application 2
Features
- Quad-band GSM/GPRS Modem Operating on 850/900/1800/1900 MHz
- 4 KV ESD Protection
- Designed for GPRS and SMS Applications
- Support TCP Server, TCP Client, UDP Client Connection from GPRS
- Support Standard AT Commands

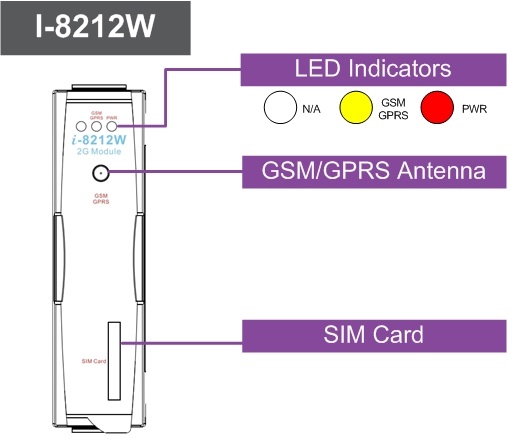

- LED Indicators for Power, GSM and GPS(only I-8213W) Indication
- High Reliability in Harsh Environment
- Support 32-channels GPS and NMEA v0183 v3.01(only I-8213W)
- PPS: 100 ms pulse output/sec for precise timekeeping and time measurement(only I-8213W)
- Support XP-8000, WinPAC-8000, LinPAC-8000, ViewPAC, iPAC-8000
Specifications
GSM/GPRS System |
|
GSM/GPRS Quad-band |
850/900/1800/1900 MHz |
GPRS Multi-slot |
Class 10/8 |
GPRS Mobile Station |
Class B |
GPRS Class 10 |
Max. download speed 85.6 kbps; Uplink transfer: Max 42.8 kbps |
CSD |
Up to 14.4 kbps |
Compliant to GSM Phase 2/2+ |
Class 4 (2 W @ 850/900 MHz); Class 1 (1 W @ 1800/1900 MHz) |
Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
SMS |
Text and PDU Mode |
GPS Interface |
|
Support Channels |
- |
Sensitivity |
- |
Acquisition Time |
- |
Protocol Support |
- |
LED Indicators |
|
Power |
Red color |
GSM/GPRS |
Yellow color |
GPS |
- |
Power |
|
Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
Power Consumption |
Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC |
Mechanical |
|
Casing |
Plastic |
Dimensions (W x L x H) |
30mm x 85mm x 114mm |
Environmental |
|
Operating Temperature |
-25°C ~ +75 °C |
Storage Temperature |
-30°C ~ +80 °C |
Ambient Relative Humidity |
5 ~ 95% RH, non-condensing |
Support PAC
Model | I-8212W / I-8213W |
WinPAC-8000(WinCE5.0) | V |
LinPAC-8000(Linux Kernel 2.6.19) | V |
iPAC-8000 Compact PAC (MiniOS 7) | V |
XP-8000 (Windows Embedded Standard 2009) | V |
