I-7045D-NPN

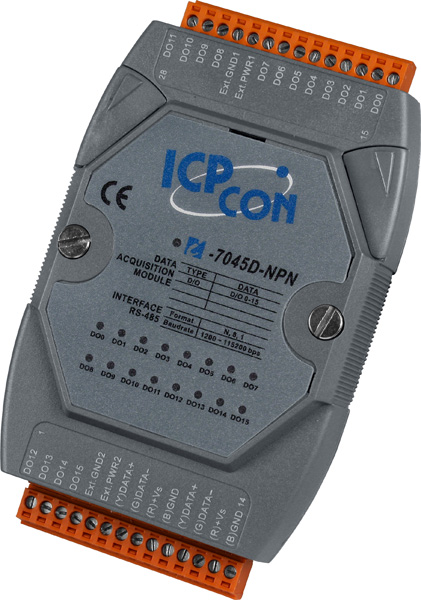

16-channel Sink Type Isolated Digital Output Module communicable over RS-485 and EZ Data Logger. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ +167°F).
Features
Introduction
I-7045-NPN offers 16 channels for digital output, each of which features Photo-couple isolation. I-7045-NPN supports sink type output with short-circuits protection. There are options for power on value and safe value for your consideration. I-7045D-NPN has 16 LED indicators for DO channel status. 4 kV ESD protection, 4 kV EFT protection, 3 kV Surge Protection for Power Input and 3750 VDC intra-module isolation are standard.
Application
- Industry automation
- Industrial Machinery
- Building Automation
- Food & Beverage
- Semiconductor Fabrication
- Control system
Specifications
Digital Output | |
Channels | 16, Sink(NPN) |
Output Voltage | +3.5 ~ +50 V |
Output Current | 700 mA per channel, Direct drive power relay module |
Intra-module Isolation, Field to Logic | 3750 VDC |
EFT Protection | ±4 kV to Power |
ESD Protection (IEC 61000-4-2) | ±4 kV Contact for each terminal, |
±8 kV Air for random point | |
Surge Protection | ±3 kV for Power Input. |
Overvoltage Protection | 60 VDC |
Overload Protection | Yes |
Short-circuit and Overcurrent Protection | 1.4 A |
Thermal Overload trip temperature | 150°C |
Intra-module Isolation, Field to Logic | 3750 Vrms |
Interface | |
Interface | RS-485 |
Format | N, 8, 1 |
Baud Rate | 1200 ~ 115200bps |
LED Display | |
1 LED as Power/ Communication indicator | |
16 LEDs as Digital Output indicators (for I-7045D-NPN) | |
Power | |
Input Voltage Range | 10 ~ 30 VDC |
Power Consumption | 0.4 W (I-7045-NPN)/1.2 W(I-7045D-NPN) |
Environment | |
Operating Temperature | -25 ~ 75°C |
Storage Temperature | -40 ~ 85°C |
Humidity | 5 ~ 95% RH, non-condensing |
