4G Multi Function Controller with GPS for transferring local I/O or Modbus device data via WDCMA/GPRS by defined period or DI/AI trigger.  With a simple I/O linkage function it can allow for real time control in the field. Replacement product for SMS-530.

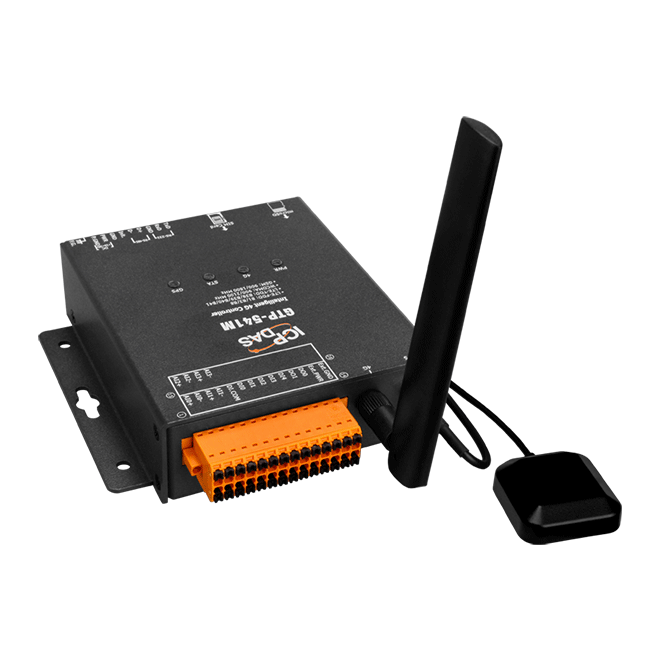

GTP-541M

4G Multi Function Controller with GPS for transferring local I/O or Modbus device data via WDCMA/GPRS by defined period or DI/AI trigger. With a simple I/O linkage function it can allow for real time control in the field. Replacement product for SMS-530.

  Price:  $1,269.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

GTP-541M Application The GTP-541M is an industrial smart 4G remote terminal device that is backward compatible with the 2G/3G frequency band and can be used with different software interfaces to meet user needs. 4G remote terminal equipment transmits I/O signals to the remote management platform through LTE/WCDMA/GPRS. ICP also provides related software support to facilitate customers to quickly establish monitoring programs. These softwares include VxServer. Virtual COM software such as VxComm. In addition, users can switch GTP-541M different functions such as ModBusSMS, DIOSMS and RMV through SD card replacement firmware to meet different application requirements. The powerful features of the GTP-541M reduce user development costs and time, making it ideal for IoT applications.

  • Support LTE-FDD Band B1/B3/B8
  • Support LTE-TDD Band B38/B39/B40/B41
  • Support WCDMA/HSPA+ Dual-band 900/2100 MHz
  • Support GSM/GPRS Dual-band 900/1800 MHz
  • 1 x RS-485 and 1 x RS-232 for general COM port
  • Power Reverse Polarity Protection
  • Power supply +10 VDC ~ +30 VDC
  • Intelligent 4G SMS alarm controller(SMS Function)
  • Intelligent 4G Modbus SMS alarm controller(SMS Function)
  • Serial to 4G Gateway

RoHS WEEE

Specifications

Software
Service
Virtual COM, RTU, SMS Alarm
CPU Module
CPU
ARM Cortex™ A5 processor
Storage Expansion
SD Card (Max. 32GB SDHC)
Real Time Clock
Provide seconds, minutes, hours, day of week/month, month and year
Watchdog Timer Yes
LED Indicators
Status
1 x PWR
1 x 4G
1 x STA
1 x GPS
2G System
Coding Schemes
CS 1, CS 2,CS 3,CS 4
CSD
GSM
Downlink transfer: Max. 14.4 kbps; Uplink transfer: Max. 14.4 kbps
Data Transmission Rate
GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 85.6kbps
Frequency Band
900/1800 MHz
GPRS Multi-slot
GPRS class 12; GPRS station class B
Power Class
Class 4 (2 W @ 900 MHz)
Class 1 (1 W @ 1800 MHz)
SMS Format
Sending: UCS2/7bits
Receiving: UCS2/7bits
3G System
Data Transmission Rate
DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band
WCDMA 900/2100 MHz
Power Class
Class 3(250mW @ WCDMA)
Data Transmission Rate
LTE(Cat.3)
Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50Mbps
Frequency Band FDD LTE : B1/B3/B8
TDD LTE : B38/B39/B40/B41
GPS
Protocol NMEA 0183
Support Channels 32
Analog Input
Channels 4
Type Voltage
Range +10V ~ -10V
Resolution 16-bit
Digital Input
Channels 5
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source, Isolated channel with common power or ground
ON Voltage Level +5V ~ +24V
OFF Volatage Level +1V Max
Digital Output
Channels 2
Load Voltage +24 VDC Max
Load Current 100mA Max
Digital Output
Ports 1 x RS-232/485, Non-isolated
Baud Rate 9600, 19200, 38400, 57600 and 115200 bps
Power
Consumption 4.8W ( 200 mA @ 24 VDC)
Mechanical
Casing Metal
Dimensions (mm) 113 x 125 x 34 (W x L x H)
Installation DIN-Rail/ Screw
Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 95% RH, Non-condensing
