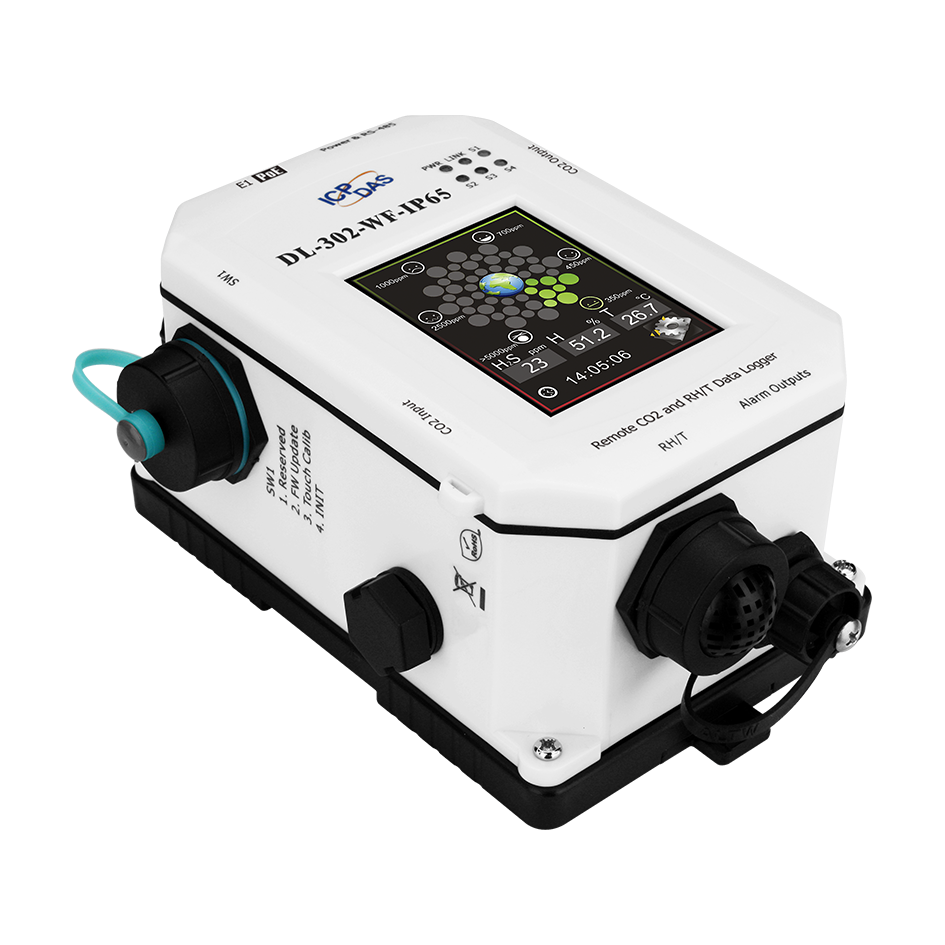

DL-302-WF-IP65
Remote CO2/Temperature/Humidity/Dew Point Data Logger with Ethernet/RS-485/Wi-Fi and PoE (RoHS)
Features
The DL-300-WF-IP65 series is a gas detector monitoring module with Wi-Fi, Ethernet and RS-485 interfaces. It provides a WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the modules make an easy way to incorporate wireless connectivity into monitoring and control systems. The DL-300-WF-IP65 series of Data Logger devices can be used to record CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300-WF-IP65 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the data Logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP. For Ethernet interface, It also support the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol - MQTT. The DL-300-WF-IP65 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet, PoE and Wi-Fi, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The IP65 version of DL-300-WF-IP65 series is designed for industrial applications in harsh environments that provides IP65 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.
- Able to record CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Humidity, and Dew Point Measurements
- Non-dispersive Infrared (NDIR) CO2 Sensor
- 2.8" LCD Touch Screen
- Up to 450,000 Records with Date and Time Stamps
- Touch-screen and Web-based Configuration Interface
- Simple and Powerful Software Utility, iOS App and Android App Included
- Able to Display Multilingual Messages on the Screen
- Supports the DCON, Modbus RTU and Modbus TCP Protocols
- Supports the MQTT Protocol for Ethernet Interface
- Includes RS-485/Ethernet/Wi-Fi Communication Interfaces
- Includes Redundant Power Inputs: PoE (IEEE 802.3af, Class 1) and DC Input
- Compatible with IEEE802.11b/g/n Standards
- Support Infrastructure and Limit-AP Modes for Wireless Networks
- Relay Output for Audible/Visual Alarm or Device Control
- Web-based configuration interface and firmware update via Ethernet
- IP 65 Protection Approval
Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level | Supports the MQTT Protocol for IoT Applications | |||||
![]() |
![]() |
|||||
![]() |
Multi-platform Remote Access Software Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger. |
|||||
![]() |
||||||
|
||||||
Real-time data from the DL-300-WF series can be accessed from anywhere and at any time using the WF-IIOT-Utility and iOS App. |
![]() |
|||||
|
Applications
Mushroom Farm
Mushroom growth yield requires long time to monitor the environment of CO2 concentration, temperature and humidity values, and its growth environment is high humidity condition. The general equipment cannot work in such environment, but the DL-302-WF-IP65 can be used to record CO2, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20?C to +50?C, and are able to store up to 450,000 downloadable records . The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and flexible. This does not require programming, only some simple settings will be able to achieve the farm production control and quality control, production resume ... and so on.
Pig Farm

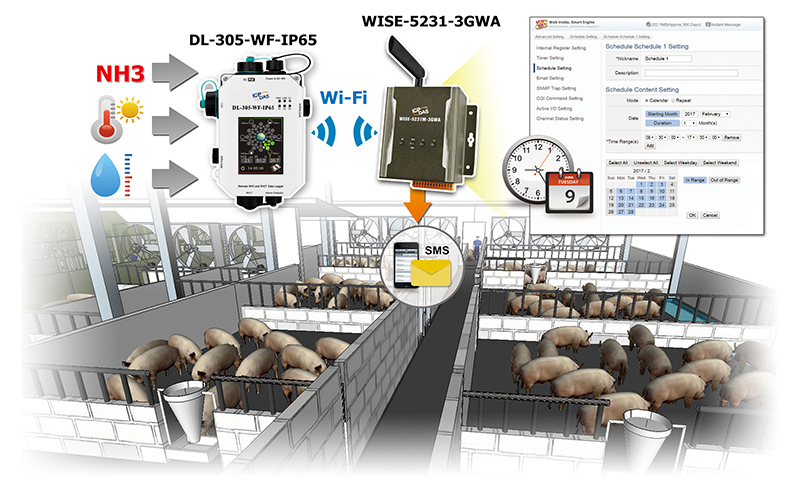

Ammonia and Hydrogen sulfide are two of the most harmful gases in animal farming environment. They will directly affect animals’ growth and immunity. Pig farm requires long-term immediate monitoring the environment of NH3 concentration, temperature and humidity values. The general equipment cannot work in such environment, but the DL-305-IP65 can be used to record NH3, temperature, humidity and dew point information with date and time stamps in the operating temperature from -20°C to +50°C, and are able to store up to 450,000 downloadable records. The WISE-5231-3GWA features timer and schedule functions. It allows user to schedule specific date or time for control logic execution, or perform specific tasks such as time delay. With calendar user interface provided, schedule setting can be more efficient and flexible. This does not require programming, only some simple settings will be able to achieve the farm production control and quality control, production resume ... and so on.
Specifications
System Specifications
System
CO Alarm
-
CO2 Alarm
Yes
HCHO Alarm
–
TVOC Alarm
–
NH3 Alarm
–
H2S Alarm
–
RH/Temperature Alarm
Yes
Real Time Clock
Yes
Data Logger
Yes, up to 450,000 records
Relay Output
PhotoMos Relay × 4, 100 VDC @ 1 A
Communication
RS-485 Port
Baud Rate = 1200 ~ 115200 bps
Ethernet Port
10/100 Base-TX, 8-Pin RJ-45 x1(Auto-negotiating, Auto-MDI/MDIX, LED indicators)
Security
IP filter (whitelist) and Password (web)
Protocol
Modbus/RTU(RS-485), Modbus TCP(Ethernet) and MQTT(Ethernet)
Dual Watchdog
Yes, Module (2.3 sec), Communication (Programmable)
Wi-Fi Interface
Antenna
Antenna = 1 dBi (PCB Antenna)
Output Power
18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM
Receive Sensitivity
-95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM
Standard Supported
IEEE 802.11 b/g/n
Wireless Mode
Infrastructure & Limited AP
Encryption
WEP, WPA and WPA2
Transmission Range
50 meters (LOS)
LED Indicators
PWR
Green for normal operation
Link
Green for the Ethernet-linked
S1 ~ S4
Red for an alarm condition
Main Machine Interface
LCD
2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3
Backlight Life
20,000 hours
Brightness
160 cd/m2
Touch Panel
Yes
Electrical
Powered from Terminal Block
+12 to +48 VDC
Powered from PoE
IEEE 802.3af, Class 1 (48 V)
Power Consumption
PoE : 3.5 W (Max.)
Non-PoE : 3.1 W (Max.)
Mechanical
Dimensions (W x L x H)
170 mm x 211 mm x 60 mm
Installation
DIN-Rail or Wall Mounting
Environment
Operating Temp.
-20°C ~ +50°C
Storage Temp.
-30°C ~ +75°C
Humidity
10 ~ 90% RH, non-condensing
Protection Class
IP65
I/O Specifications
CO Measurement
Range
-
Resolution
-
Accuracy
-
Response Time
-
Warm-up Time
-
CO2 Measurement
Range
0 to 9999 ppm (NDIR)
Resolution
1 ppm
Accuracy
±30 ppm ±3% of measured value
Response Time
20 sec
Warm-up Time
60 sec
HCHO Measurement
Range
-
Resolution
-
Accuracy
-
Response Time
-
Warm-up Time
-
TVOC Measurement
Range
-
Resolution
-
Accuracy
-
Response Time
-
Warm-up Time
-
NH3 Measurement
Range
-
Resolution
-
Accuracy
-
Response Time
-
Warm-up Time
-
H2S Measurement
Range
-
Resolution
-
Accuracy
-
Response Time
-
Warm-up Time
-
Temperature Measurement
Range
-20°C to +50°C
Resolution
0.1°C
Accuracy
±0.6°C
Relative Humidity Measurement
Range
0 to 100% RH, Non-condensing
Resolution
0.1% RH, Non-condensing
Accuracy
±5% RH, Non-condensing
Dew Point
Range
Calculated using temperature and relative humidity
Resolution
0.1°C
