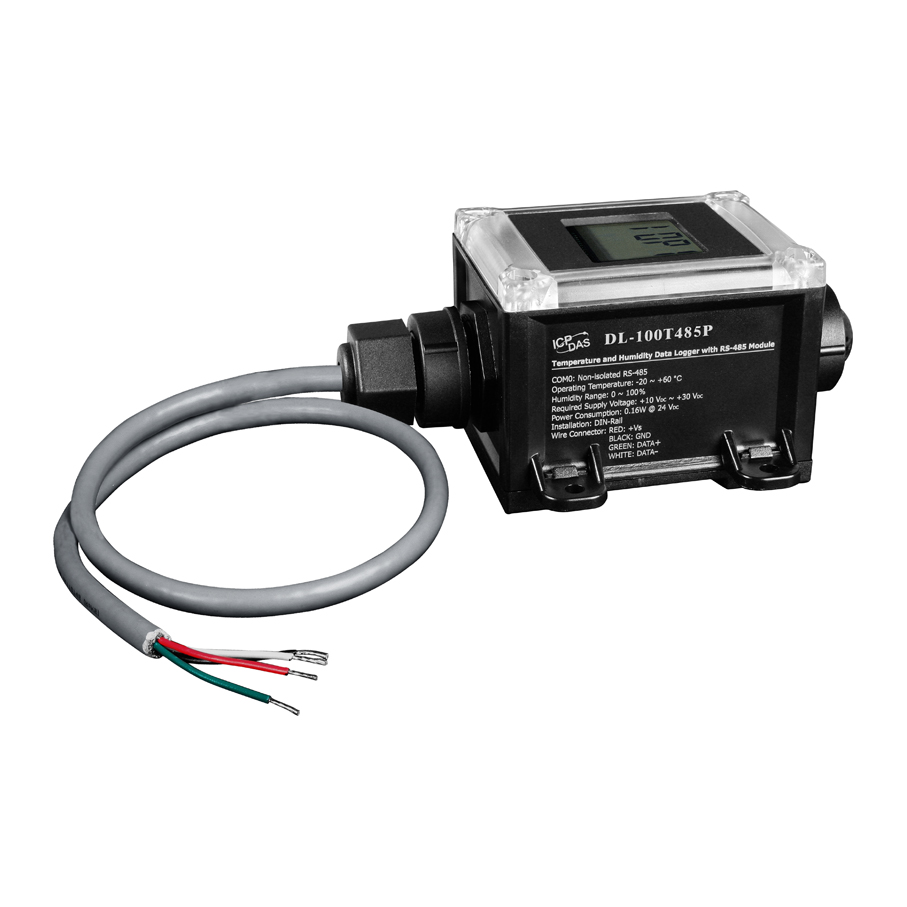

DL-100T485P
The DL-100T485P is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of temperature, humidity and module ID data. The data storage memory can store up to 4088 temperature and humidity records. The Data Logger Utility is included to allow installation, configuration, retrieval and display of data in a powerful chart format that can be exported to Excel.
References & Support
Features
The DL-100T485P is a temperature and humidity data logger module. It contains an RS-485 communication interface and an LCD display to show a variety of temperature, humidity and module ID data. The data storage memory can store up to 4088 temperature and humidity records.

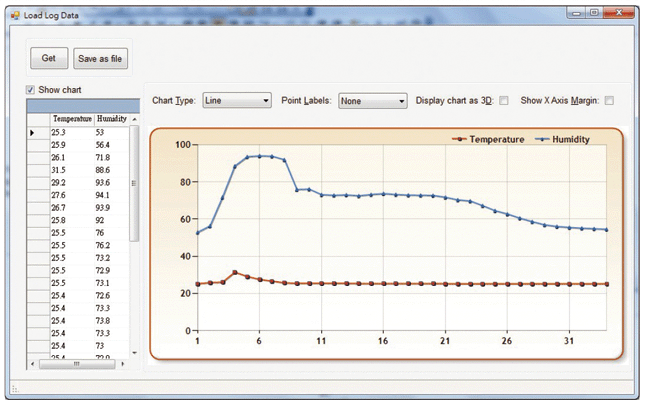

The Data Logger Utility is included to allow installation, configuration, retrieval and display of data in a powerful chart format that can be exported to Excel.
- Measurement Ranges: -20 ~ +60°C (-31 ~ +176°F) and 0 ~ 100% RH
- Accuracy: +/-0.4°C (±1°F) ; +/-3.0% RH
- Accuracy: +/-0.3°C (±1°F) ; +/-1.8% RH (For P-Version)

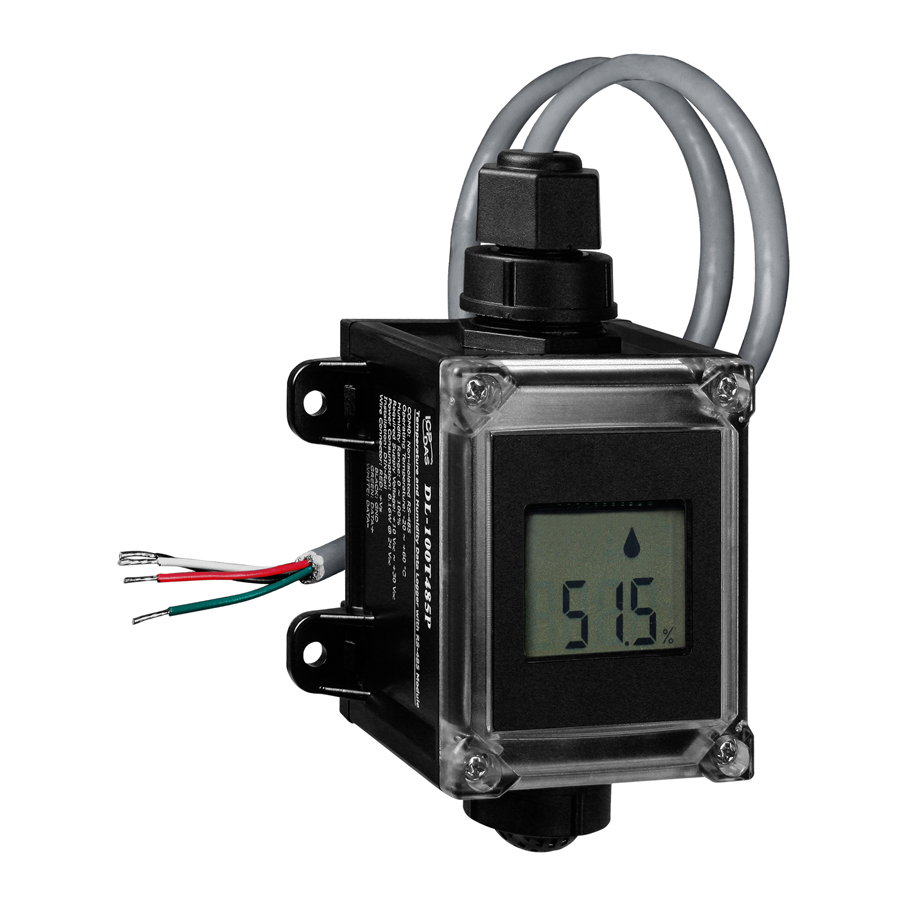

- LCD Display Shows Temperature, Humidity and Module ID
- +10 ~ +30 VDC Power Input
- IP66 Waterproof
- Data Logger Can Store Up to 4088 Temperature and Humidity Records
- RS-485 Communication interface
- DCON or Modbus RTU Protocol
- Windows Software Included

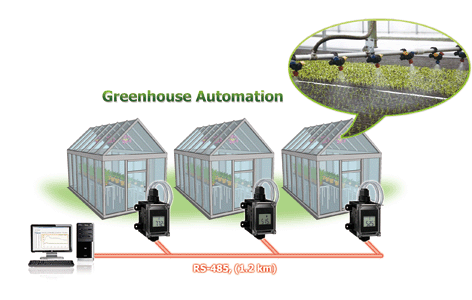

Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Warehouses
- Museums, archives, galleries
|
Specifications
Temperature Sensor | |
Measuring Range | -20 ~ +60°C (-31 ~ +176°F) |
Resolution | 0.1°C |

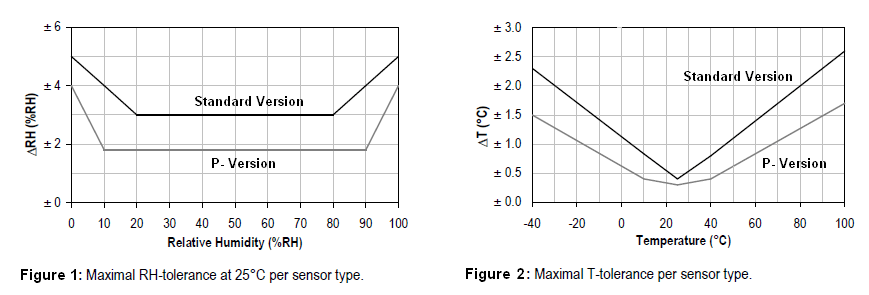

Accuracy | Typical: ±0.3°C; refer to figure 2 for details |
Humidity Sensor | |
Measuring Range | 0 ~ 100% RH |
Resolution | 0.1% RH |
Accuracy | Typical: ±1.8% RH @ 10 ~ 90% RH; refer to figure 1 for details |
LCD Display | |
Displayed Information | Temperature (°C and °F), Humidity (RH), Module ID |
Data Logger | |
Time Interval | 10 seconds to 1 day |
Max. Records | 4088 temperature and humidity records |
Mode | Overwrite or stop logging when storage space is full |
Overwrite Limitation | 1,000,000 cycles |
Communication | |
Interface | RS-485; non-isolated |
Baudrate | 1200 ~ 115200 bps |
Data format | N,8,1 |
Protocol | DCON |
Max. Modules on same bus | 32 |
Power | |
Input Range | +10 ~ 30 VDC |
Power Consumption | 0.15 W |
Mechanical | |
Dimensions (W x L x H) | 82 mm x 126 mm x 55 mm |
Waterproof Level | IP66 |
Installation | DIN-Rail; Wall mount |
Environment | |
Operating Temperature | -20 ~ +60°C |
Storage Temperature | -30 ~ +80°C |
Ambient Relative Humidity | 5 ~ 95% RH, Non-condensing |
