RS-485 Remote Temperature and Humidity (RoHS) Operating Temperature -20 ~ +60°C.  Communicable over Modbus RTU.

DL-10

RS-485 Remote Temperature and Humidity (RoHS) Operating Temperature -20 ~ +60°C. Communicable over Modbus RTU.

  Price:  $79.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.
ADD TO CART
ADD TO CART
BUY BY 1-CLICK

Features

The DL-10 is a RS-485 remote temperature, humidity and dew point module that gives you real time temperature, humidity and dew point information at the same time. It contains an RS-485 communication interface and an sensor for measuring temperature, humidity and dew point.

The DL-10 module supports Modbus RTU communication protocol for getting measured temperature, humidity and dew point values. DCON Utility Pro provides easy and convenient interfaces for users to confi gure the module. Based on an amazing tiny form-factor, the DL-10 achieves the maximum space savings that allows it to be easily installed anywhere.

  • Measurement Ranges: -20 ~ +60°C and 0 ~ 100% RH
  • Accuracy: ±0.4°C; ±3.0% RH
  • 10 ~ 30 VDC Power Input
  • RS-485 Communication interface
  • Modbus RTU Protocol
DL-10 application

Applications

  • Transportation of food or pharmaceuticals
  • Food and beverage industry (HACCP)
  • Blood stations, pharmacies
  • Building and energy management
  • Warehouses
  • Museums, archives, galleries

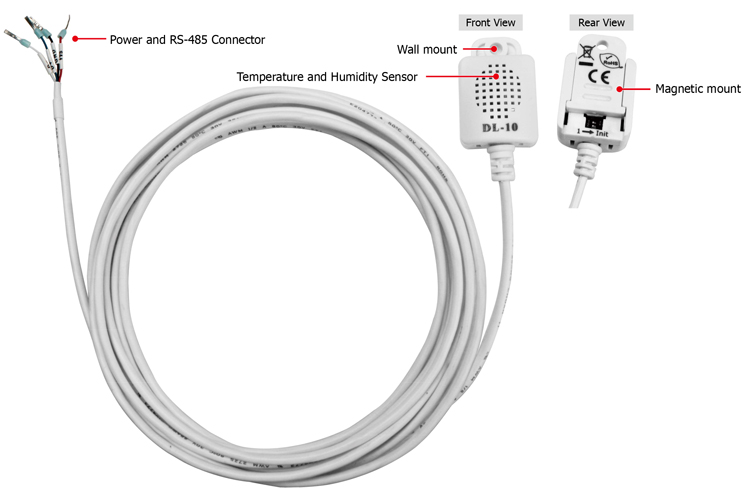

Appearance

DL-10 application

CE FCC RoHS WEEE

Specifications

Temperature Sensor

Measuring Range

-20 ~ +60°C (-31 ~ +176°F)

Resolution

0.1°C

Accuracy

Typical: +/-0.4°C; refer to figure 2

Precision

+/- 0.1°C

Humidity Sensor

Measuring Range

10 ~ 95% RH

Resolution

0.1% RH

Accuracy

Typical: +/-3% RH @ 20 ~ 80% RH; refer to figure 1

Precision

+/- 0.1% RH

LCD Display

Displayed Information

-

Data Logger

Time Interval

-

Max. Records

-

Mode

-

Overwrite Limitation

-

Communication

Interface

RS-485; non-isolated

Baudrate

1200 ~ 115200 bps

Data format

N,8,1

Protocol

Modbus RTU

Max. Modules on same bus

32

Power

Input Range

+10 ~ +30 VDC

Power Consumption

0.05 W

Mechanical

Dimensions (W x L x H)

25 mm X 20.2 mm X 30 mm

Waterproof Level

-

Installation

Magnetic mount; Wall mount

Environment

Operating Temperature

-20 ~ +60°C

Storage Temperature

-30 ~ +80°C

Ambient Relative Humidity

10 ~ 95% RH, Non-condensing
