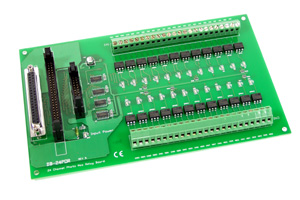

DB-24POR/DIN (with DIN-Rail mounting kit)

The DB-24POR has 24 channels of optically isolated Photo-Mos Relay , and OPTO-22 compatible connector.

• 24 Photo Mos Relay
• One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
• Connects directly to OPTO-22 compatible board or any 722,724 series board
• LED’s indicated relay status
• Screw terminals for easy field wiring
• 5,000Vdc optical isolation

Specifications

• PhotoMos Relay
• Turn-on time :0.7ms (typical)
• Turn-off time: 0.05ms (typical)
• Output On resistance : 23 ohm (typical)
• Load voltage : 350V (peak AC)
• Power dissipation : 500mW
• Countinuous load current : 0.13A
• Power Consumption : +5V @0.3A max
• Dimension : 213mm x 132mm
• Operating Temperature : 0 -60°C
• Storage Temperature : -20~70°C
• Humidity : 5% to 90 % noncondensing

Applications

• On/off control
• Energy management
• Test Automation
• Process Control
