High Gain 15 dBi 2.4 GHz Directional antenna for outdoor environments.  Supports communication distances up to 2 km.  For use with zigbee and RF wireless products.  Supports temperatures between -40 to 80 C

ANT-15YG-1

High Gain 15 dBi 2.4 GHz Directional antenna for outdoor environments. Supports communication distances up to 2 km. For use with zigbee and RF wireless products. Supports temperatures between -40 to 80 C

  Price:  $259.00

Fastest Delivery: (Details) X Delivery Details
We ship via UPS and fastest delivery is with Next Day Air. UPS Next Day Air Early typically gets their product to them as early as 8am, Next Day Air gets their product typically there by 10:30am and Next Day Air Saver typically by 3pm. We ship same day for in stock items and the lead time is up to one week for out of stock items. Delivery is dependent on UPS and your shipping method.

Features

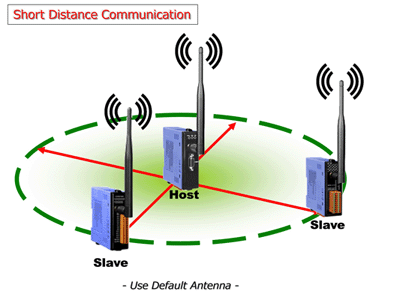

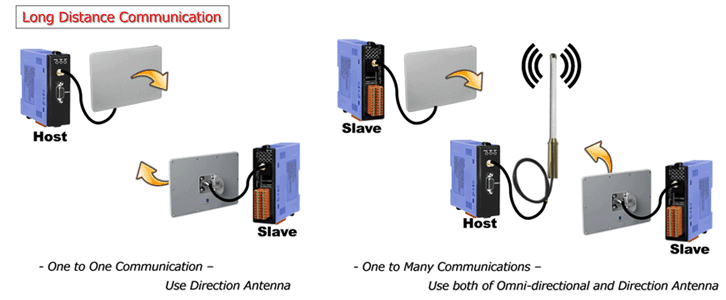

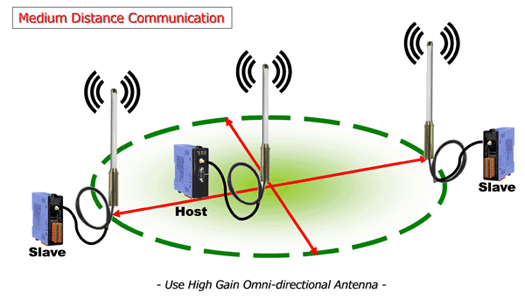

Applications:

Reference & Support

Specifications

  • Gain: 15dBi
  • VSWR : 1.5 Max
  • Polarization: Linear
  • Power handling: 15W
  • Impedance: 50 Ohms
  • Connector: N Type Female
  • Cable: RG-58, 100 cm

Antenna Type

Operating Environment Outdoor
Radiation Directional Sector

Electrical Specification

Frequency 2.4 ~ 2.5GHz
Gain 15 dBi
VSWR 1 : 1.5 (Max.)
Polarization Linear
HPBW/Horizontal 25°
HPBW/Vertical 15°
Power Handling 15 W (Max.)
Impedance 50 Ω
Cable RG-58, 100 cm
Connector N Type Female

Environmental and Mechanical Characteristics

Operating Temparture -40 ~ +80°C
Radome Material Aluminum
Weight 570 g

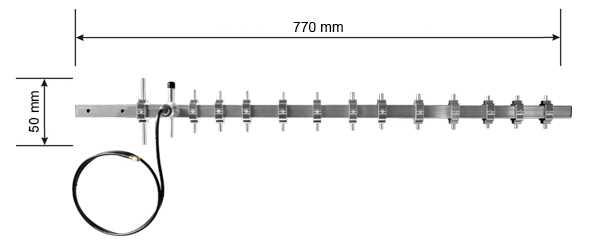

Dimensions (L x W) 770 mm x 50 mm x 45 mm

Ordering Information

ANT-15YG-1 5 km, 2.4 GHz External Antenna (Directional)

Important Note: Distance data is for reference only. Actual results may be different depending on the environment>.

Accessories

3S005 HDF 200 cable, 3 meter long N type male to RP-SMA male
3S001-1 RG58A/U 1 Meter Long SMA male to RP-SMA male
