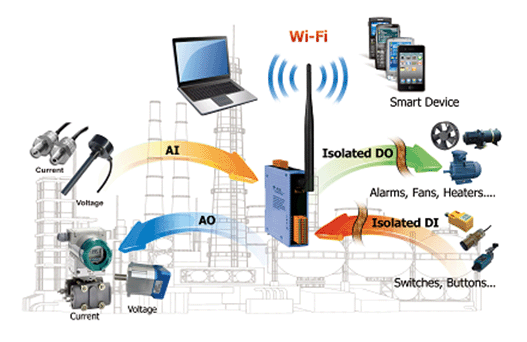

New Product: WF-2026 Wi-Fi I/O 5-Channel Analog Input, 2-Channel Analog Output, 2-Channel Digital Input and 3-Channel Digital Output The WF-2026 is a multifunction module with Wi-Fi interface that includes 5 analog input channels, 2 analog output channels, 2 digital input channels and 3 digital output channels. It provides a programmable input range on all analog input (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA or 0 to +20 mA) and output range on all analog output (12-bit at +/-5 V, +/-10 V, 0 to +20 mA or +4 to +20 mA). Each analog input and output channel can be configured for an individual range and provides a high overvoltage protection of 240 Vrms. Analog Input and output can be jumper selectable as either voltage or current.

With the popularity of 802.11 network infrastructure, the WF-2026 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2026 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

Features:

Multifunction (5 AI, 2 AO, 2 DI and 3 DO)
Individual Channel Configuration
Jumper Selectable Voltage or Current Input/Output
Configurable Power-on and Safe Value Settings
Compatible with IEEE 802.11b/g standards
Support WEP, WPA and WPA2 wireless encryption
Support Modbus/TCP and UDP protocols
Support DHCP network configuration
Overload and Short Circuit Protection for Digital Output
240 Vrms Overvoltage Protection for Voltage Input
±4 kV Contact ESD Protection
Built-in Watchdog

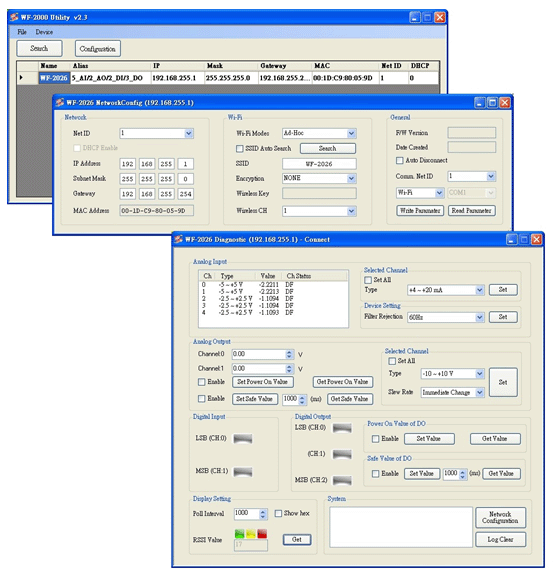

Utility Feature:

Provide automatic search functionality
Provide Analog / Digital Input and Output monitor and configuration interfaces
Provide wireless encryption configuration

ICP DAS Wi-Fi Digital I/O Products Table

Module		WF-2017 ~ NEW ~	WF-2019 ~ NEW ~	WF-2026 ~ NEW ~
I/O Type		Analog Input	Analog Input	Multi Function
DI	Channel	-	-	2
	Type	-	-	Dry
	Sink/Source	-	-	Source
DO	Channel	-	-	3
	Type	-	-	Open Collector
	Sink/Source	-	-	Sink
AI	Channel	8/16	10	5
	Wiring	Differential/ Single-Ended	Differential	Differential
	Voltage & Current Input	+/-10 V, +/-5 V, +/-1 V, +/-500 mV, +/-150 mV, +4 ~ +20 mA, 0 to +20 mA, -20 mA to +20 mA	±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V ±20 mA,	±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V ±20 mA , +0 to +20 mA, +4 to +20 mA
	Sensor Input	-	Thermocouple : J, K, T, E, R, S, B, N, C	-
AO	Channel	-	-	2
AO	Voltage & Current Output	-	-	+0 to +5 VDC, +0 to +10 VDC, ±5 VDC, ±10 VDC, +0 to +20 mA, +4 to+20 mA

For more information about the product, please refer to the following website: http://m2m.icpdas.com/WF-2026.html
Related Wireless products: http://m2m.icpdas.com/product.html

Ordering Information

WF-2026 CR

5-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 3-channel Digital Output Wi-Fi I/O Module (RoHS)
