New Product - WF-2042

LeftATX West 2015 - ICP DAS Exhibits at ATX WESt 2015 Tradeshow | New Product - WF-2026Left

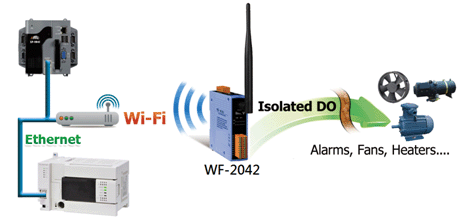

The WF-2042, one member of ICP DAS WF-2000 Wi-Fi product family, is a 16-channel isolated digital output module. WF-2042 in WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2042 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2042 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

  • Compatible with IEEE 802.11b/g standards
  • Support infrastructure and ad hoc modes for wireless networks
  • Support sink type digital outputs
  • Support WEP, WPA and WPA2 wireless encryption
  • Support Modbus/TCP and UDP protocols
  • Support DHCP network configuration
  • Support Pair Connection mode
  • Wide Operating Temperature Range
  • Built-in Watchdog
  • 4 kV ESD Protection

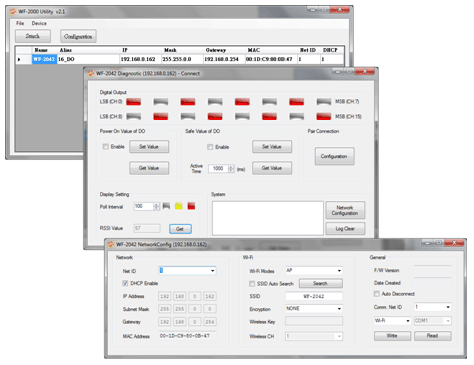

Utility Feature:
  • Provide automatic search functionality
  • Provide Input and output signals monitor and configuration screen
  • Provide wireless encryption configuration
ICP DAS Wi-Fi Digital I/O Products Table
Module WF-2055
~ NEW ~
~ NEW ~
~ NEW ~
~ NEW ~
I/O Type Digital Input & Output Digital Input & Relay Output Digital Output Digital Input
DI Channel 8 6 16 16
Type Dry, Wet Dry, Wet - Dry, Wet
Sink/Source Sink, Source Sink, Source - Sink, Source
DO Channel 8 - 8 -
Type Open Collector - Open Collector -
Sink/Source Sink - Sink -
Relay Output Channel - 6 - -
Relay - Power Relay - -
Type - Form A (SPST-NO) - -
Max. Load Current - 5.0A/channel - -
For more information about the product, please refer to the following website:
Related Wireless products:
Ordering Information
WF-2042 CR Wi-Fi I/O Module with 16-channel Isolated Digital Output (RoHS)
