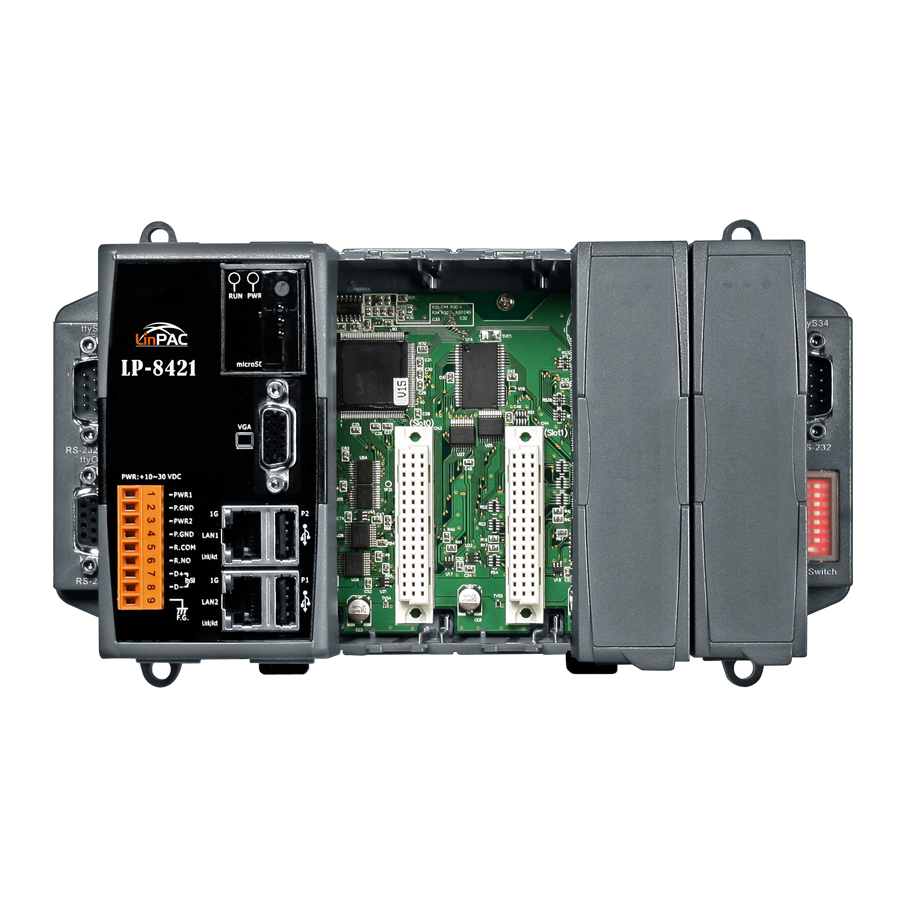

LP-8421
Linux Controller with Dual 10/100 Base-TX Ethernet Ports and 4 I/O slots and Linux Operating System. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ 167°F). Replacement for LP-8441.
Features
The LinPac-8000 series is a user-friendly, high quality control system designed with the Linux users in mind. The Linux-based PAC (Programmable Automation Controller) is equipped with Cortex-A8 1.0 GHz running a Linux kernel 3.2.14 operation system, multiple communication interfaces (VGA, USB, Ethernet and RS-232/485) and 4 slots for high performance parallel I/O modules (high profi le I-8K series) and serial I/O modules (high profile I-87K series). It is open source and uses the standard LinPAC SDK for Windows and Linux using the GNU C language, JAVA and GUI software
- Linux kernel 3.2.14 Inside
- Cortex-A8 (1.0 GHz)
- Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
- 64-bit Hardware Serial Number
- Rich I/O Expansion Ability: RS-232/RS-485, USB, FRnet, CAN
- Redundant Power Inputs
- Operating Temperature: -25 ~ +75 °C
Applications
Specifications
System software
OS
Linux kernel 3.2.14 Inside
Embedded Service
Web Server, FTP Server, Telnet Server, SSH Server
SDK Provided
Standard LinPAC SDK for Windows and Linux by GNU C language
CPU Module
CPU
Cortex-A8 (1.0 GHz)
SDRAM
512 MB DDR3
MRAM
128 KB
Flash
512 MB
EEPROM
16 KB
microSD
microSD slot with one microSD card (support up to 32 GB)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number
Yes, for Software Copy Protection
Dual Watchdog Timers
Yes
Programmable LED Indicator
1
Rotary Switch
Yes (0 ~ 9)
DIP Switch
Yes (8 bits)
VGA & Communication Ports
VGA
800 x 600
Ethernet Port
RJ-45 x 2, 10/100/1000M Base-T
USB 2.0
2
ttyO4
Internal communication with the high profile I-87K series modules in slots
ttyO5
RS-232 (RxD, TxD and GND); Non-isolation
ttyS0
RS-485 (Data+, Data-);self-tuner ASIC inside; 3000 VDC isolated
ttyS1
RS-232/485 (RxD, TxD, CTS, RTS and GND for RS-232; Data+, Data- for RS-485); Non-isolation
ttyS34
RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation
I/O Expansion Slots
4
Mechanical
Dimensions (W x L x H)
231 mm x 132 mm x 111 mm
Installation
DIN-Rail or Wall Mounting
Environmental
Operating Temperature
-25°C ~ +75°C
Storage Temperature
-30°C ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH (non-condensing)
Power
Input Range
+10 VDC ~ +30 VDC
Isolation
1 kV
Redundant Power Input
Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity
1.1A, 5V supply to CPU and backplane, 4.9A, 5V supply to I/O expansion slots, total 30 W
Consumption
9.1 W (0.38 A @ 24 VDC)
